Vari Lite VL3000 - Page 101

HEAD ASSEMBLY : BACKEND ASSEMBLY
02.9678.0010 F 81
3

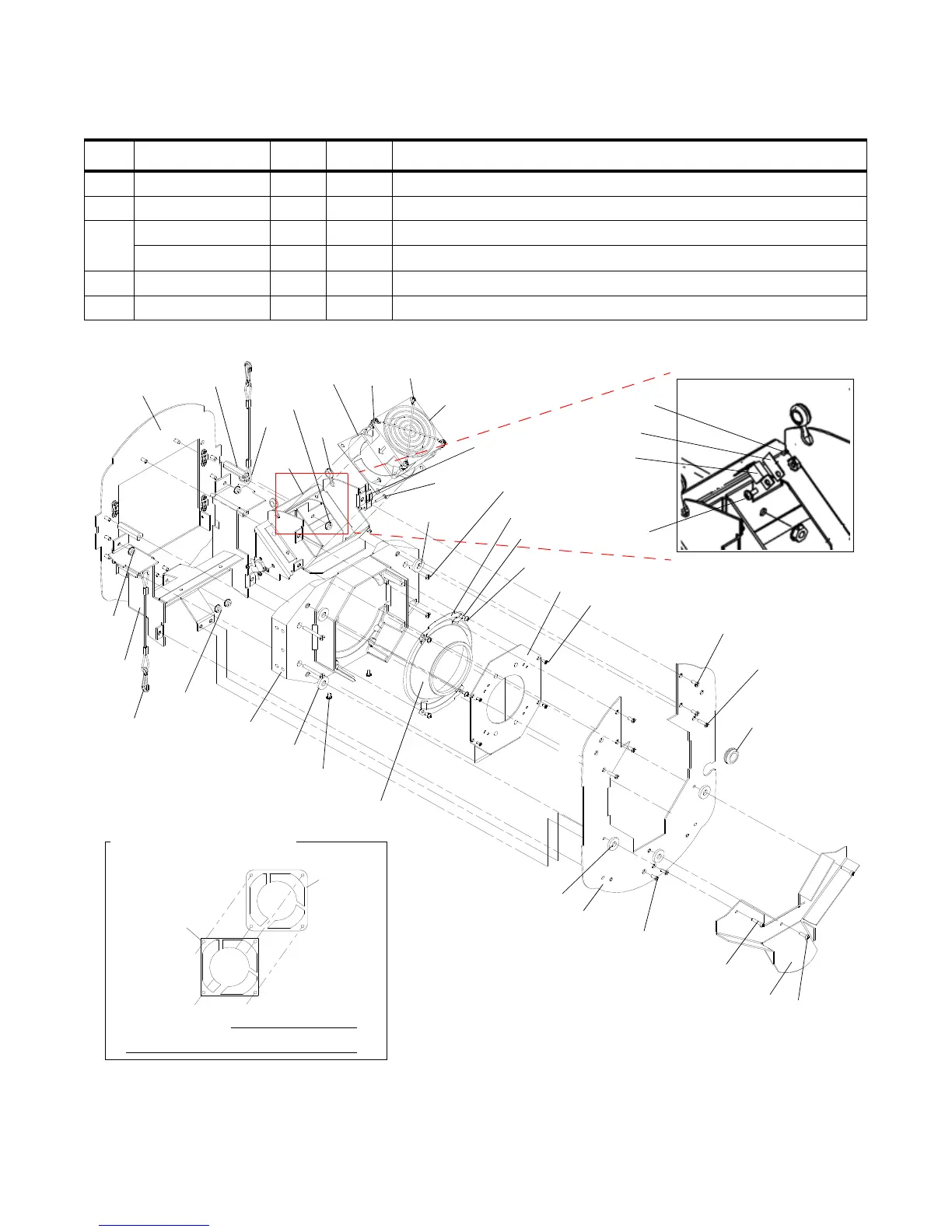

Figure 3-3: Backend Assembly
28 53.6613.0004 3 EA SCREW, 6-32 X 1/2" SCZ (added 07-18-03)
29 10.9678.1645 1 EA FAN SHIELD, LAMP COOLING (added 12-09-04)
30 25.9678.0691 1 EA CABLE ASSY, AIR DUCT OT SWITCH (cable not shown)
25.9678.0690 1 EA CABLE ASSY, AIR DUCT OT SWITCH, VL3000 QUIET (cable not shown)
31 10.9678.0680 1 EA INSULATOR, TEFLON, TO-220
32 53.2200.0004 1 EA NUT, 4-40 KEPS
No. Item Qty. UM. Description
1
2
3 (x2)
4
5
6
7
8
9 (x2)
11
10
12 (x2)
13 (x2)
16 (x4)
14 (x4)
15
17 (x4)
18 (x4)
28 (x3)
20 (x2)
23 (x4)
22
24 (x2)
24 (x4)
25
26
27
12 (x2)
12 (x2)
16 (x2)
18 (x2)
21 (x2)
24 (x4)
24 (x3)
26 (x2)
19
Shield Orientation:
80 mm Fan Shield Orientation
Shield must mimic and cover fan housing.
Fan
Fan
Assembly
Shield
29
22
30
31
32
