VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
128 02.9678.0010 F
Cyan Wheel Assembly
22.9678.0472 Rev C
Refer to Figure 3-39

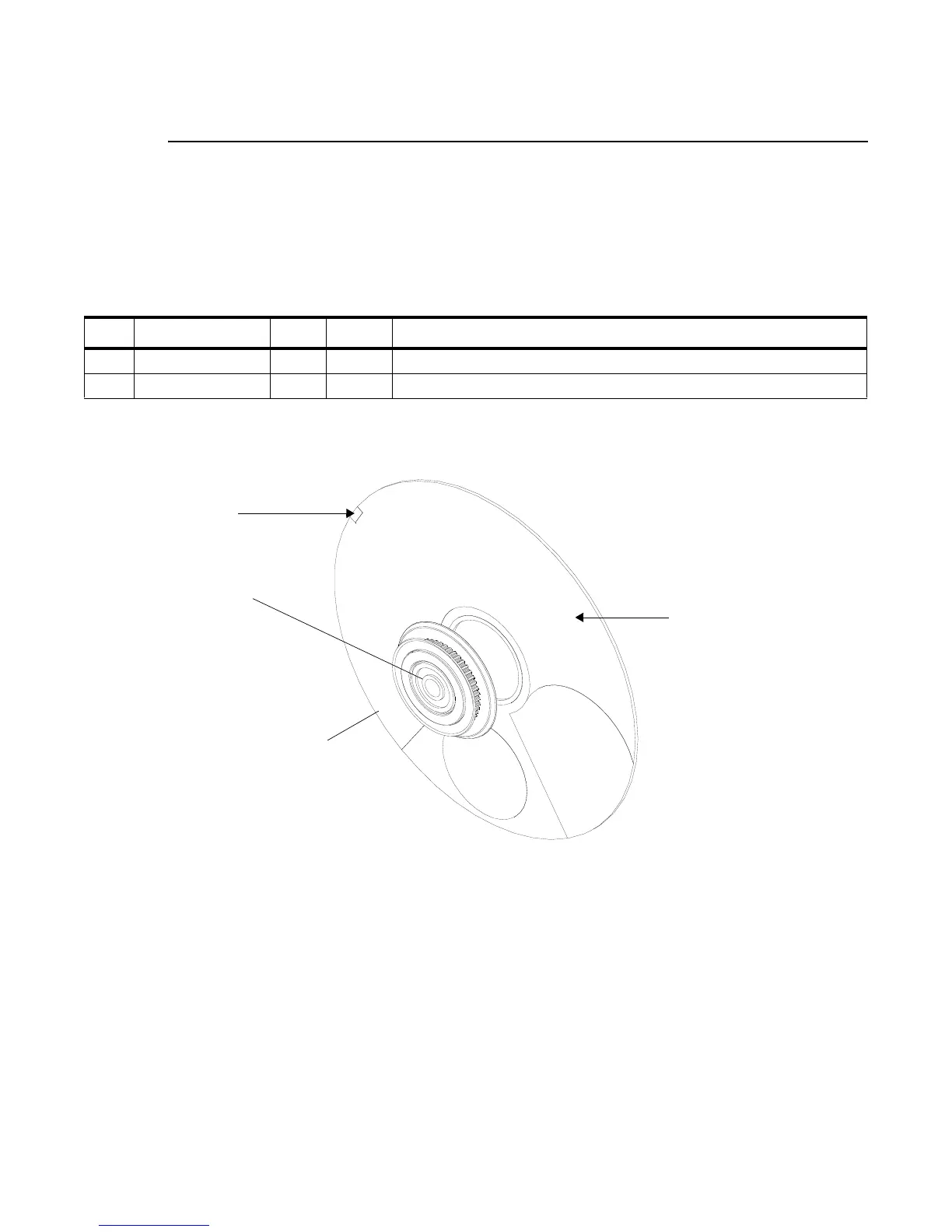

Figure 3-39: Cyan Wheel Assembly
No. Item Qty. UM. Description
1 22.9678.0420 1 EA PULLEY ASSY, WITH BEARING
2 41.9678.0471 1 EA GLASS, CYAN COLOR WHEEL
Painted Timing Mark
1
2
Dichroic Coated Side
(Dichroic Coated Side Only)
