Vari Lite VL3000 - Color Clamp Assembly

HEAD ASSEMBLY : COLOR CLAMP ASSEMBLY
02.9678.0010 F 133
3
Color Clamp Assembly
22.9678.0694 Rev A
Refer to Figure 3-44

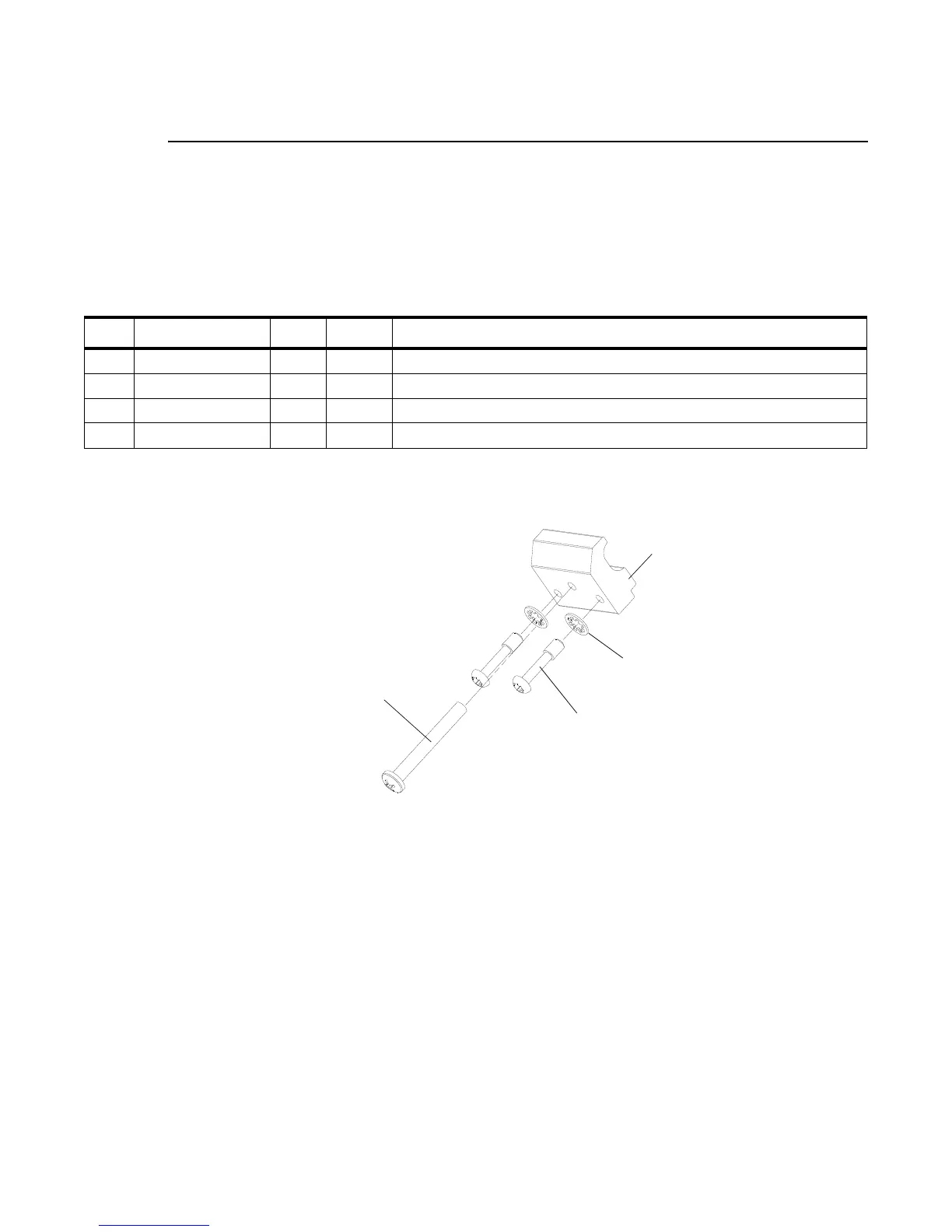

Figure 3-44: Color Clamp Assembly
No. Item Qty. UM. Description
1 12.9678.0692 1 EA COLOR CLAMP
2 53.6685.0625 2 EA SCREW, CAPTIVE PANEL, 6-32 X .625"LG PPS ZINC PLATED
3 55.6538.0001 2 EA WASHER, #6 LOCK INTERNAL TOOTH
4 53.6613.1126 1 EA SCREW, 6-32 X 1.125 LG PPZ
1
2 (x2)
3 (x2)
4
