Vari Lite VL3000 - Motor;Adapter Plate Assembly

HEAD ASSEMBLY : MOTOR/ADAPTER PLATE ASSEMBLY
02.9678.0010 F 119
3
Motor/Adapter Plate Assembly
21.9678.0331 Rev 0
Refer to Figure 3-31

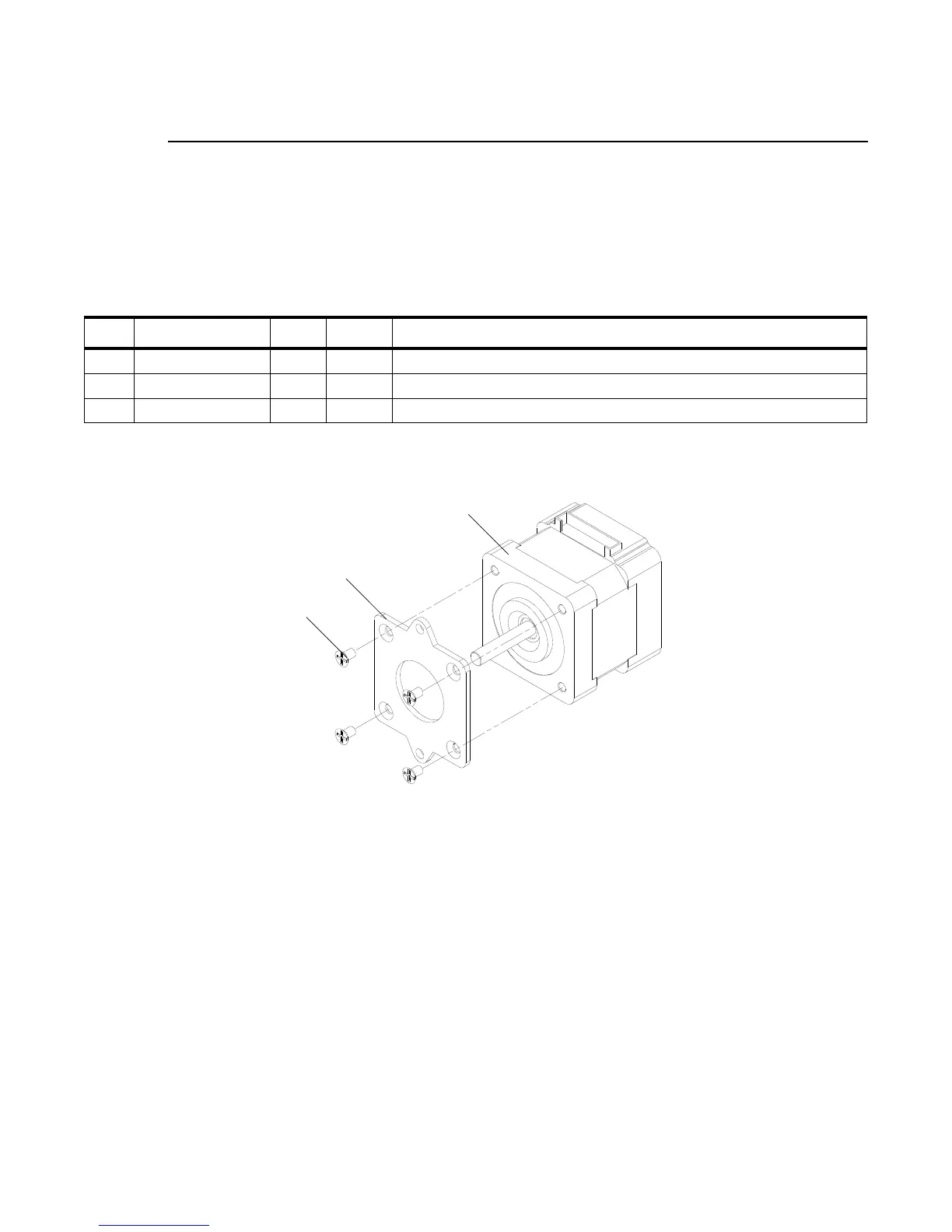

Figure 3-31: Motor/Adapter Plate Assembly
No. Item Qty. UM. Description
1 10.9678.0330 1 EA PLATE, MOTOR ADAPTER
2 44.5031.0001 1 EA MOTOR, STEPPER 42MM X 40MM,10
3 53.6513.0002 4 EA SCREW, 3MM X 5MM LG PFZ METR
1
2
3 (x4)
