YOKE ASSEMBLY : YOKE FAN ASSEMBLY
02.9678.0010 F 145
3
Yoke Fan Assembly
22.9661.0609 Rev C
22.9678.0609 Rev A (VL3000 Quiet)
Refer to Figure 3-55

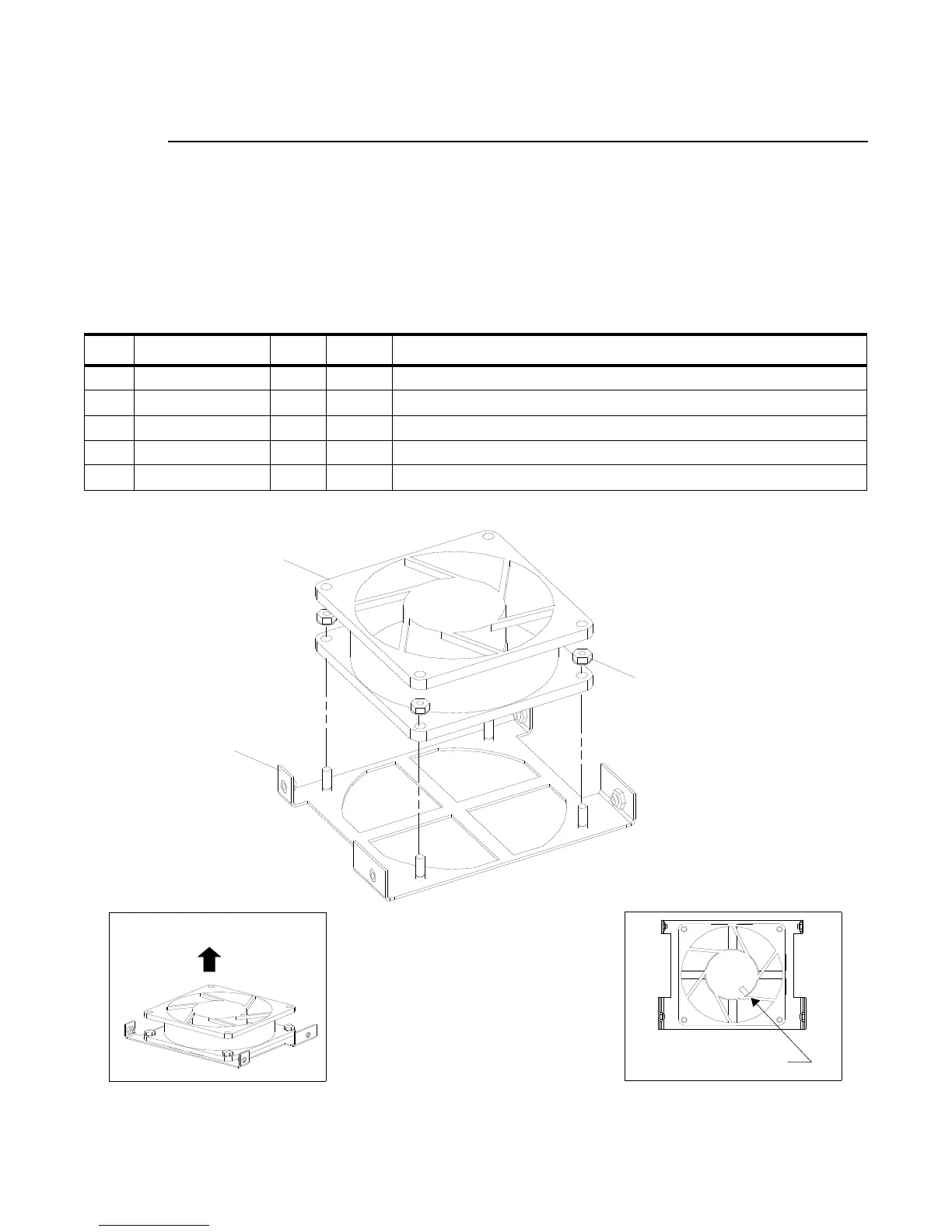

Figure 3-55: Yoke Fan Assembly
No. Item Qty. UM. Description
1 10.9661.0646 1 EA FAN TRAY
2 40.7113.0001 1 EA FAN, +24V 80 X 80 X 25MM, 32CFM
3 53.2200.0006 1 EA NUT, 6-32 KEPS SS
4 55.2179.0003 1 EA CABLE SADDLE, .75 X .75 4WAY, VL3000 QUIET
(NOT SHOWN)
5 55.2186.0001 1 EA CABLE TIE, .10 WD X 4" LG, VL3000 QUIET (NOT SHOWN)
1
2
3
Direction of air flow
Wire Connection Orientation
