Vari Lite VL3000 - Long Shaft Motor Assembly

HEAD ASSEMBLY : LONG SHAFT MOTOR ASSEMBLY
02.9678.0010 F 89
3
Long Shaft Motor Assembly
21.9678.0243 Rev 0
Refer to Figure 3-9

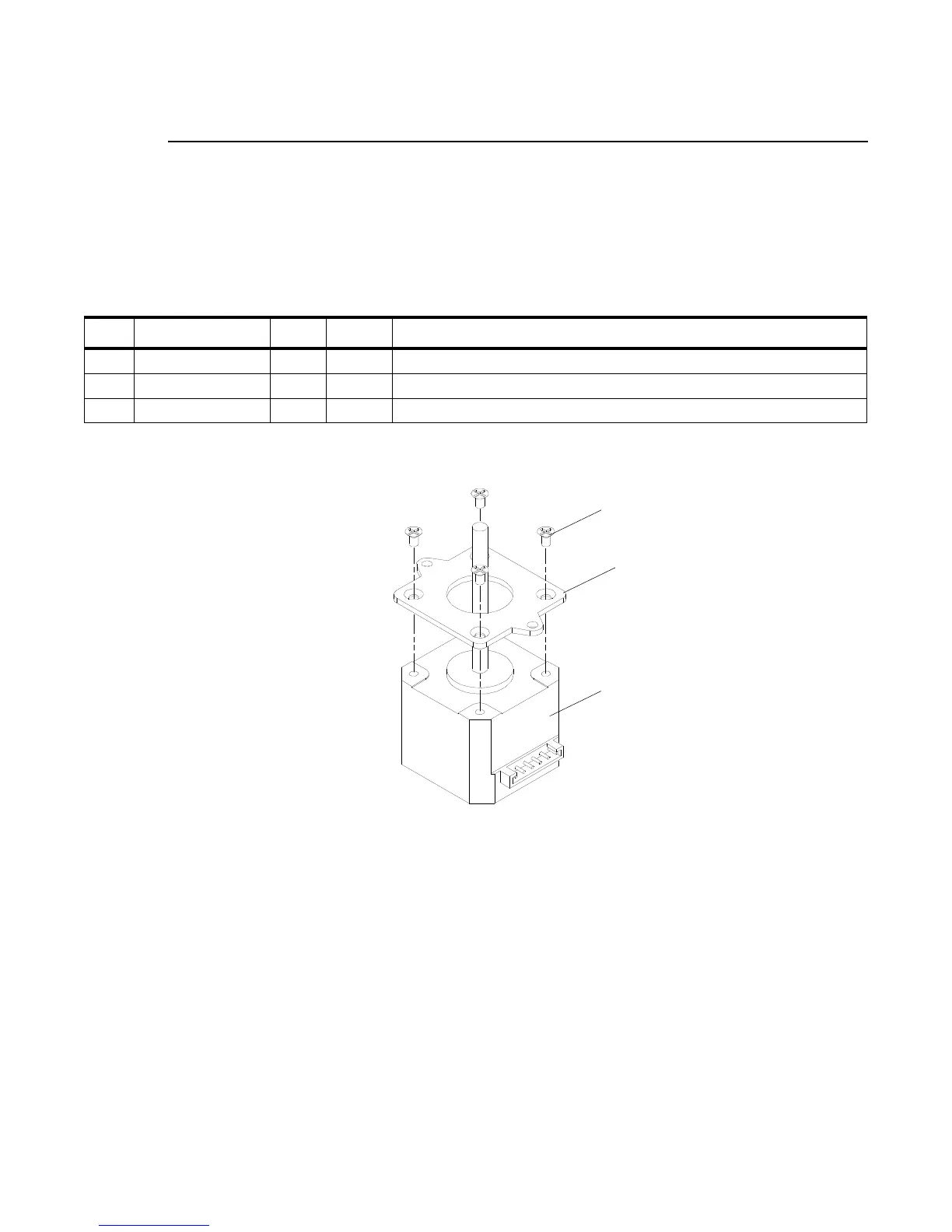

Figure 3-9: Long Shaft Motor Assembly
No. Item Qty. UM. Description
1 10.9678.0330 1 EA PLATE, MOTOR ADAPTER
2 44.9678.0249 1 EA MOTOR, STEPPER 42MM X 34MM 60MM SHAFT
3 53.6513.0002 4 EA SCREW, 3MM X 5MM LG PFZ METRIC
1
2
3 (x4)
