Pan Tube Assembly
21.9678.0881 Rev 0
Refer to Figure 3-75

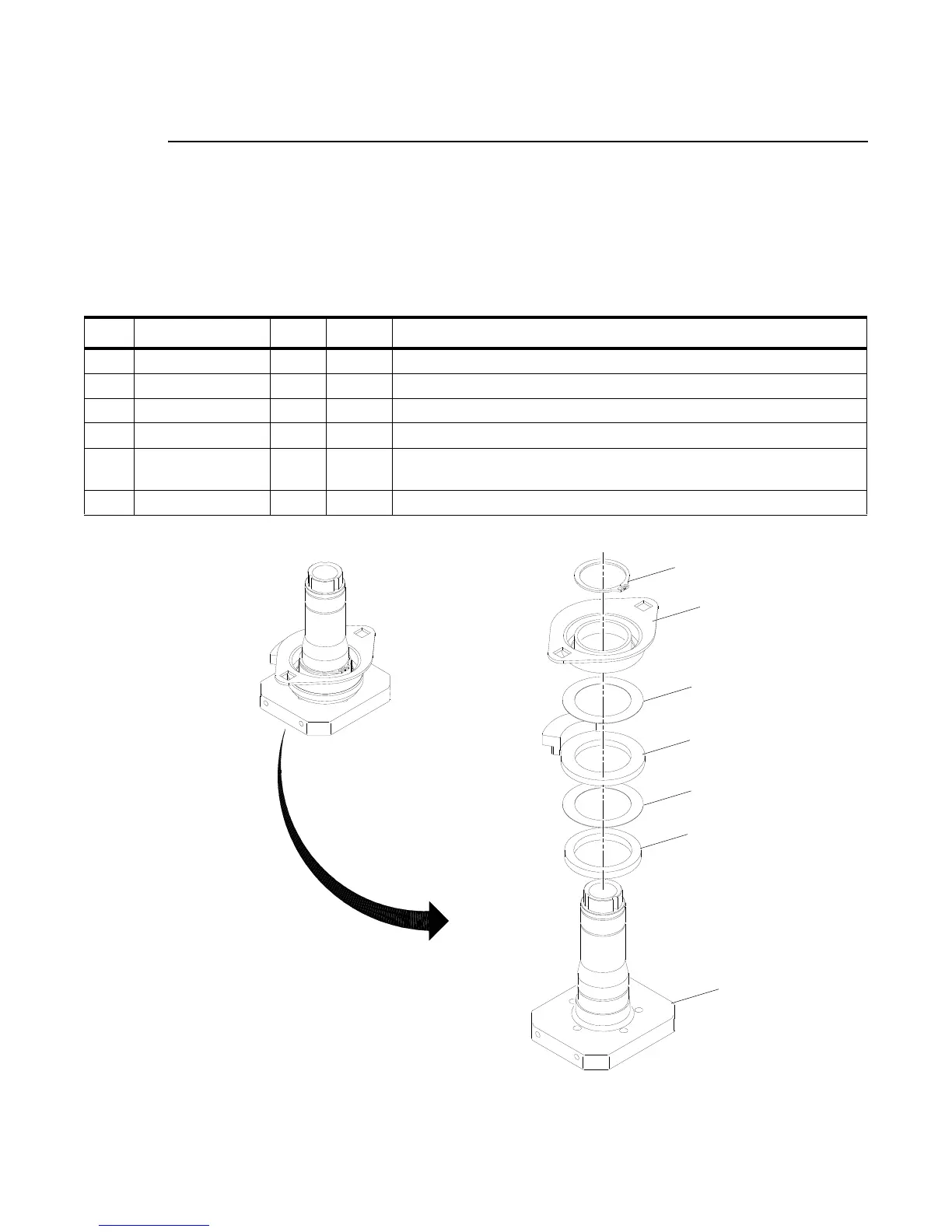

Figure 3-75: Pan Tube Assembly
No. Item Qty. UM. Description
1 10.9678.0809 1 EA PAN TOGGLE STOP
2 10.9678.0847 1 EA SILICONE FOAM WASHER
3 10.9678.0848 2 EA WASHER, PAN TEFLON
4 12.9678.0877 1 EA PAN TUBE, MACHINED
5 54.1206.0021 1 EA RING, RETAINING 1.562"SHAFT 1.468"GRV DIA .068"GRVWD
EXTERNAL
6 54.1255.0002 1 EA BEARING ASSY, FLUSH MOUNT HOUSING LARGE
1
2
3
4
5
6
3
