VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
200 02.9678.0010 F
Display Cable Assembly
25.9678.1825 Rev E
Refer to Figure 3-99

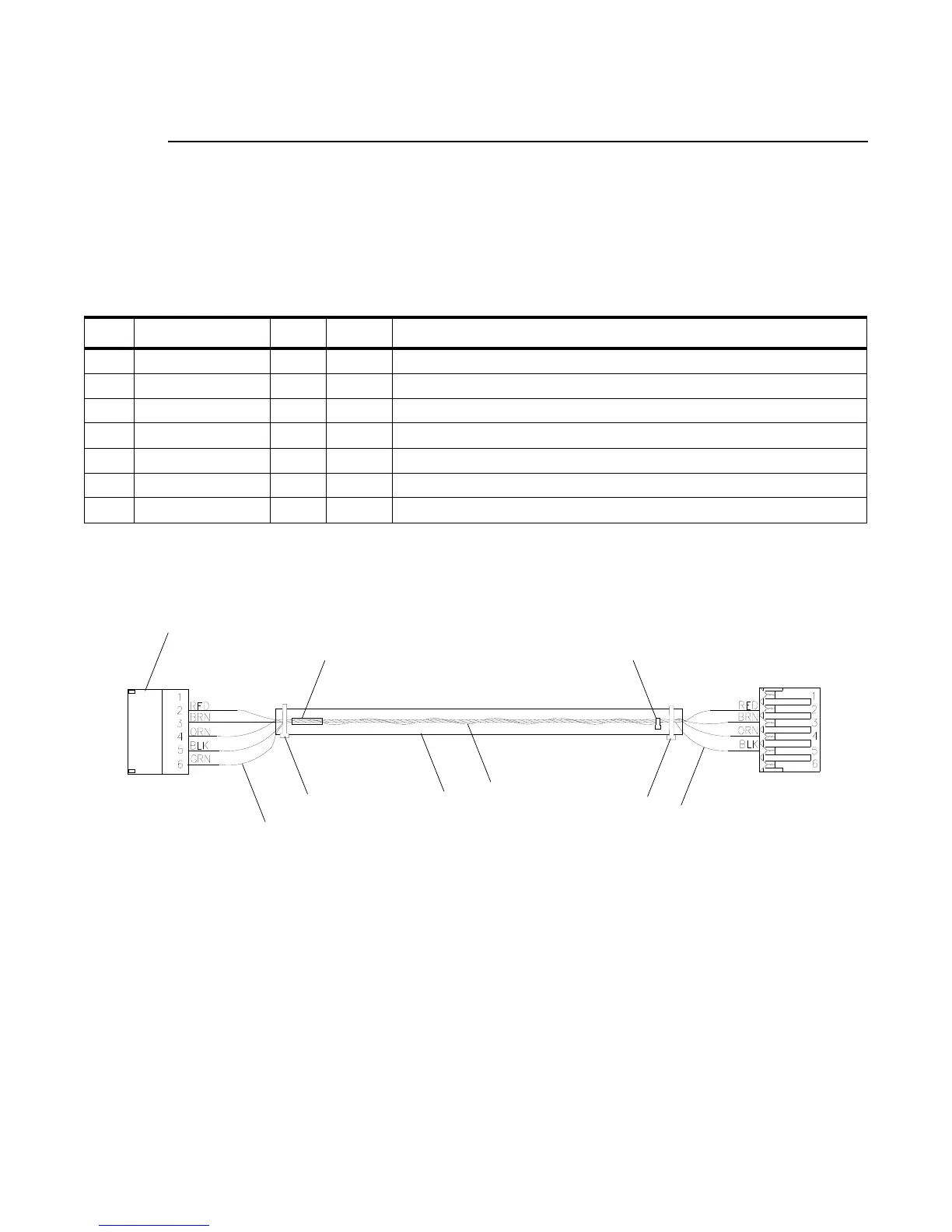

Figure 3-99: Display Cable Assembly
No. Item Qty. UM. Description
1 52.6396.2406 2 EA RECEPT, 6 POS MTA100 W/POL TAB WHT CLSD END
2 55.2186.0001 4 EA CABLE TIE, 0.10" WD 4" LG SMALL
3 55.6621.0001 1 EA SLEEVE, NYLON THIN WALL #6 SCR 1.0" LG
4 55.6699.0009 0.208 FT SLEEVING, 3/8" NOM DIA POLY EXP
5 73.5116.0123 1.02 FT WIRE, 24AWG 4COND TW <BLK-BRN-RED-ORN>
6 73.6224.0005 0.208 FT WIRE, 24 AWG 600V 200 DEG C TFE GRN
7 73.7130.0004 0.958 FT WIRE, TUBULAR BRAID, 1/8" X 23" LG
2
1 (x2)
6
4
3
5
7
2
2
