VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
122 02.9678.0010 F
Strobe Assembly
22.9678.0403 Rev F
Refer to Figure 3-33

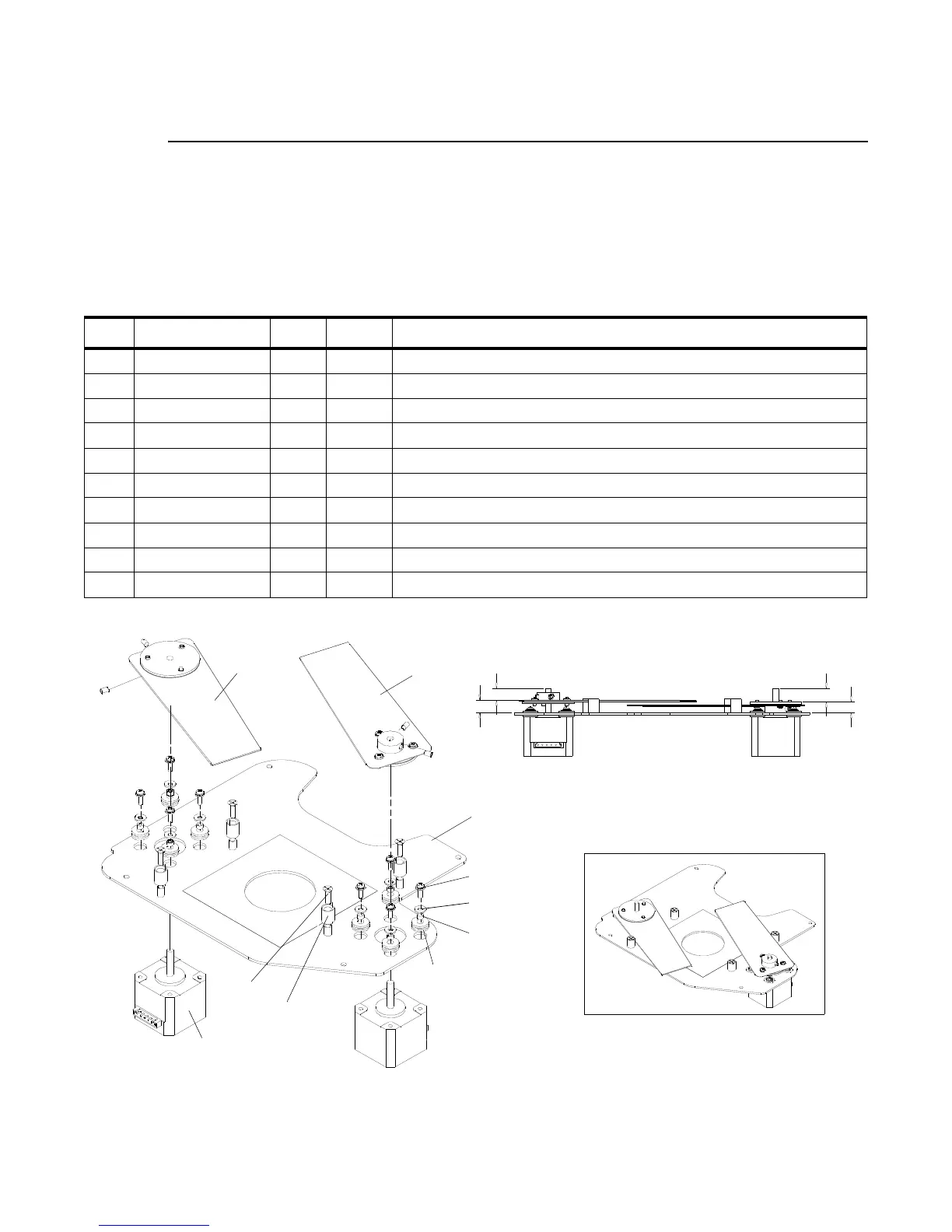

Figure 3-33: Strobe Assembly
No. Item Qty. UM. Description
1 10.9678.0491 4 EA BUMPER STOP, STROBE (changed on 6-18-03)
2 10.9678.0465 1 EA STROBE BULKHEAD
3 22.9678.0467 1 EA ASSY, RIGHT STROBE BLADE
4 22.9678.0468 1 EA ASSY, LEFT STROBE BLADE
5 44.5029.0001 2 EA MOTOR, STEPPER 42MM X 34MM -AR
6 53.6513.0032 8 EA SCREW, M3X10MM SEMS PPZ EXT TO
7 53.6609.0500 4 EA SCREW, 6-32 X 1/2" LG PFZ
8 55.6659.0001 8 EA SPACER, 1/4" RND 4 THRU 3/16" AL (changed 03-01-04)
9 55.3306.0006 8 EA WASHER, 0.375 OD 0.149 ID 0.025 THK SS (changed 08-12-03)
10 55.6706.0001 8 EA GROMMET, 9/32" ID 9/16" OD 1/4T SILICON RED (changed 03-01-04)
Set blade assemblies according
to dimensions shown
.377
.410
.432
.355
1 (x2)
2
3
4
5 (x2)
6 (x8)
7 (x4)
8 (x8)
9 (x8)
10 (x8)
