VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
34 02.9678.0010 F
Low Voltage Power Supply (LVS) Replacement
VL Part No: 69.3177.0151
Repair/Replacement Procedure
Step 1. Disconnect luminaire AC input cable from power source.
Step 2. At enclosure, remove two 6-32x1/4" LG PPZ screws from display side cover and remove
cover.
Step 3. At power supply, disconnect wiring:
Step 4. Remove one 6-32x3/8" LG PPZ screw.
Step 5. Loosen two 6-32x3/8" LG PPZ screws and slide LVS towards upper enclosure fan to
remove.
Step 6. Replace by performing steps 2 through 5 in reverse order.

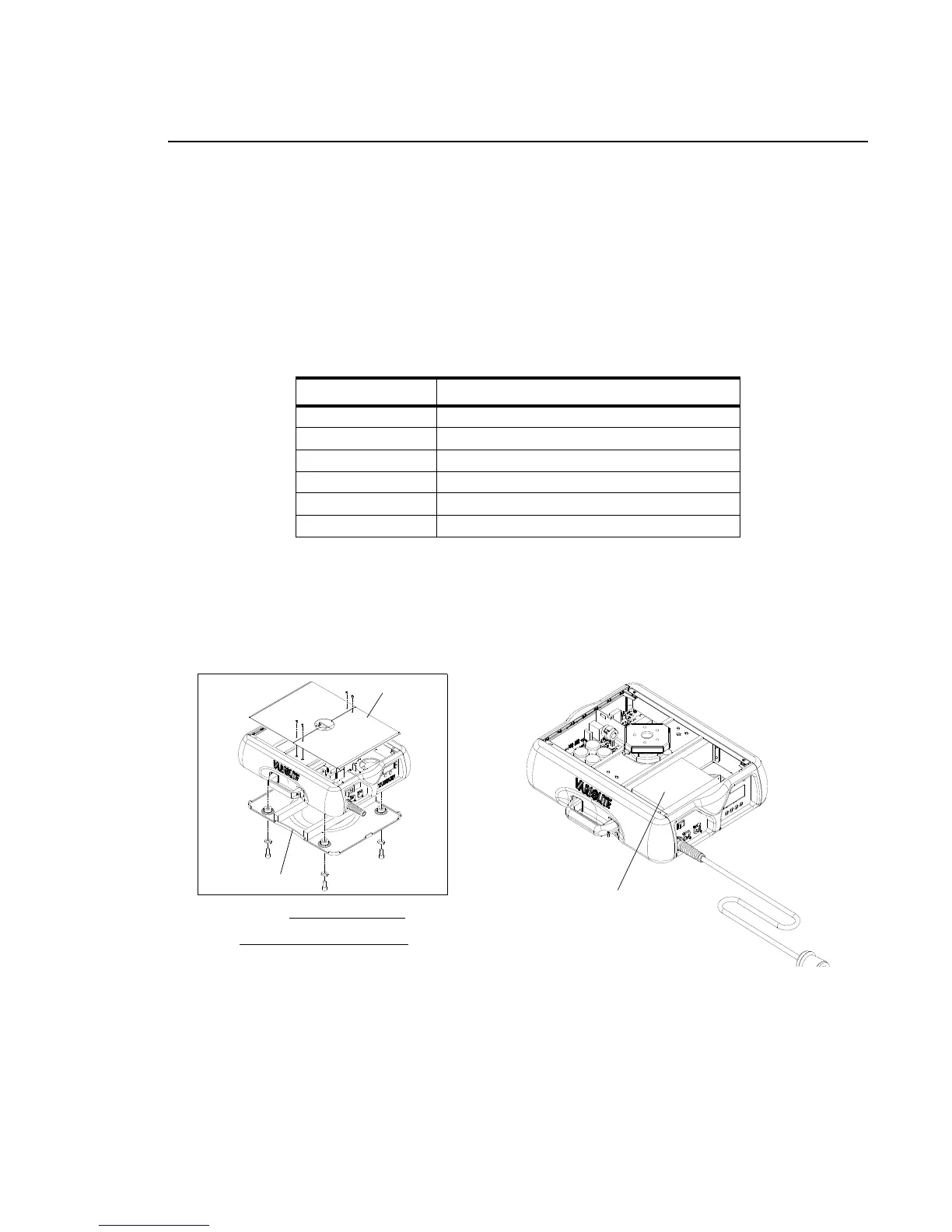

Figure 2-15: VL3000 Power Supply (LVS) Replacement
Location Connector
N White AC Wires
L Black AC Wires
V + Red DC Wires
V + Red DC Wires
V - Black DC Wires
V - Black DC Wires
Top Cover
Bottom Cover
1)
2)
Head not shown for clarity.
NOTE:
Power Supply (LVS)
