Vari Lite VL3000 - LVS to Yoke AC Fan Cable Assembly

CABLE ASSEMBLIES : LVS TO YOKE AC FAN CABLE ASSEMBLY
02.9678.0010 F 205
3
LVS to Yoke AC Fan Cable Assembly
25.9678.0843 Rev A
Refer to Figure 3-104

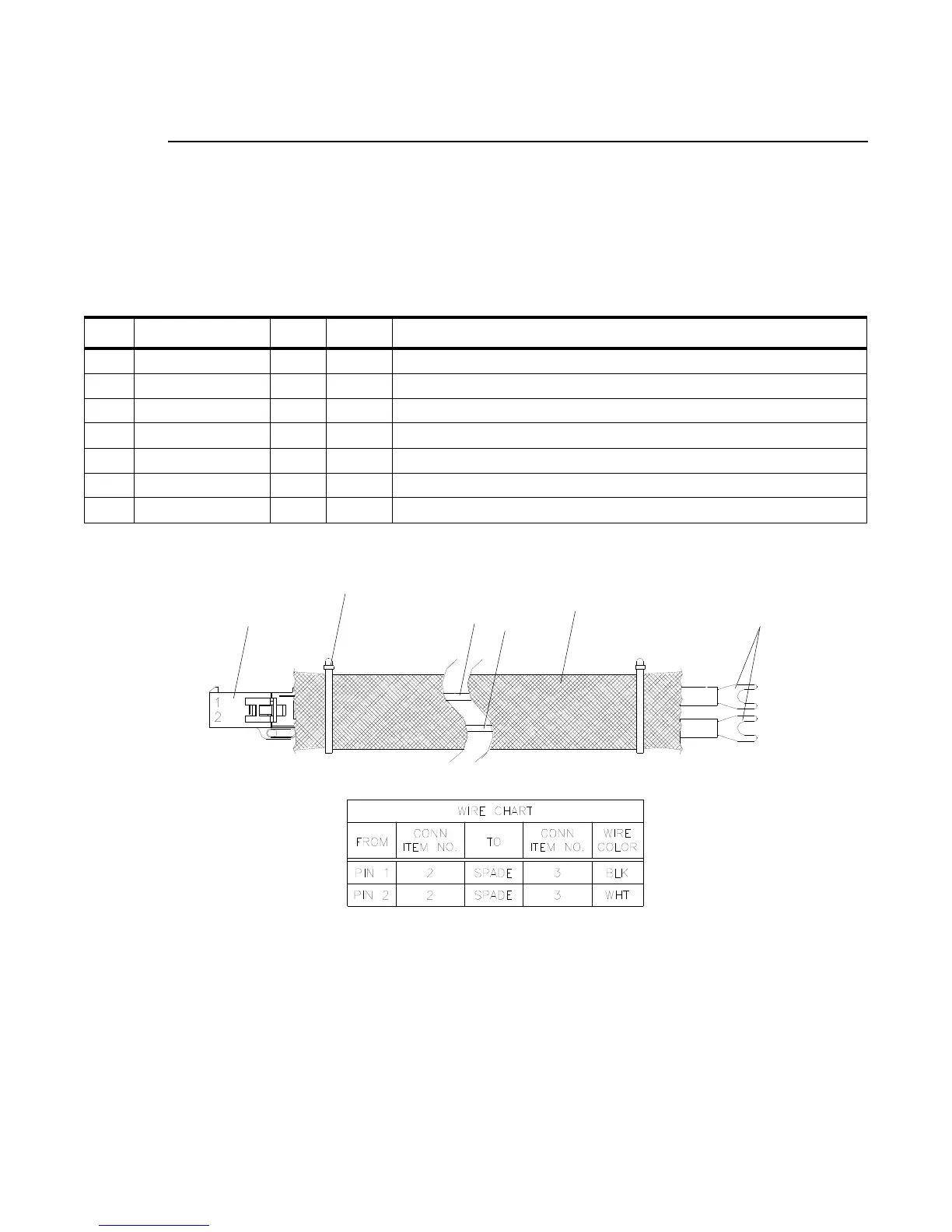

Figure 3-104: LVS to Yoke AC Fan Cable Assembly
No. Item Qty. UM. Description
1 52.6664.0001 2 EA CONTACT, 22-26AWG FEMALE MATE-N-LOK 2
2 52.6664.0002 1 EA CONN, HOUSING 2 POS CAP MATE-N-LOK 2
3 52.8231.0008 2 EA TERM, SPADE #6 RED 22-16AWG INSERT
4 55.2186.0001 2 EA CABLE TIE, 0.10" WD 4.00" LG SMALL
5 55.6699.0002 2.08 FT SLEEVING, 1/4"NOM.DIA. POLY EXP BRAIDED
6 73.6222.0009 2.17 FT WIRE, 22 AWG 600V 200C TFE WHT UL1199 19STRAND
7 73.6222.0010 2.17 FT WIRE, 22 AWG 600V 200C TFE BLK UL1199
1, 2
3
4 (x2)
5
6
7
