Vari Lite VL3000 - Ventilation Cover Assembly - Standard

VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
164 02.9678.0010 F
Ventilation Cover Assembly - Standard
21.9661.1254 Rev C
Refer to Figure 3-67

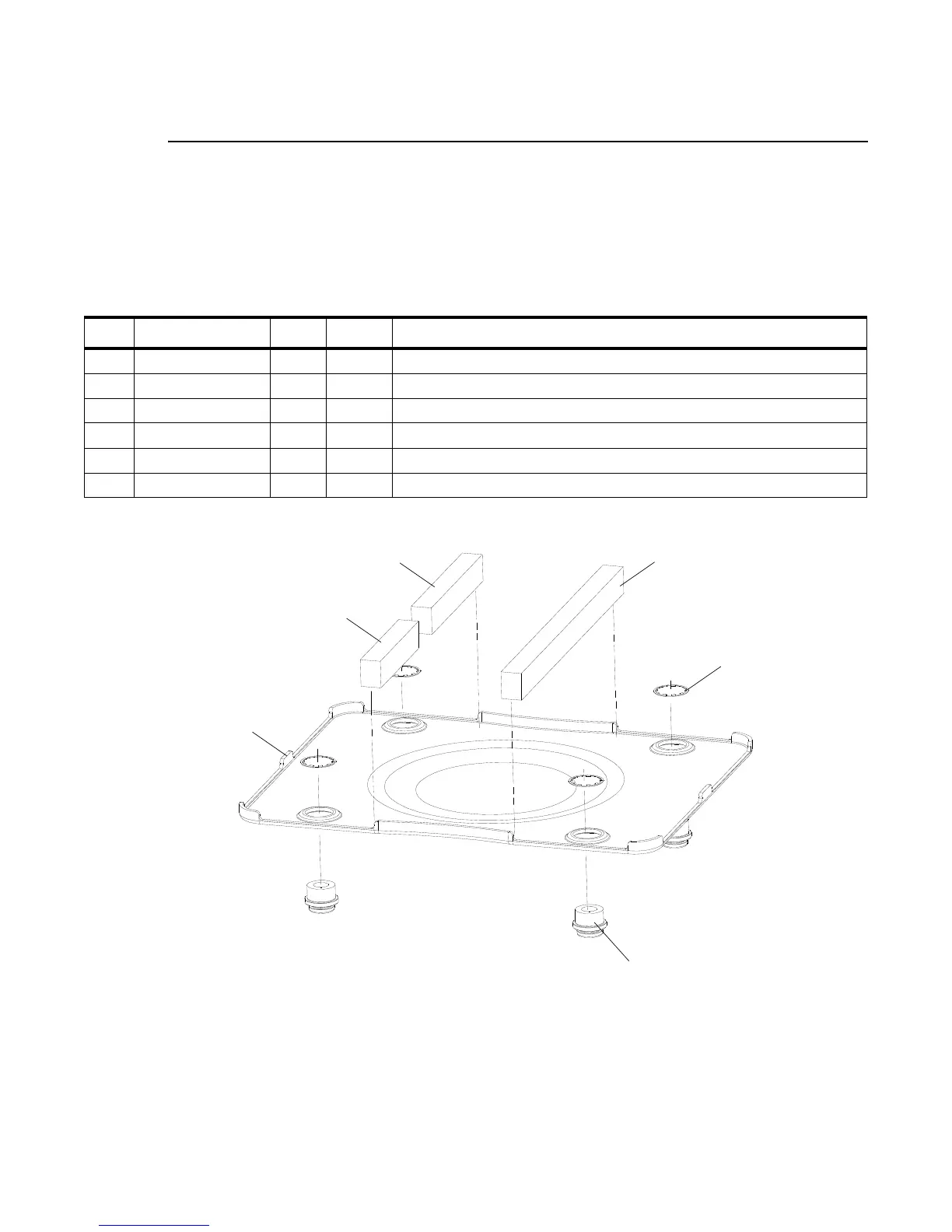

Figure 3-67: Ventilation Cover Assembly
No. Item Qty. UM. Description
1 10.9661.1249 4 EA POST, TRUSS HOOK
2 10.9661.1350 1 EA COVER, VENTILATION
3 10.9678.0893 1 EA 12" AIR SEAL, UPPER ENCLOSURE (changed 05-11-05)
4 10.9678.0894 1 EA 6" AIR SEAL, UPPER ENCLOSURE (changed 05-11-05)
5 10.9678.0896 1 EA 4.5" AIR SEAL, UPPER ENCLOSURE (changed 05-11-05)
6 54.1206.0015 4 EA RING, RETAINING, PRESS-ON, 1" SH
1 (x4)
2
3
6 (x4)
4
5
