Vari Lite VL3000 - Zoom Box Assembly

HEAD ASSEMBLY : ZOOM BOX ASSEMBLY
02.9678.0010 F 105
3
Zoom Box Assembly
21.9678.0110 Rev F
Refer to Figure 3-19

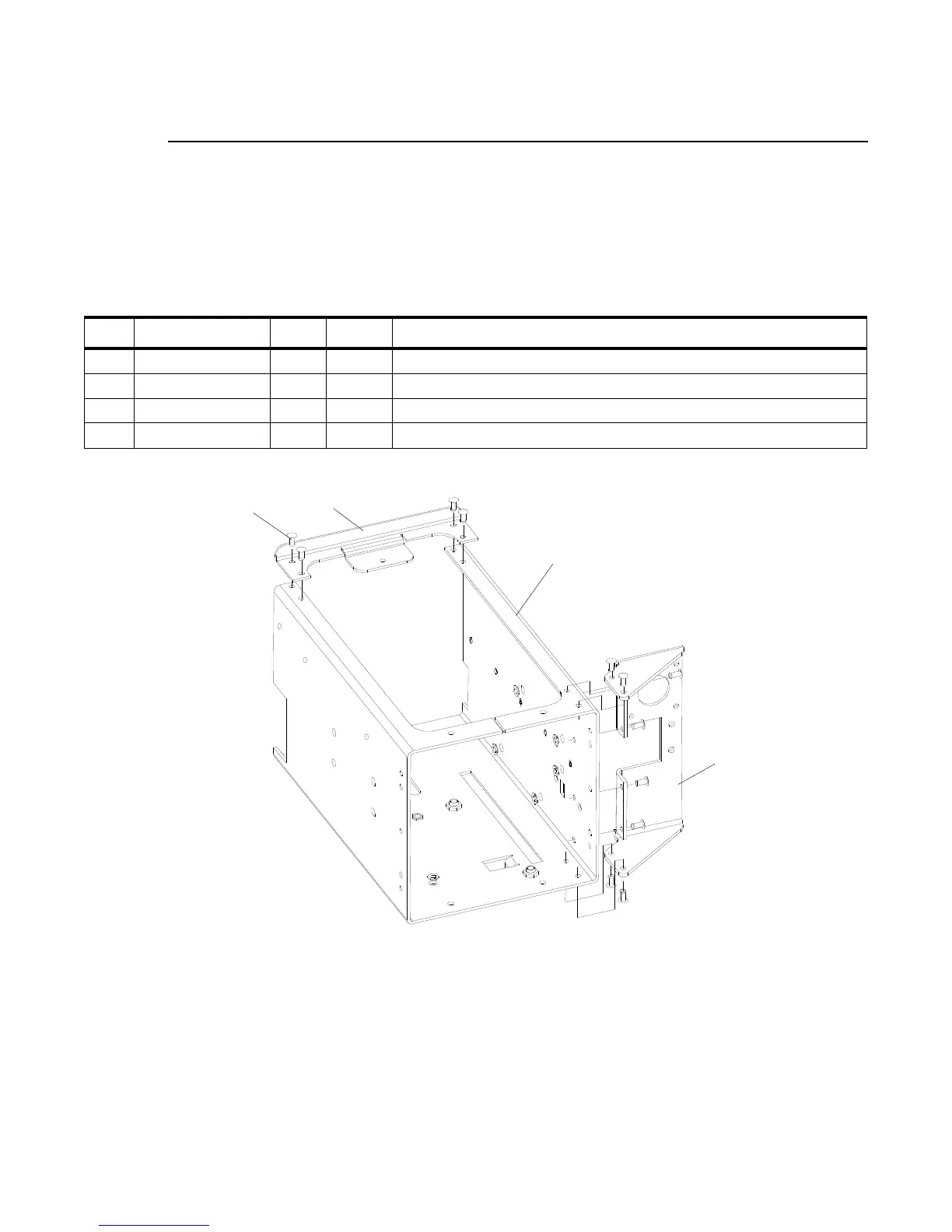

Figure 3-19: Zoom Box Assembly
No. Item Qty. UM. Description
1 10.9678.0124 1 EA ZOOM BOX
2 10.9678.0125 1 EA BRACE, FOCUS
3 10.9678.0126 1 EA BRACE, REAR
4 53.6530.0006 12 EA RIVET, 1/8"OD POP .188-.250GL
1
2
3
4 (x12)
