Vari Lite VL3000 - Group 1 Lens Assembly

VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
106 02.9678.0010 F
Group 1 Lens Assembly
22.9678.1181 Rev A
(Formerly 22.9678.0181)
Refer to Figure 3-20

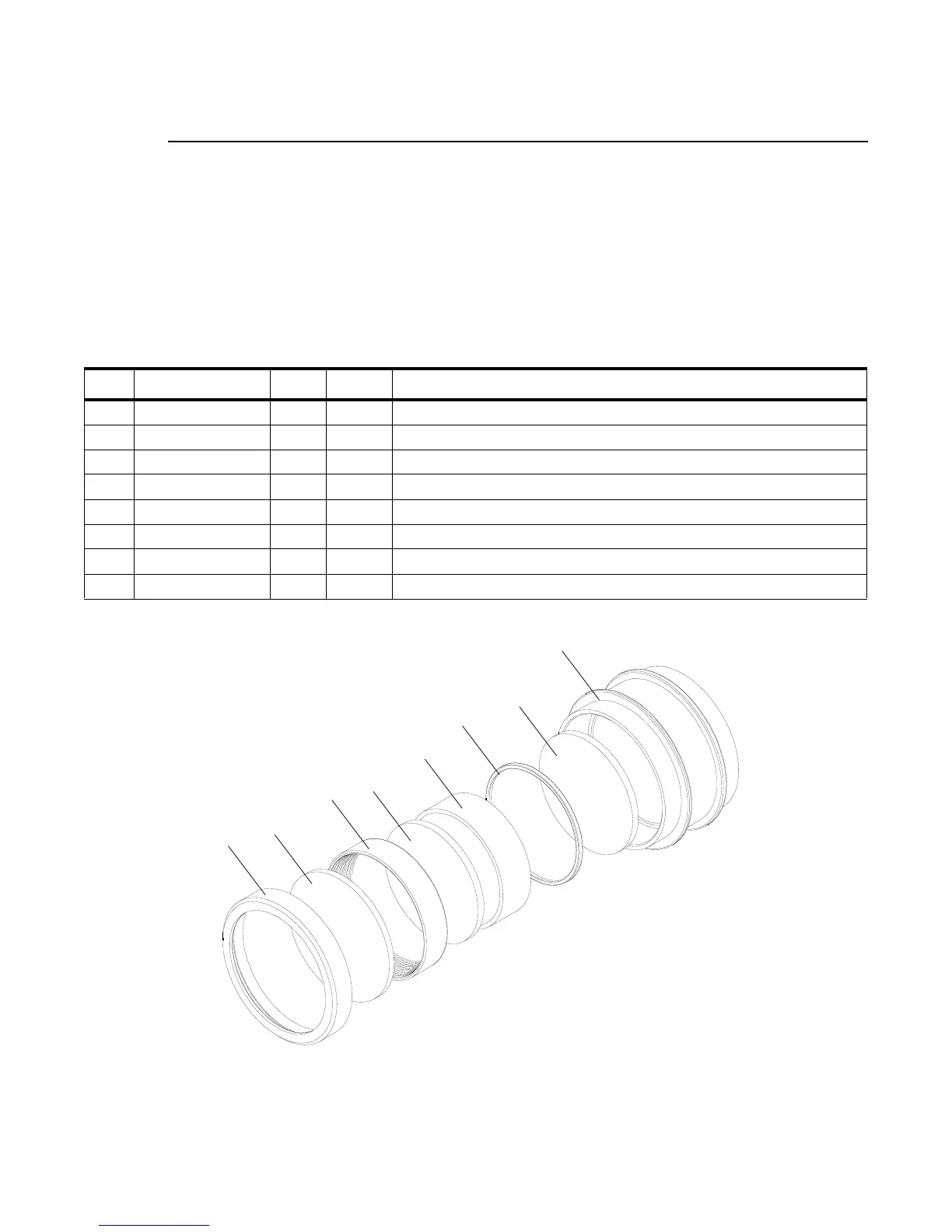

Figure 3-20: Group 1 Lens Assembly
No. Item Qty. UM. Description
1 10.9678.0187 1 EA LENS CAP, GROUP 1
2 10.9678.0175 1 EA SPACER, RIBBED, L1-L2/G1
3 10.9678.1128 1 EA SPACER, LENS 3-4/G1 (changed 6-26-03)
4 10.9678.0185 1 EA LENS BARREL, GROUP 1
5 42.9678.0131 1 EA LENS, #1
6 42.9678.0132 1 EA LENS, #2
7 42.9678.0133 1 EA LENS, #3
8 42.9678.0134 1 EA LENS, #4
1
2
3
4
5
6
7
8
