Vari Lite VL3000 - Zoom Cam Assembly

VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
112 02.9678.0010 F
Zoom Cam Assembly
22.9678.1106 Rev B
Refer to Figure 3-26

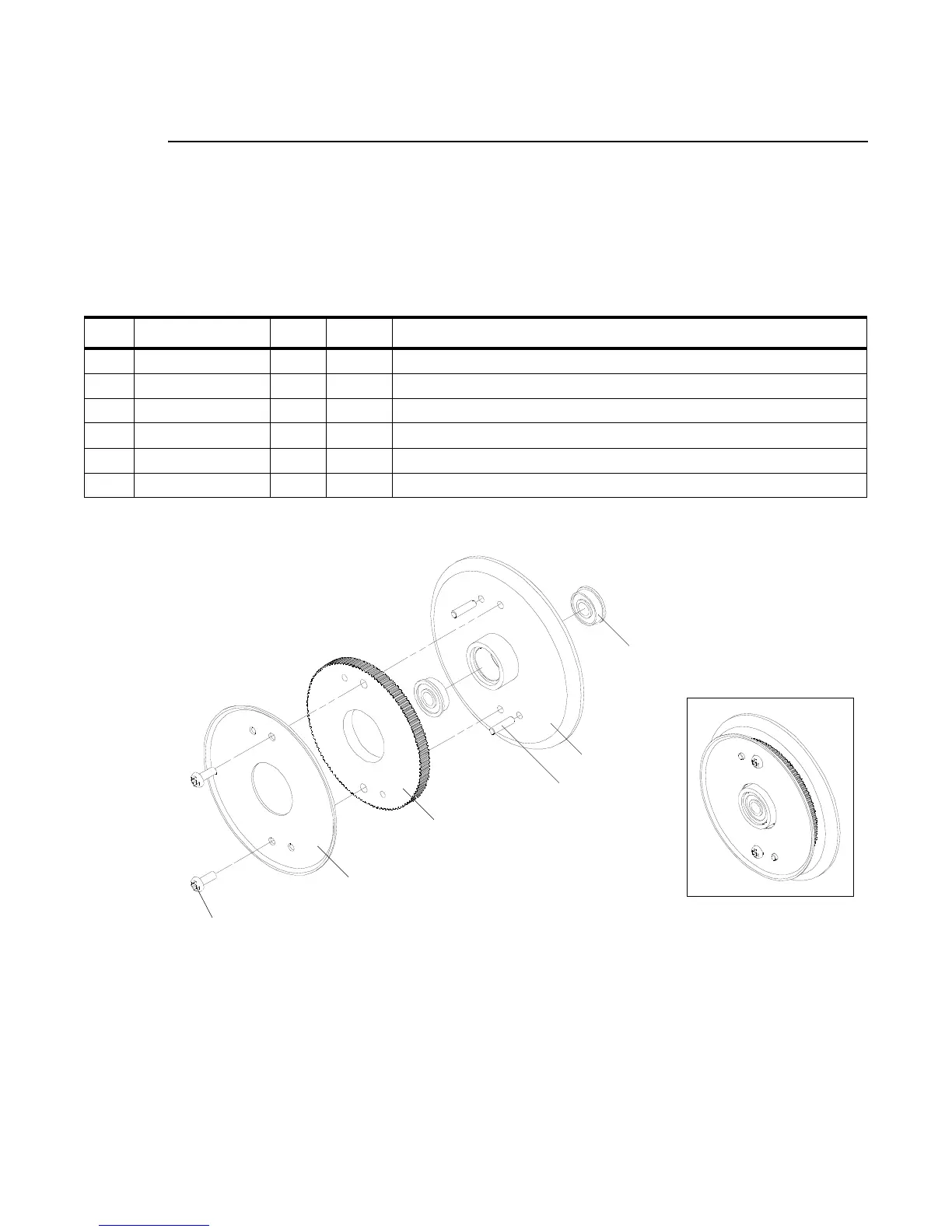

Figure 3-26: Zoom Cam Assembly
No. Item Qty. UM. Description
1 10.9678.1107 1 EA ZOOM TIMING CAM
2 10.9678.1108 1 EA PULLEY FLANGE
3 10.9678.1118 1 EA TIMING PULLEY, ZOOM
4 53.6613.0008 2 EA SCREW, 6-32 X 1/2" PPZ (changed 11-08-04)
5 54.1259.0004 2 EA BEARING, RADIAL FLANGED .25"ID .625"OD (changed 06-25-03)
6 55.6763.0500 2 EA PIN, DOWEL .5"LG .125"DIA 303SS
1
2
3
4 (x2)
5 (x2)
6 (x2)
