VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
148 02.9678.0010 F
Color Sense PCB #2 Mount Assembly
22.9678.0489 Rev B
Refer to Figure 3-57

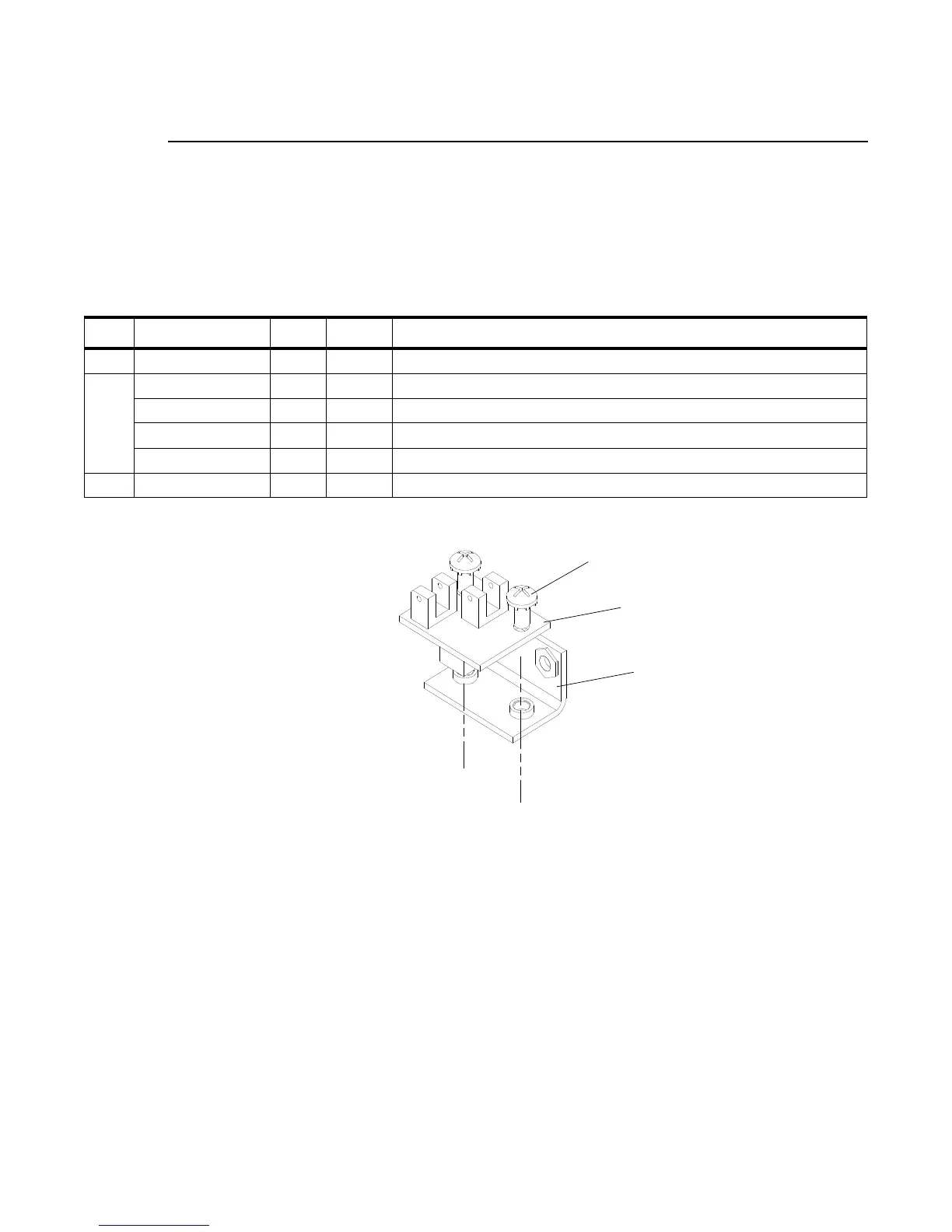

Figure 3-57: Color Sense PCB #2 Mount Assembly
No. Item Qty. UM. Description
1 10.9678.0452 1 EA PCB MOUNT, COLOR SENSE #2
2 24.9678.3454 1 EA PCB ASSY, COLOR SENSOR #2
- 11.9678.0454 1 EA PCB, COLOR SENSOR #2
- 52.6447.0010 1 EA HEADER, SHROUDED 5 POSITION
- 86.7002.0005 2 EA SWITCH, SLOTTED OPTICAL OPB6
3 53.6558.0007 2 EA SCREW, 6-32 X 1/4" SEMS
1
2
3 (x2)
