VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
186 02.9678.0010 F
Yoke Fan and Relay Cable Assembly - VL3000Q
25.9678.0781 Rev A
Refer to Figure 3-86

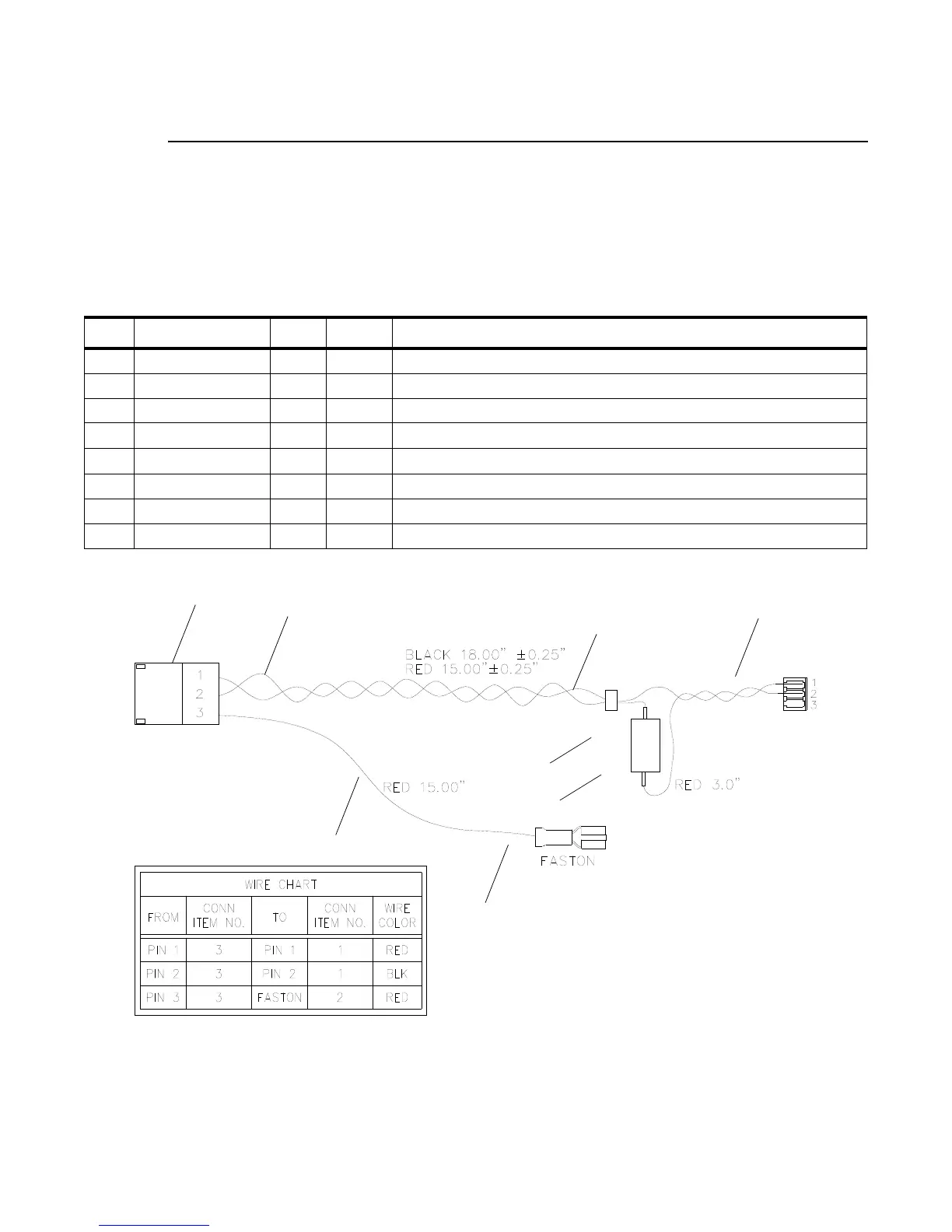

Figure 3-87: Yoke Fan and Relay Cable Assembly
No. Item Qty. UM. Description
1 52.6423.0003 1 EA HOUSING, 3 POS MT RECEPT, 2MM
2 52.8230.0003 1 EA RECEPT, 1/4" FASTON 22-18AWG
3 52.6396.3103 1 EA RECEPT, 3 POS MTA100 W/ POL TAB BLU CLSD END
4 55.2186.0001 1 EA CABLE TIE, .10 X 4" SMALL
5 55.2268.0125 1 IN
HEATSHRINK, 1/8" CLEAR KYNAR UL 600V 150
O
C
6 60.7440.2002 1 EA RESISITOR, 5W, 5% 200 OHM WIREWOUND
7 73.3526.0002 1.25 FT WIRE, 26AWG 300V 105C PVC RED
8 73.5126.0002 1.50 FT WIRE, 26AWG 2 COND 300V 80C <RED-BLK>
1
3
6
5 (2 pl)
4
2
7
8
