Vari Lite VL3000 - Translating Convex Lens Assembly

HEAD ASSEMBLY : TRANSLATING CONVEX LENS ASSEMBLY
02.9678.0010 F 137
3
Translating Convex Lens Assembly
21.9678.0930 Rev B (Wash Only)
Refer to Figure 3-48

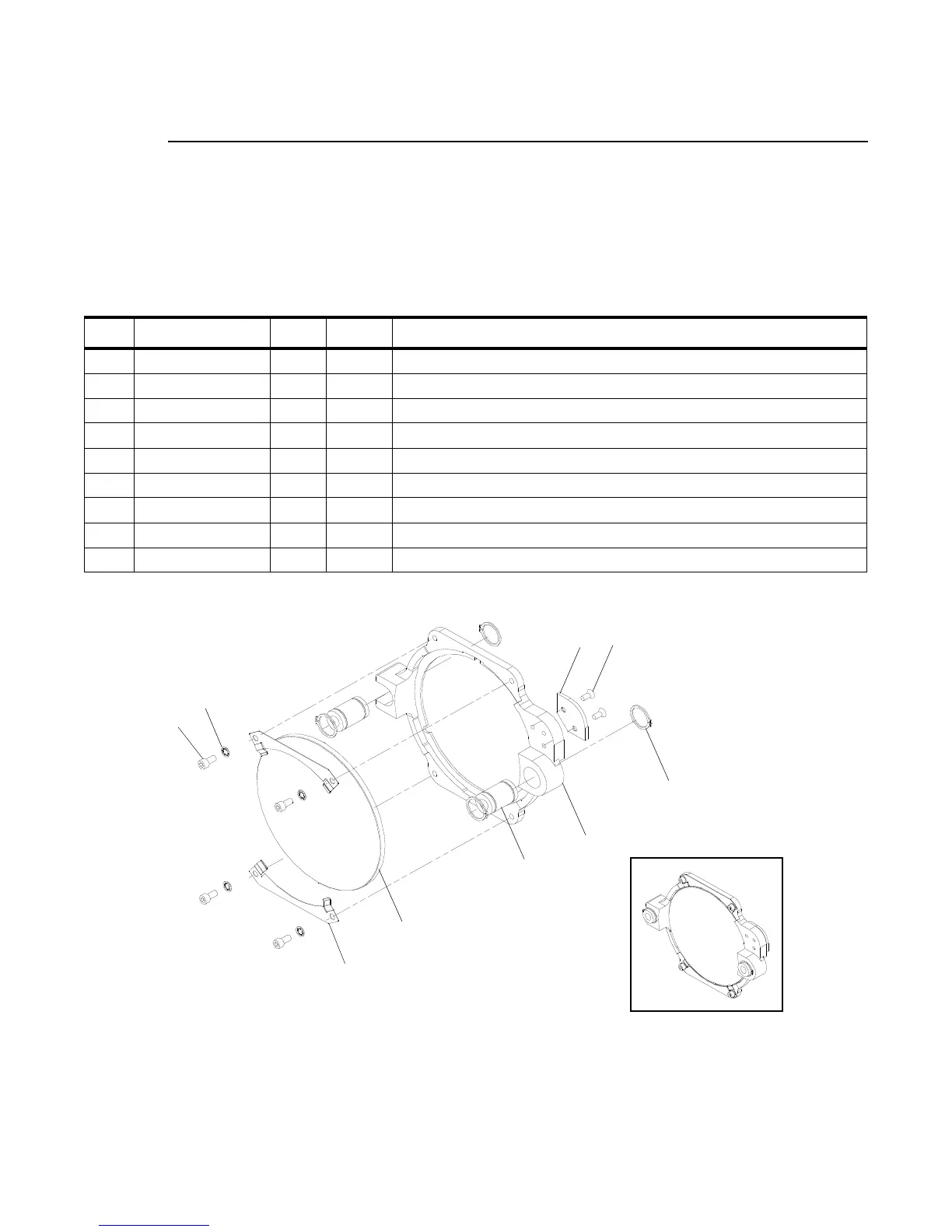

Figure 3-48: Translating Convex Lens Assembly
No. Item Qty. UM. Description
1 10.9678.0936 1 EA STOP, BEAM SPREADER
2 10.9678.0938 2 EA LENS CLAMP, CONVEX
3 12.9678.0166 1 EA MASKED, CONVEX LENS ARRAY MEDIUM
4 12.9678.0939 1 EA CONVEX LENS MOUNT, MACHINED, ADJUSTABLE
5 53.6515.0375 4 EA SCREW, 10-32 X 3/8" LG SCB
6 53.6545.0003 2 EA SCREW, 8-32 X 3/8" PFZ
7 54.2056.0001 4 EA RING, RETAINING EXTERNAL, 19MM SHAFT
8 55.2114.0001 4 EA WASHER, LOCK, #10 INTERNAL TOOTH
9 55.6776.0010 2 EA LINEAR BUSHING, 10MM STEEL W/ PHENOLIC CAGE
9 (x2)
2 (x2)
3
5 (x4)
7 (x4)
6 (x2)
8 (x4)
1
4
