Vari Lite VL3000 - Wash Zoom Interconnect PCB Assembly

HEAD/YOKE PCB ASSEMBLIES : WASH ZOOM INTERCONNECT PCB ASSEMBLY
02.9678.0010 F 153
3
Wash Zoom Interconnect PCB Assembly
24.9678.3916 Rev 0 (Wash Only)
Refer to Figure 3-61

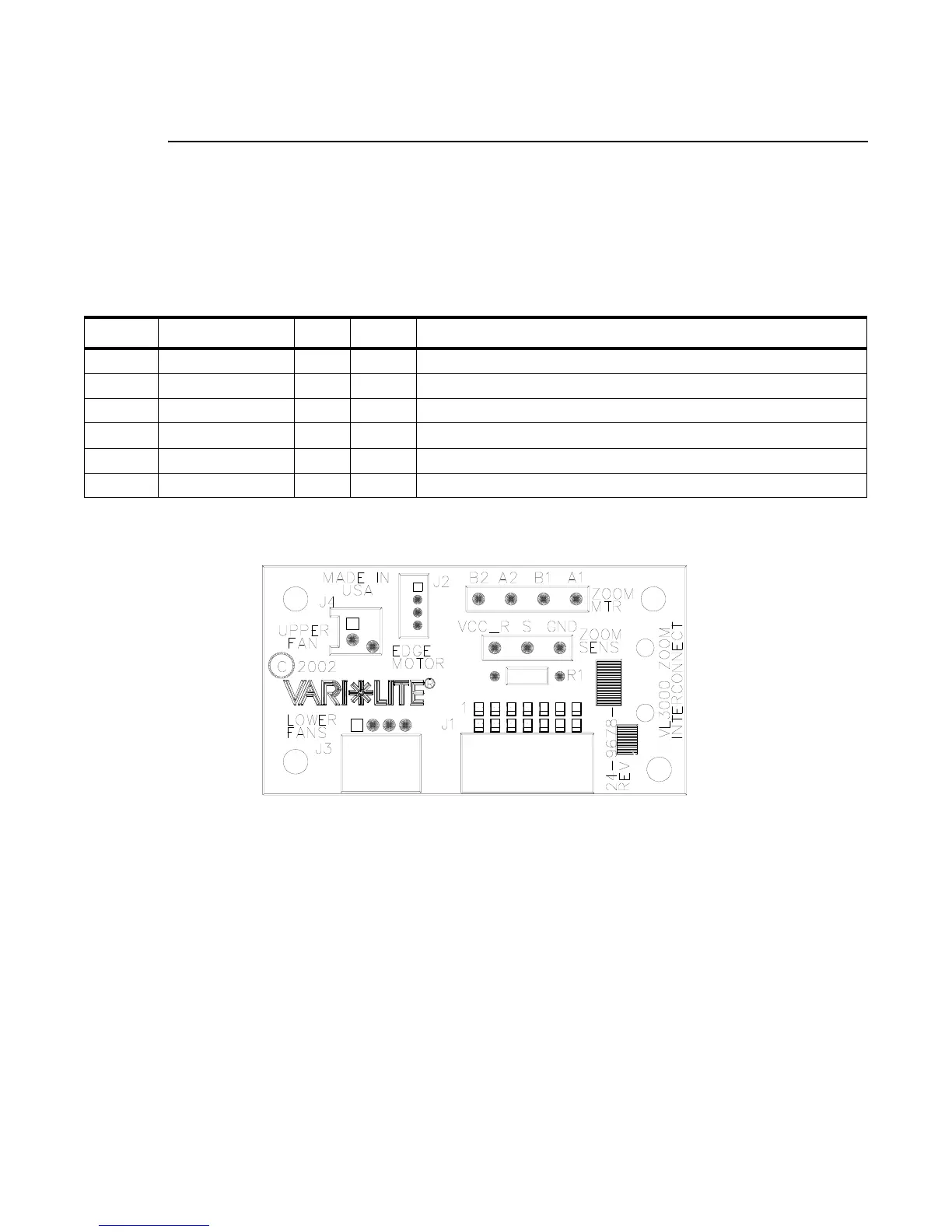

Figure 3-61: Wash Zoom Interconnect PCB Assembly
Ref. Item Qty. UM. Description
- 11.9678.1116 1 EA PCB ZOOM INTERCONNECT
J3 52.6259.0008 1 EA HDR 4POS NT\MTA100 SD RT ANG
J4 52.6260.0015 1 EA HEADER, 2POS MTA-100 SHROUDED
J2 52.6447.0009 1 EA HEADER, SHROUDED 4 POSITION
J1 52.6598.0029 1 EA HDR 14P 2ROW AMP MODU R/A
R1 60.1440.2703 1 EA RES, 1/4W 5% 270.0 OHM CF
