Vari Lite VL3000 - AC Input Pigtail Cable Assembly

ENCLOSURE ASSEMBLY : AC INPUT PIGTAIL CABLE ASSEMBLY
02.9678.0010 F 171
3
AC Input Pigtail Cable Assembly
25.9678.0810 Rev B
Refer to Figure 3-72

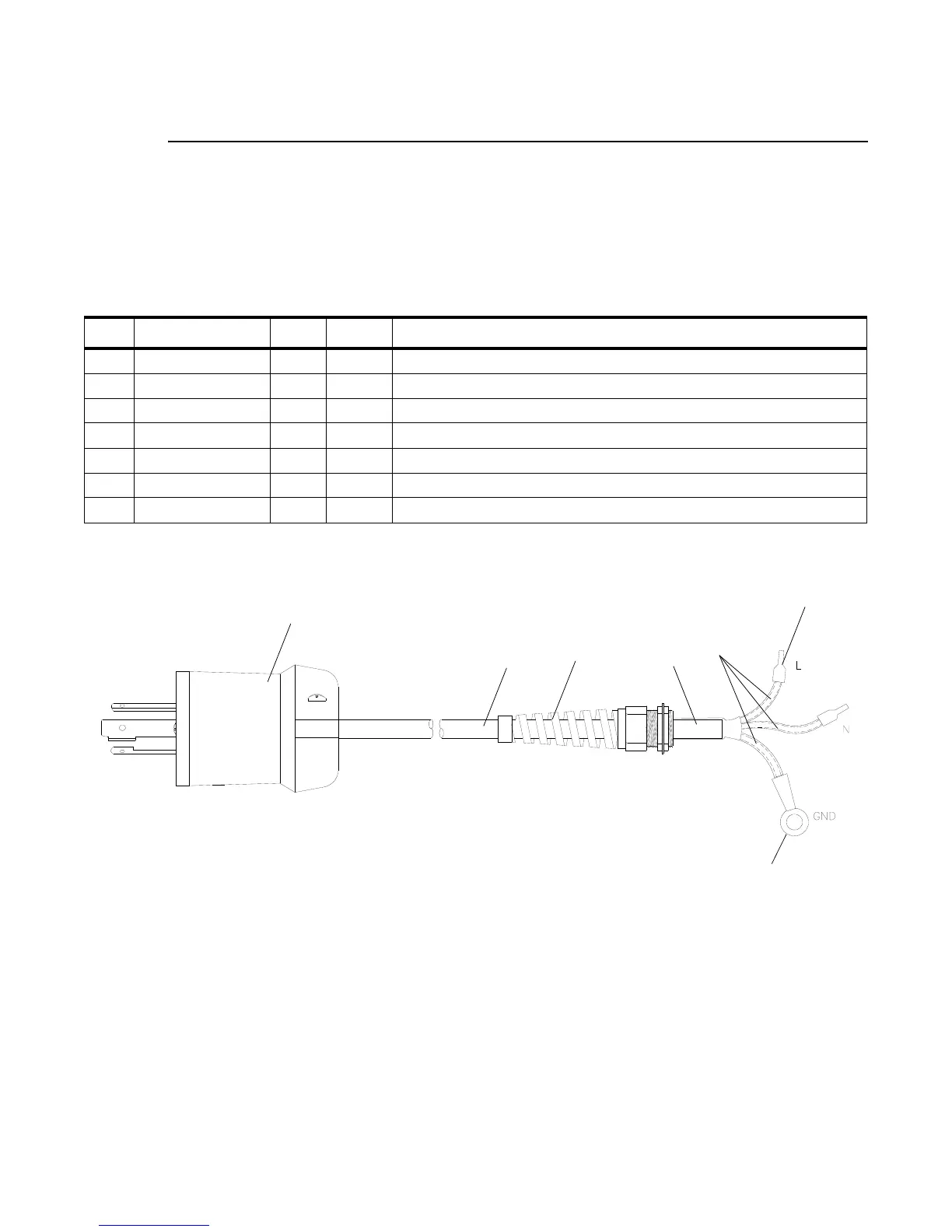

Figure 3-72: AC Input Pigtail Cable Assembly
No. Item Qty. UM. Description
1 52.6274.2313 1 EA STRAIN RELIEF, SKINTOP FLEX TYPE PG13 BLK
2 52.6401.2321 1 EA CONN, PLUG "CE MARKED" 20A 250V TWIST-LOCK MALE LINE, 3-WIRE
3 52.8231.0005 1 EA TERM, RING #6 BLUE 16-14 AWG REEL PIDG
4 52.8298.1160 2 EA FERRULE, WIRE 1X16 AWG L2=8MM BLACK
5 55.2268.0187 0.92 FT HEATSHRINK, 3/16" CLEAR KYNAR UL 600V 150DEG C
6 55.2268.0500 0.13 FT HEATSHRINK, 1/2" CLEAR KYNAR UL 600V 150DEG C
7 73.9636.0153 4.00 FT CORDAGE, 1.5/3 750V 60C EURO BLK HD-22 11MM OD
4 (x2)
6
1
7
2
5
3
