VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
126 02.9678.0010 F
VL3000Q Strobe Motor Assembly
23.9678.0499 Rev A
Refer to Figure 3-37

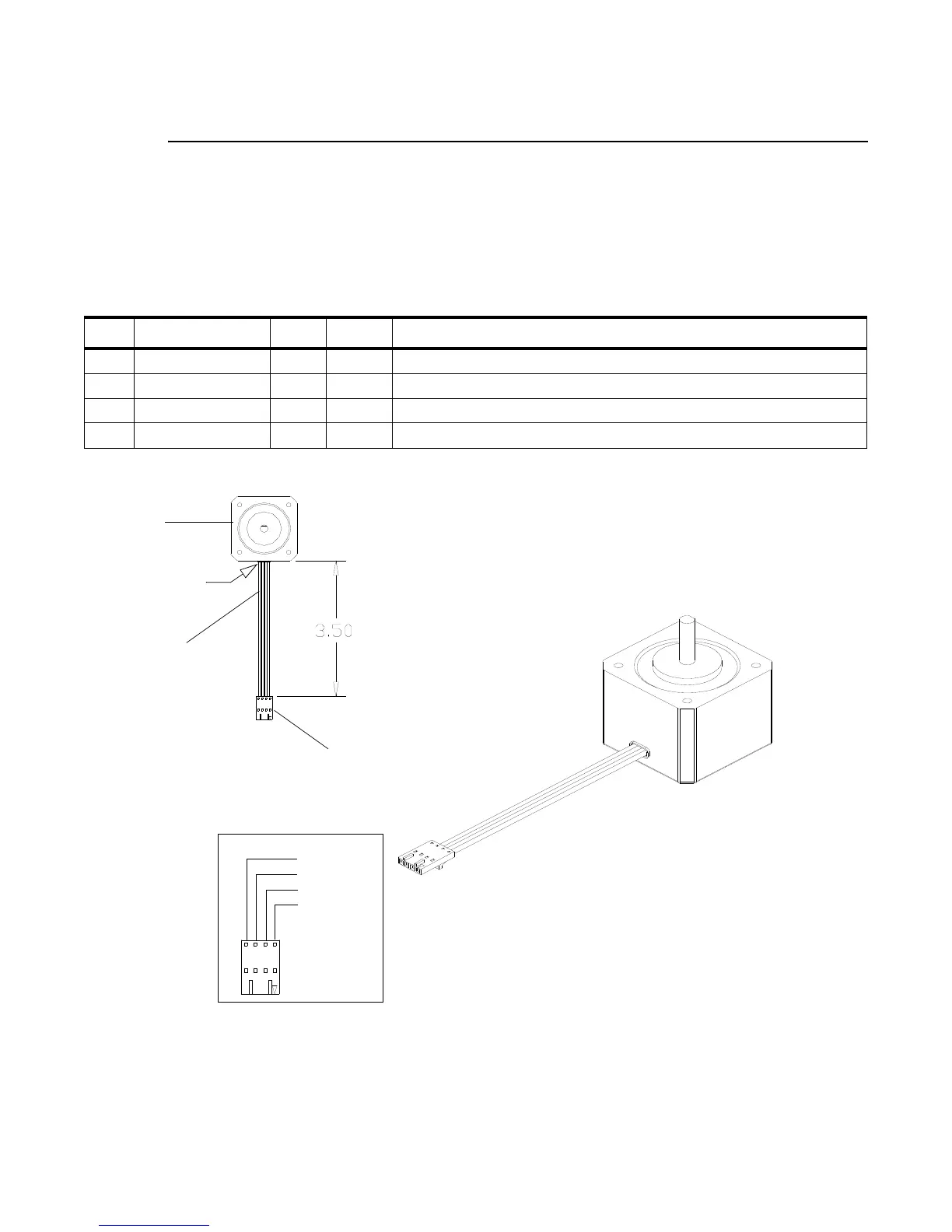

Figure 3-37: VL3000Q Strobe Motor Assembly
No. Item Qty. UM. Description
1 44.5035.0001 1 EA STEPPER MOTOR, 2 PHASE, PK
2 52.6524.0004 1 EA CONNECTOR, HOUSING, 4 POS RECEPT
3 52.8346.0001 4 EA CONTACT, 24-30 AWG FEMALE CRIMP
4 55.2200.0003 0.25 FT HEATSHRINK, 3/16" VITON
1
2
3
4
4 - Green
3 - Black
2 - Red
1- Blue
(3" - Heatshrink
from this surface)
