VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
172 02.9678.0010 F
Pan Pulley Assembly
21.9678.0807 Rev E
Refer to Figure 3-73

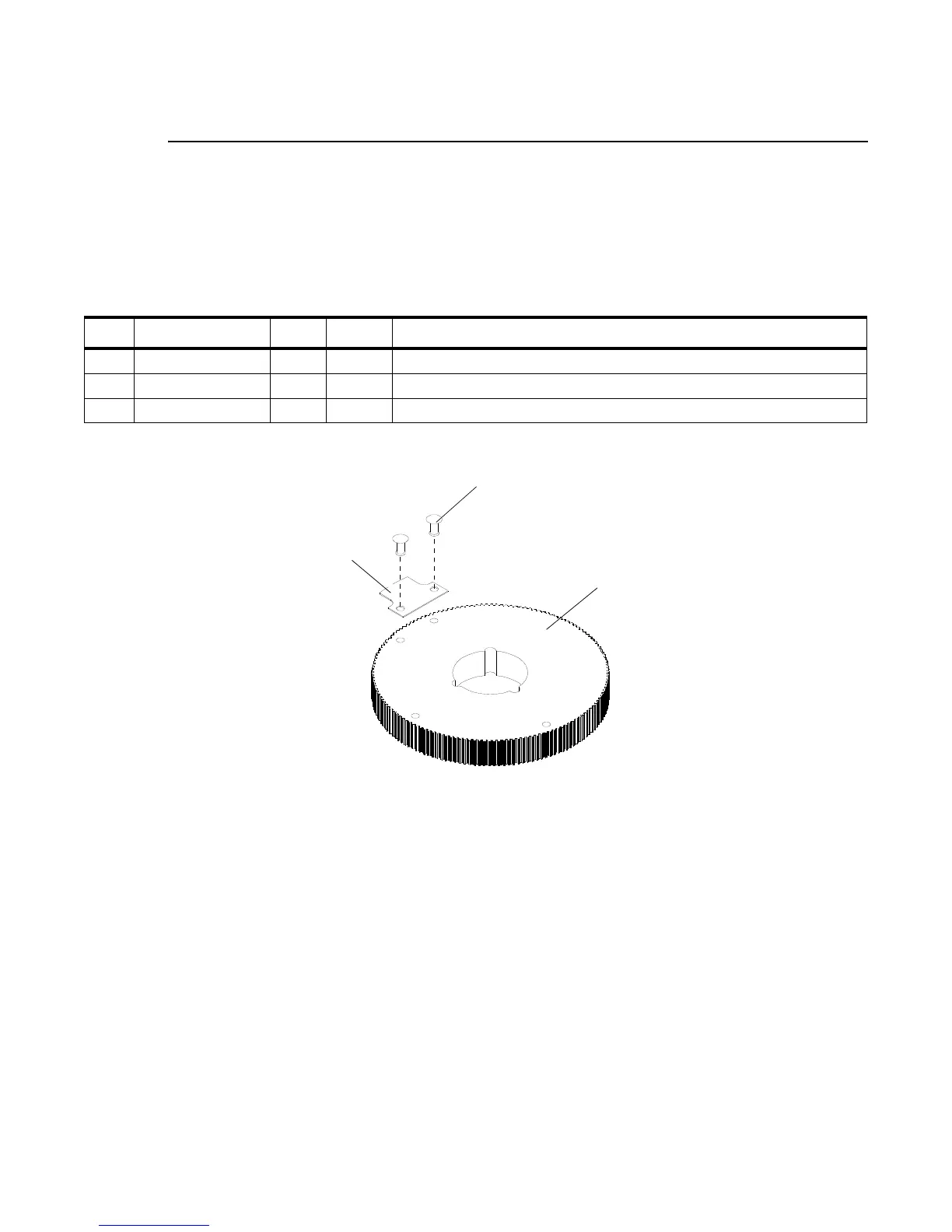

Figure 3-73: Pan Pulley Assembly
No. Item Qty. UM. Description
1 10.9678.0750 1 EA TIMING PULLEY, 2MM GT 150 TOOTH
2 10.9678.0855 1 EA PAN FLAG
3 53.6530.0009 2 EA RIVET, 1/8"OD POP 0.126-0.187GL (changed 10-05-06)
1
2
3 (x2)
