Vari Lite VL3000 - Panel Assembly

ENCLOSURE ASSEMBLY : PANEL ASSEMBLY
02.9678.0010 F 167
3
Panel Assembly
21.9678.0805 Rev L
Refer to Figure 3-69

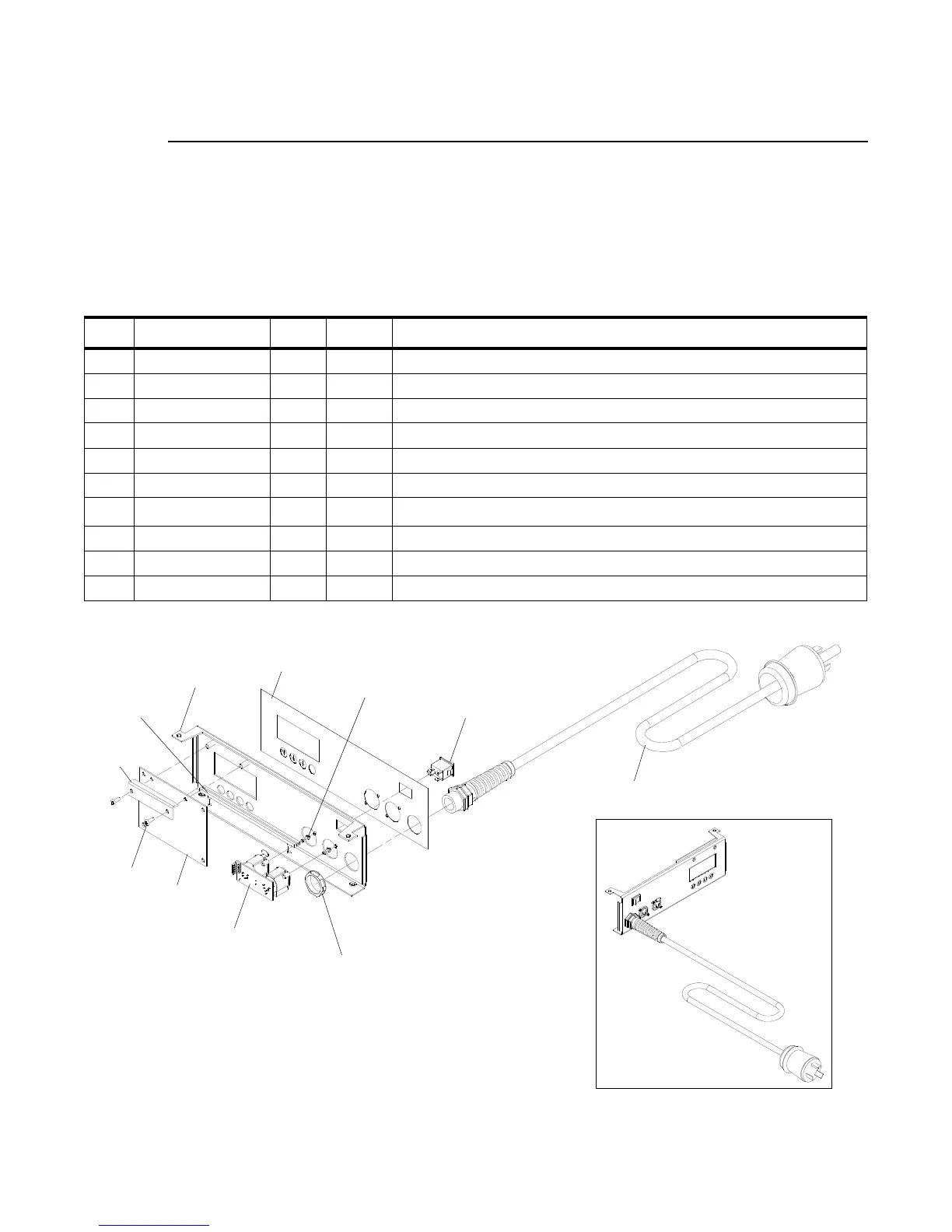

Figure 3-69: Panel Assembly
No. Item Qty. UM. Description
1 10.9678.0852.01 1 EA LAYOUT, ENCLOSURE OVERLAY (changed 01-06-04)
2 10.9678.0859 1 EA BRACKET, INPUT
3 10.9678.0872 1 EA STIFFENER, DISPLAY BOARD (added 05-26-05)
4 24.9663.3830 1 EA PCB ASSY, DMX INPUT (changed 07-01-06)
5 24.9678.3825 1 EA PCB ASSY, DISPLAY (changed 07-01-06)
6 25.9678.0810 1 EA CABLE ASSY, AC INPUT PIGTAIL (changed 04-28-05)
7 51-0541 4 EA
SCREW, 4-40 X 3/8" HI-LO
®
BLK ZINC PLT (changed 05-30-06)
8 53.6558.0009 2 EA SCREW, 6-32 X 3/8"LG PPZ SEMS EXT ZINC PLT
9 55.2284.0001 1 EA CARD GUIDE, SNAP-IN 3" LONG
10 74.2000.0001 1 EA SWITCH, ROCKER 10A 250VAC HORIZ NON-ILLUM
1
2
3
4
5
7 (x4)
8 (x2)
Included with item 6
10
6
9
