Vari Lite VL3000 - Stationary Concave Lens Assembly

VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
136 02.9678.0010 F
Stationary Concave Lens Assembly
21.9678.0920 Rev A (Wash Only)
Refer to Figure 3-47

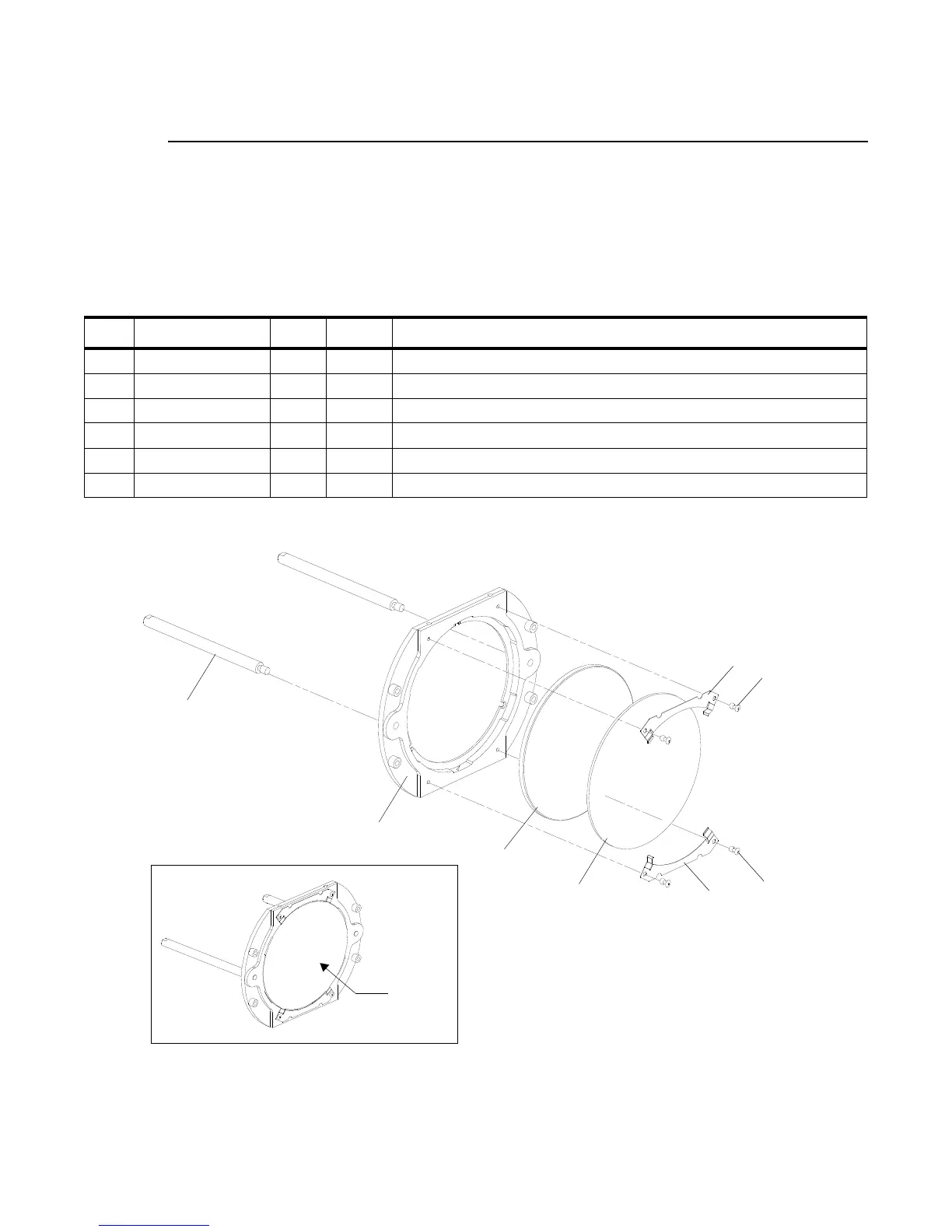

Figure 3-47: Stationary Concave Lens Assembly
No. Item Qty. UM. Description
1 10.9678.0927 2 EA BEARING SHAFT, BEAM SPREADER
2 10.9678.0928 2 EA LENS CLAMP, BEAM SPREADER
3 12.9678.0168 1 EA MASKED, CONCAVE LENS ARRAY MEDIUM
4 12.9678.0925 1 EA CONCAVE LENS MOUNT, MACHINED
5 42.9678.1169 1 EA DIFFUSION LENS, FRONT, WASH
6 53.6530.0002 4 EA RIVET, 1/8"OD POP .063-.125 GR.LENGTH
1 (x2)
2
5
3
4
6 (x2)
Etched side
of lens
2
6 (x2)
