Lamp Supply to Relay Cable Assembly
25.9678.0829 Rev A
Refer to Figure 3-103

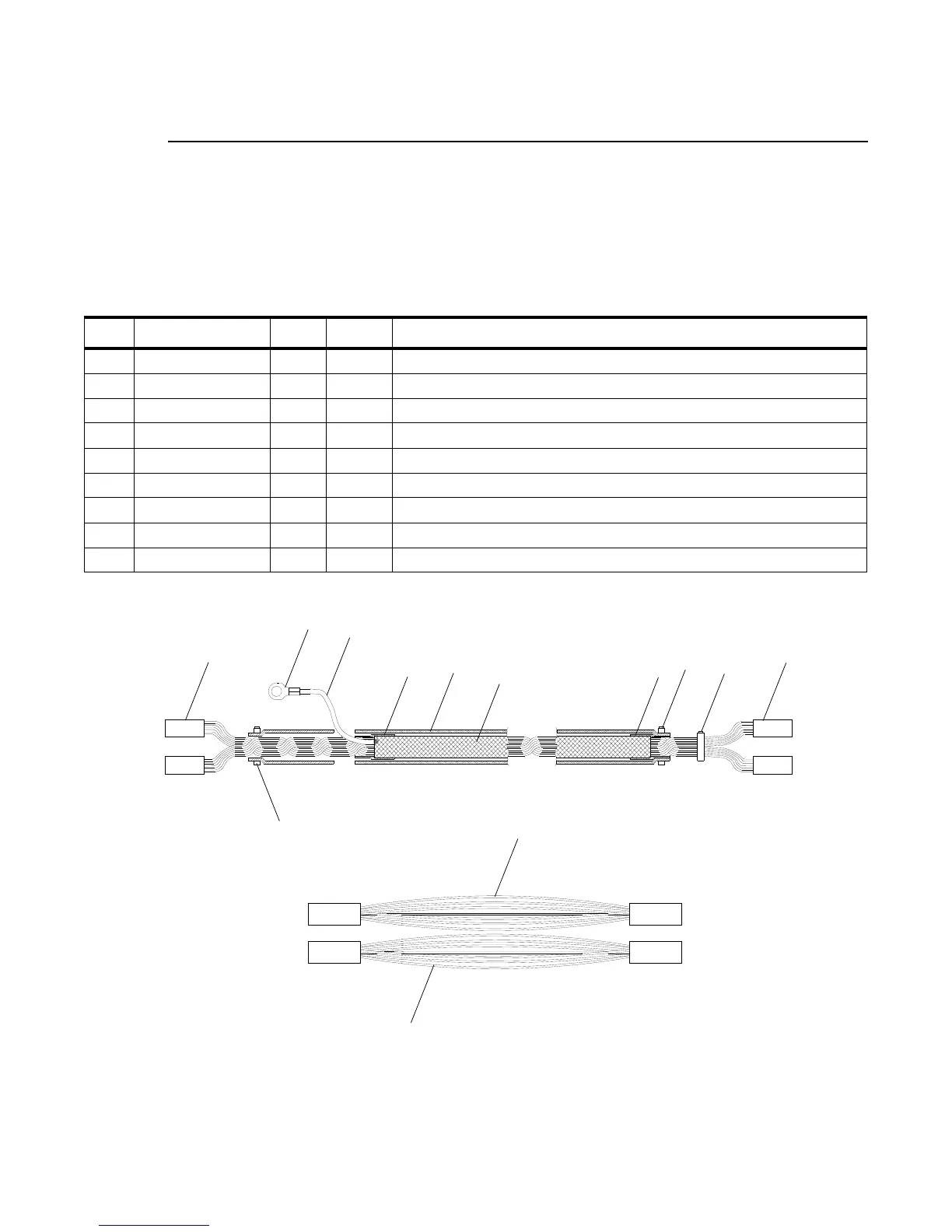

Figure 3-103: Lamp Supply to Relay Cable Assembly
No. Item Qty. UM. Description
1 52.8245.0001 1 EA TERM, RING #10 16 - 14 AWG REEL PIDG
2 52.8312.0001 4 EA RECP, FASTON 1/4" 18-14 AWG INSULATED VO
3 55.2183.0001 0.33 FT HEATSHRINK, 1/2" BLACK
4 55.2186.0001 3 EA CABLE TIE, 0.10" WD 4.00" LG SMALL
5 55.6699.0003 3.19 FT SLEEVING, 1/2" NOM. DIA POLY EXP BRAIDED
6 73.3516.0504 0.58 FT WIRE, 16 AWG 300V 105 DEG C PVC GRN/YEL UL 1569
7 73.7089.0000 34.41 FT WIRE, 22 AWG BLK 300V UL1180 TEFLON 19/34 STRANDED
8 73.7089.0009 34.41 FT WIRE, 22 AWG WHT 300V UL1180 TEFLON 19/34 STRANDED
9 73.7130.0005 2.08 FT WIRE, TUBULAR BRAID, 7/16"
7
1
3
2 (x2)
To Relay
From Lamp Supply
2 (x2)
3
4
4
4
5
6
8
9
