VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
96 02.9678.0010 F
Dual Fan Tray/Duct Assembly
21.9678.0660.01 Rev B
Refer to Figure 3-13

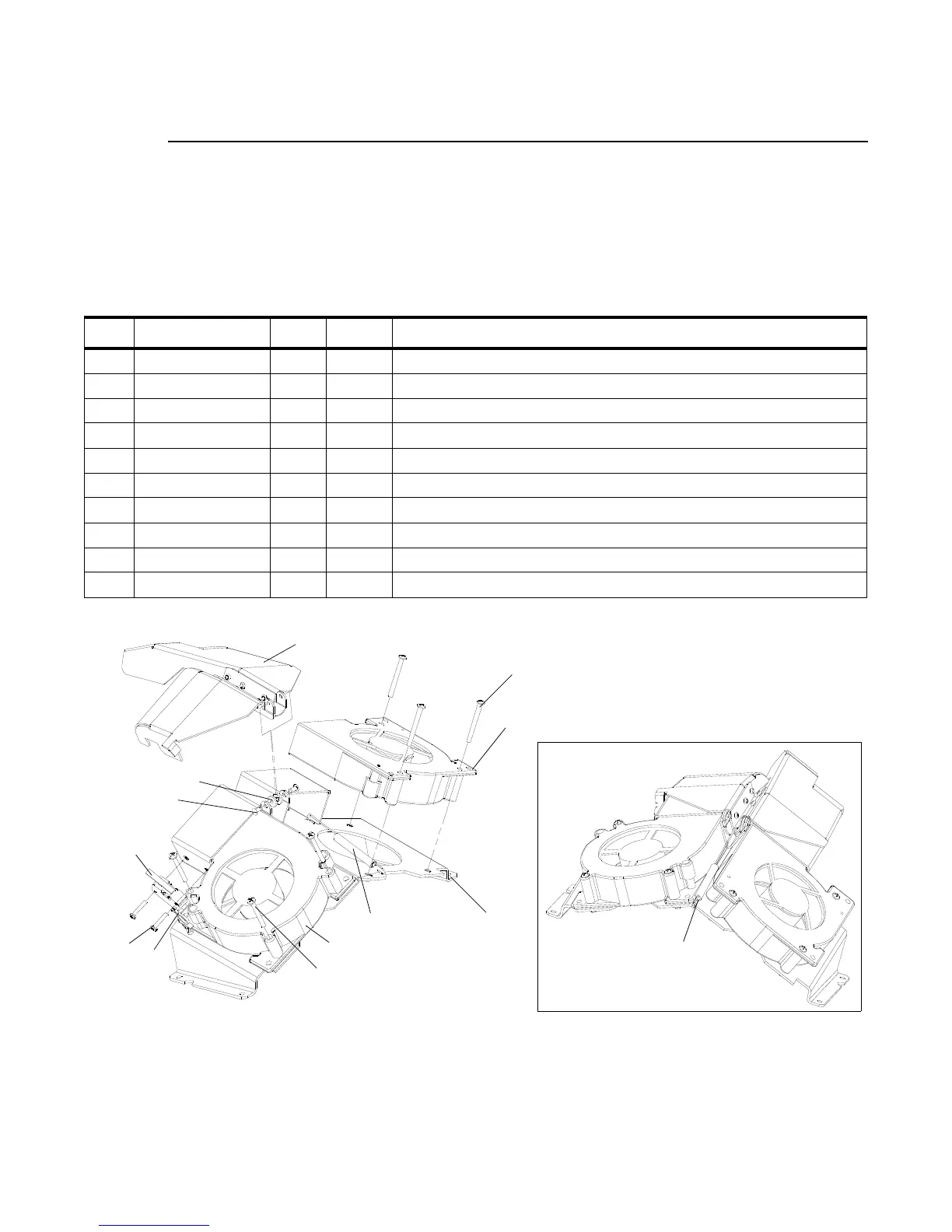

Figure 3-13: Dual Fan Tray/Duct Assembly
No. Item Qty. UM. Description
1 10.9678.0665 1 EA SPRING, EXTENSION ELONGATED HOOK (changed 06-29-06)
2 22.9678.0661 1 EA ASSY, FAN TRAY
3 22.9678.0665 1 EA DUCT ASSY
4 23.9678.0684 2 EA FAN ASSY, HEAD FRONT
5 53.5506.1375 6 EA SCREW, 6-32 X 1 3/8"LG PPB
6 53.6519.0001 2 EA SCREW, 4-40 X 5/8" PPZ
7 53.6530.0006 2 EA RIVET, 1/8"OD POP .188-.250GL
8 55.6538.0002 2 EA WASHER, #6 NYLON NATURAL
9 55.6818.0002 1 EA STANDOFF, 45 DEG NYLON 6/6 KUR
10 74.1099.0001 1 EA SWITCH, MINIATURE 5AMP 150DEG
1
2
3
4
5 (x3)
6 (x2)
7 (x2)
8 (x2)
9
10
5 (x3)
4
Spring installed
as shown
