HEAD ASSEMBLY : DIMMER WHEEL ASSEMBLY
02.9678.0010 F 127
3
Dimmer Wheel Assembly
22.9678.0435 Rev D
Refer to Figure 3-38

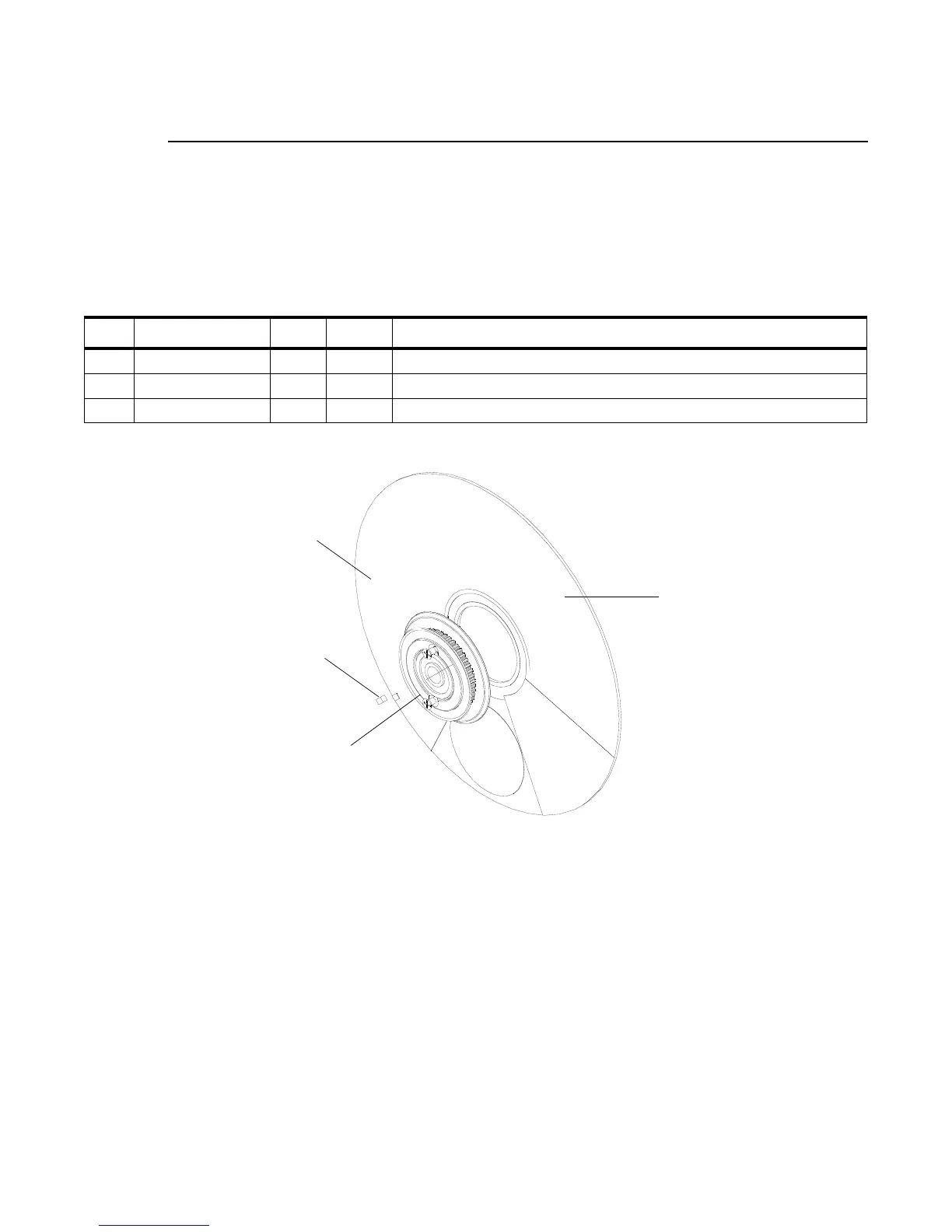

Figure 3-38: Dimmer Wheel Assembly
No. Item Qty. UM. Description
1 22.9678.0420 1 EA PULLEY ASSY, WITH BEARING
2 41.9678.0494 1 EA GLASS, COATED DIMMER WHEEL (changed on 01-23-04)
3 55.2256.0001 1 EA MAGNET, 2:17 SMCO 2MM X 2MM
1
2
3
Coated Side
