ENCLOSURE ASSEMBLY : PAN MOTOR ASSEMBLY
02.9678.0010 F 173
3
Pan Motor Assembly
21.9678.0864 Rev E
Refer to Figure 3-74

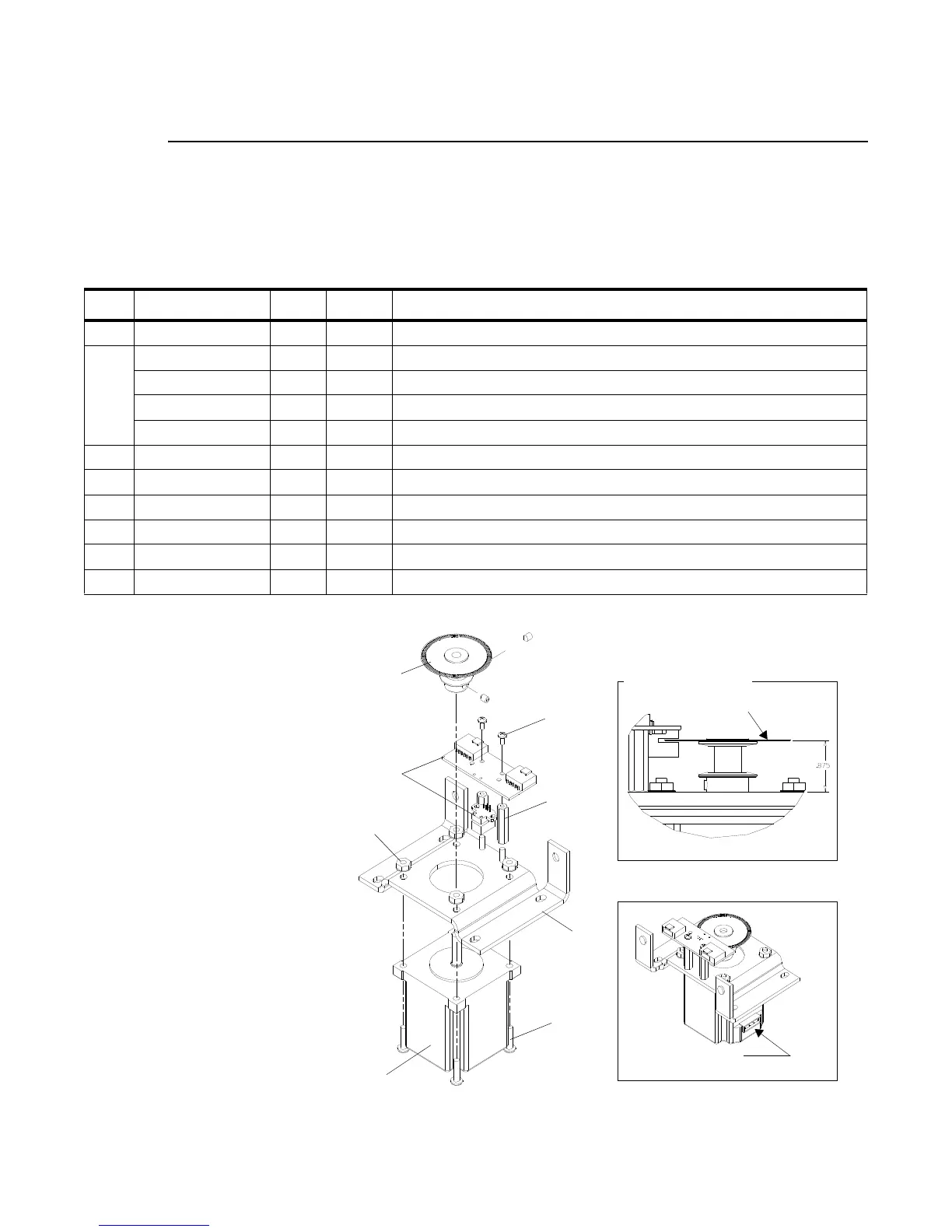

Figure 3-74: Pan Motor Assembly
No. Item Qty. UM. Description
1 10.9678.0865 1 EA PLATE, PAN MOTOR MOUNT
2 21.9678.0828 1 EA ASSY, DRIVE PULLEY, PAN
- 10.9678.0720 1 EA CODEWHEEL, 120 COUNT LARGE ID
- 10.9678.0749 1 EA TIMING PULLEY, 2MM GT 17 TOOTH
- 53.5562.0250 1 EA SCREW, 8-32 X 1/4" SET FLAT POINT
3 24.9678.9729 1 EA PCB ASSY, VL3000 PAN ENCODER (changed 06-27-07)
4 44.9678.0680 1 EA MOTOR, 3 PHASE SIZE 23 HIGH TORQUE
5 53.2200.0008 4 EA NUT, 8-32 KEPS SS
6 53.6546.0001 4 EA SCREW, 8-32 X 5/8" PPB
7 53.6682.0002 2 EA SCREW, 4-40 X 1/4"LG PPZ SEMS-EXT
8 55.2132.0014 2 EA STANDOFF, 1/4"HEX 4-40 1.062" LG CS (changed 05-18-06)
1
2
3
4
5 (x4)
6 (x4)
7 (x2)
8 (x2)
Connector oriented
Pulley Height Detail
Codewheel
on this side
Note: Vari-Lite recommends
that this motor be replaced as a
complete assembly. Although
you can replace only the motor,
the pulley (Item 2) is bonded to
the motor shaft during
assembly and cannot be
removed intact. If you order a
replacement motor (Item 4),
also order the pulley (Item 2).
Contact Vari-Lite Customer
Service for installation
information.
To Next Page
