Vari Lite VL3000 - Head Front Fan Assembly - VL3000 Q Only

VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
98 02.9678.0010 F
Head Front Fan Assembly - VL3000Q only
23.9678.0699 Rev A
Refer to Figure 3-14

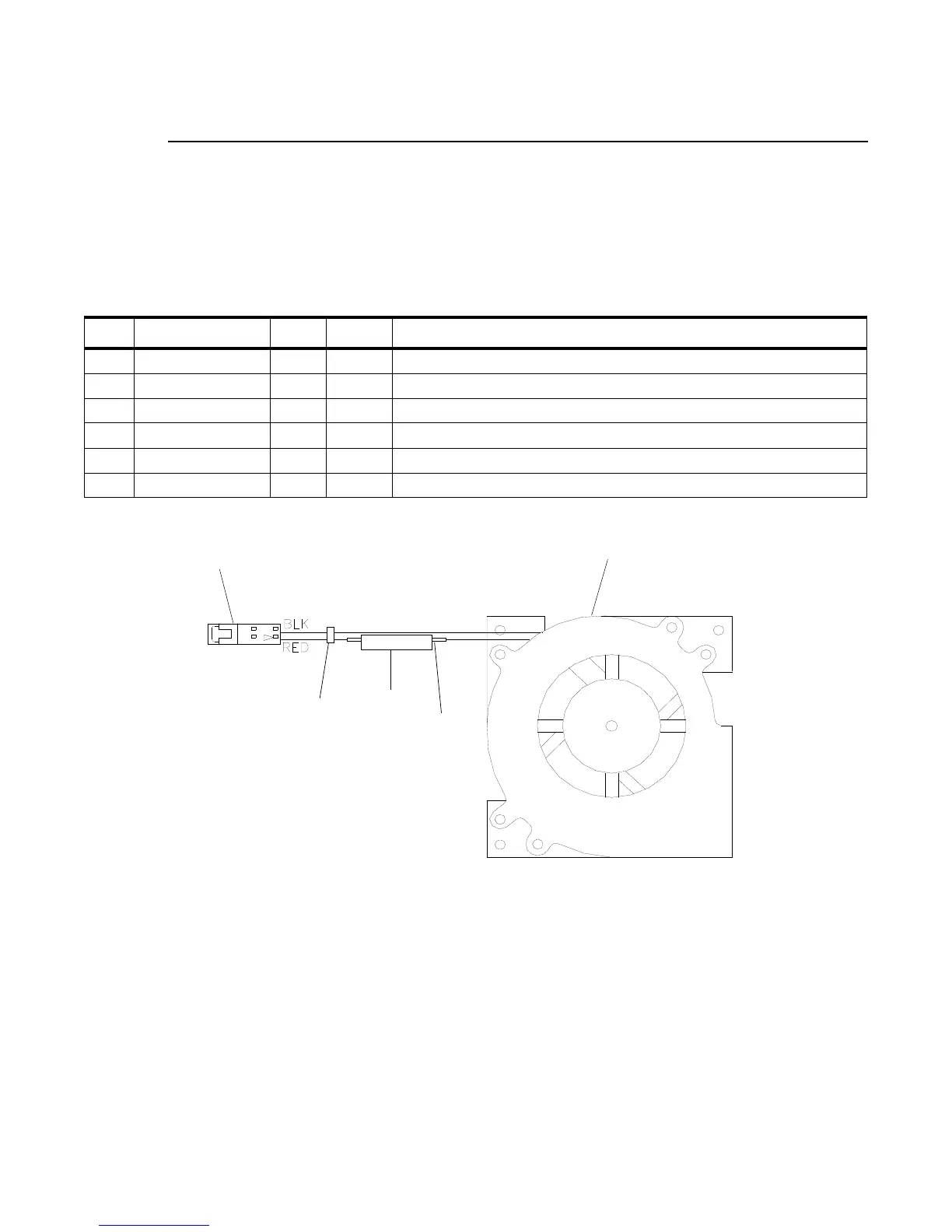

Figure 3-15: Head Front Fan Assembly - VL3000Q only
No. Item Qty. UM. Description
1 40.7125.0001 1 EA FAN, 24V FAL6F24LH
2 52.6523.0002 1 EA CONN, HOUSING 2POS PLUG SHROUDED WIRE TO WIRE
3 52.8347.0001 2 EA CONTACT, 24-30AWG MALE CRIMP
4 55.2186.0001 1 EA CABLE TIE, .10 X 4" SMALL
5 55.2268.0125 1 EA HEATSHRINK, 1/8" CLEAR KYNAR UL 600V 150 DEG C
6 60.8440.6801 1 EA RESISTOR, 10W, 5%, 68 OHM WIREWOUND
1
2
3 (x2)
6
4
5 (2 pl)
