Vari Lite VL3000 - Yoke to AC Fan Cable Assembly

VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
180 02.9678.0010 F
Yoke to AC Fan Cable Assembly
25.9678.0012 Rev A

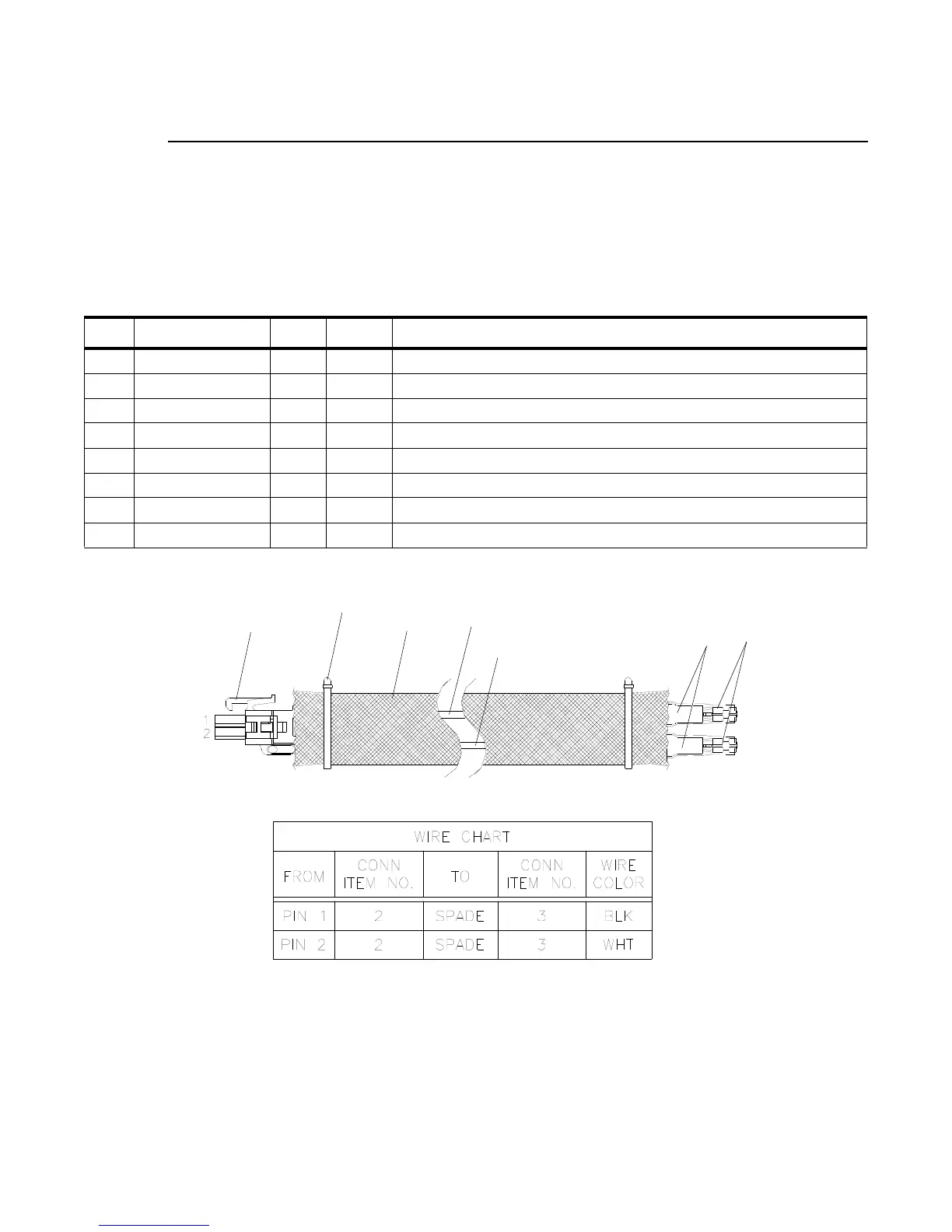

Refer to Figure 3-81
Figure 3-81: Yoke To Fan AC Fan Cable Assembly
No. Item Qty. UM. Description
1 52.6665.0001 2 EA CONTACT, 22-26AWG MALE MATE-N-LOK 2
2 52.6665.0002 1 EA CONN, HOUSING 2 POS PLUG MATE-N-LOC 2
3 52.8413.0001 2 EA RECEPT, FASTON .110 SERIES 22-18AWG INSULATED
4 55.2186.0002 2 EA CABLE TIE, .09"WD 3.750"LG TEFZEL
5 55.2260.0208 2.58 FT SLEEVING, FIBERGLASS 0.208 ID
6 55.2200.0003 0.25 FT HEATSHRINK, 3/16" VITON
7 73.6222.0009 3.00 FT WIRE, 22AWG 600V 200C TFE WHT UL1199 19STRAND
8 73.6222.0010 3.00 FT WIRE, 22AWG 600V 200C TFE BLK UL1199
1, 2
3
4 (x2)
5
6
7
8
