MAINTENANCE PROCEDURES : TILT EOT SENSOR REPLACEMENT
02.9678.0010 F 45
2
Tilt EOT Sensor Replacement
VL Part No: 23.9661.1253
Repair/Replacement Procedure
Step 1. Disconnect luminaire AC input cable from power source.
Step 2. At tilt-side leg, remove yoke leg cover by removing four 6-32x5/16" PPB screws.
Step 3. At sensor bracket, remove two 10-32x1/2" PPZ screws and remove bracket.
Step 4. Disconnect wiring from Tilt Encoder PCB.
Step 5. At sensor, remove two 6-32x3/8" PPZ screws and remove sensor from bracket.
Step 6. Replace by performing steps 2 through 5 in reverse order.

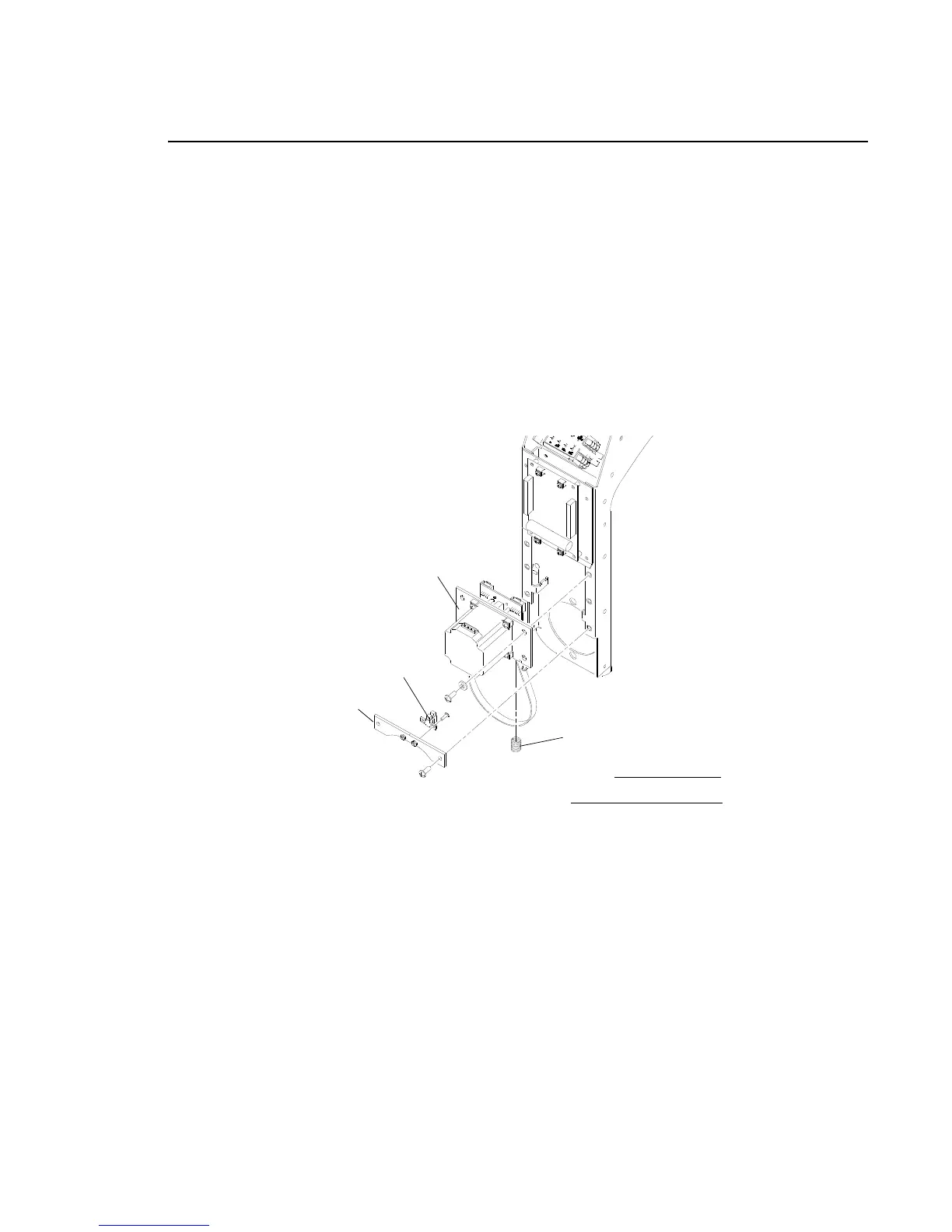

Figure 2-25: VL3000 Tilt EOT Sensor Replacement
Tilt Motor
Head not shown for clarity.
NOTE:
Assembly
Spring
Sensor
Sensor
Bracket
To Next Page
