VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
110 02.9678.0010 F
Right Edge Bearing Assembly
22.9678.1103 Rev C
Refer to Figure 3-24

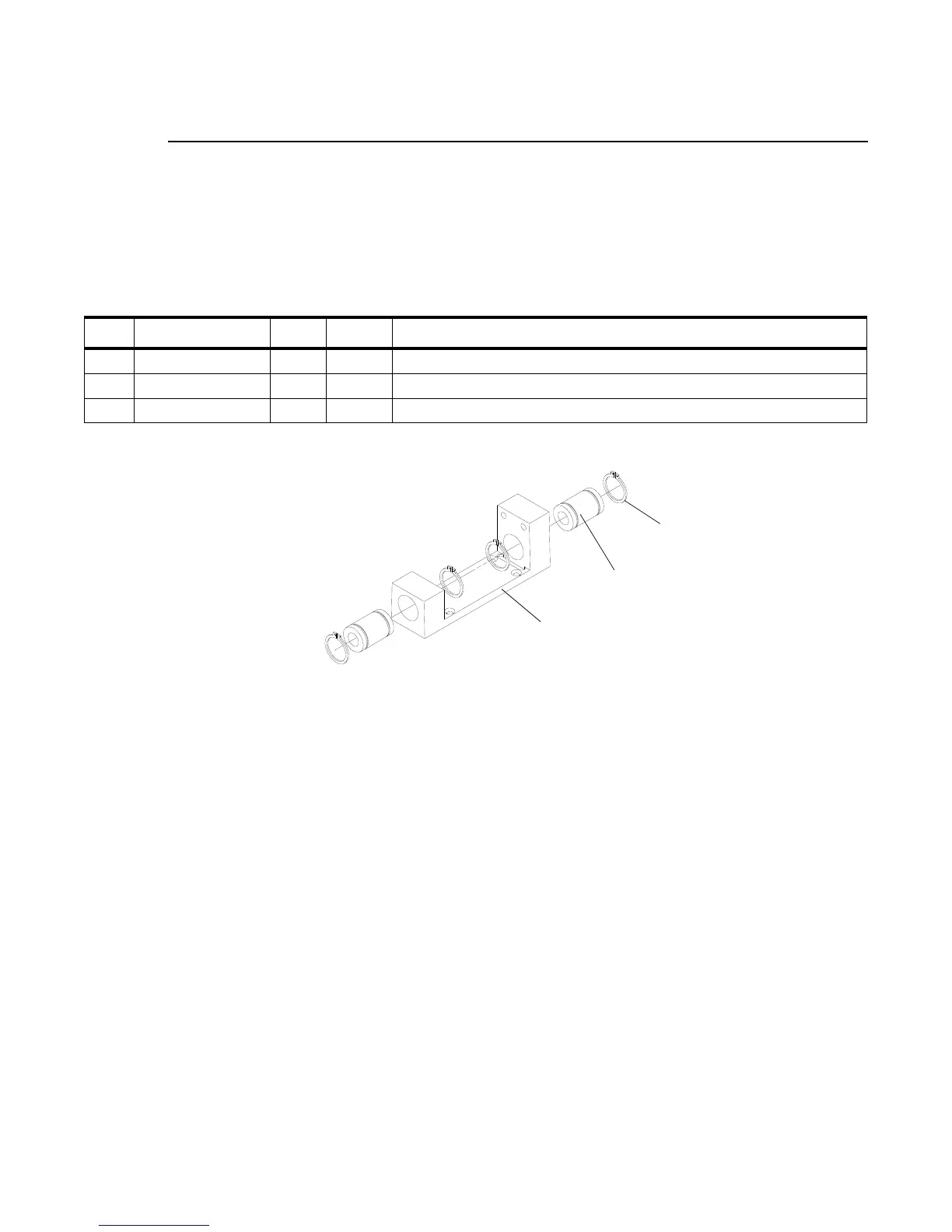

Figure 3-24: Right Edge Bearing Assembly
No. Item Qty. UM. Description
1 12.9678.1102 1 EA EDGE BEARING, MACHINED CASTING RIGHT
2 54.2056.0001 4 EA RING, RETAINING EXTERNAL 19MM
3 55.6776.0010 2 EA LINEAR BUSHING, 10MM STEEL W/PHENOLIC CAGE
1
2 (x4)
3 (x2)
