HEAD/YOKE PCB ASSEMBLIES : COLOR SENSOR PCB #1 MOUNT ASSEMBLY
02.9678.0010 F 147
3
Head/Yoke PCB Assemblies
Color Sensor PCB #1 Mount Assembly
22.9678.0481 Rev B
Refer to Figure 3-56

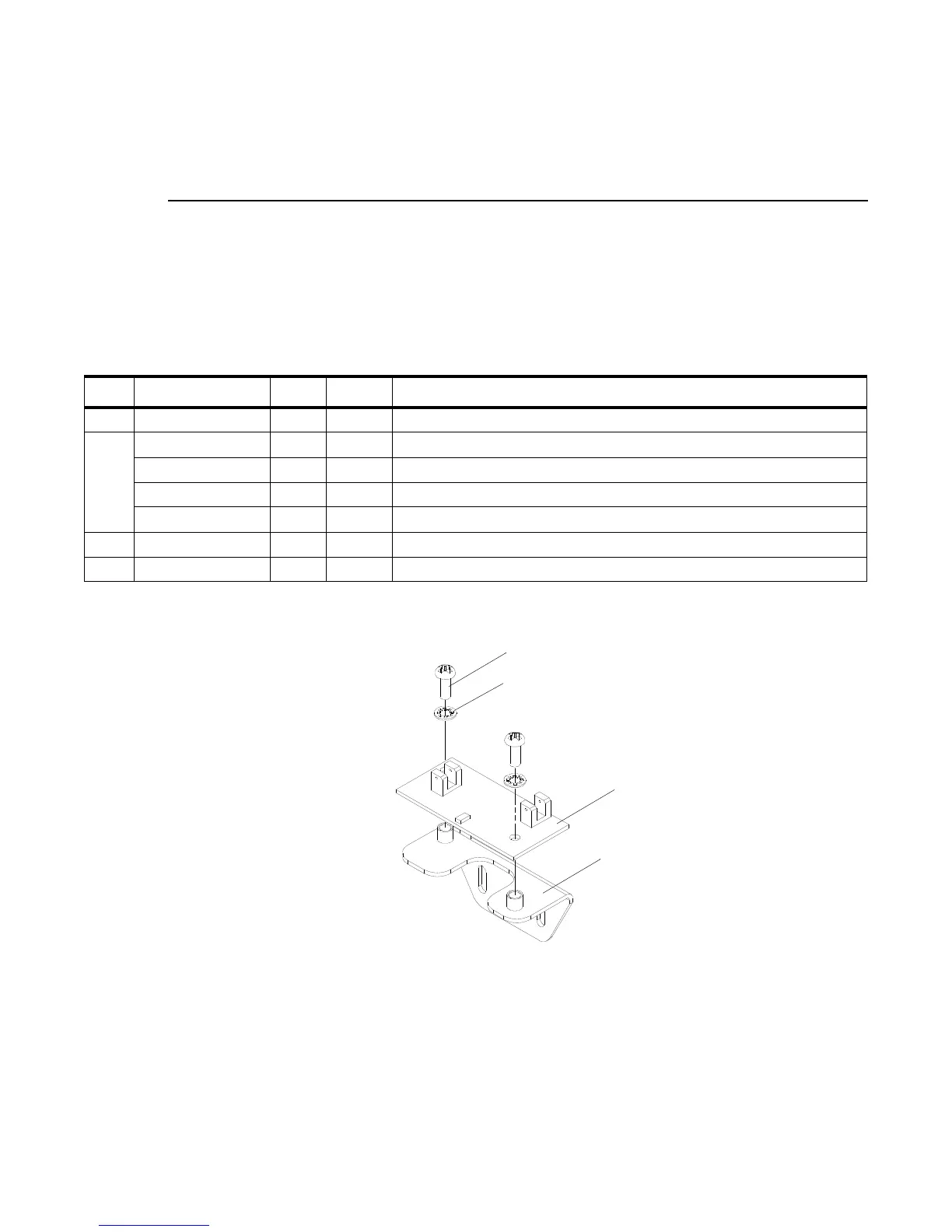

Figure 3-56: Color Sensor #1 PCB Mount Assembly
No. Item Qty. UM. Description
1 10.9678.0482 1 EA PCB MOUNT, COLOR SENSOR #1
2 24.9678.3480 1 EA PCB ASSY, VL3000 COLOR SENSOR #1
- 17.9678.3480 1 EA PCB, COLOR SENSOR #1
- 52.6447.0012 1 EA HEADER, SHROUDED 7 PIN
- 86.7002.0005 2 EA SWITCH, SLOTTED OPTICAL OPB6
3 53.6558.0001 2 EA SCREW, 6-32 X 3/8" PPZ
4 55.3303.0006 2 EA WASHER, #6 LOCK INT.TOOTH SS
1
2
3 (x2)
4 (x2)
