HEAD ASSEMBLY : GROUP 4 LENS ASSEMBLY
02.9678.0010 F 109
3
Group 4 Lens Assembly
22.9678.0199 Rev 0
Refer to Figure 3-23

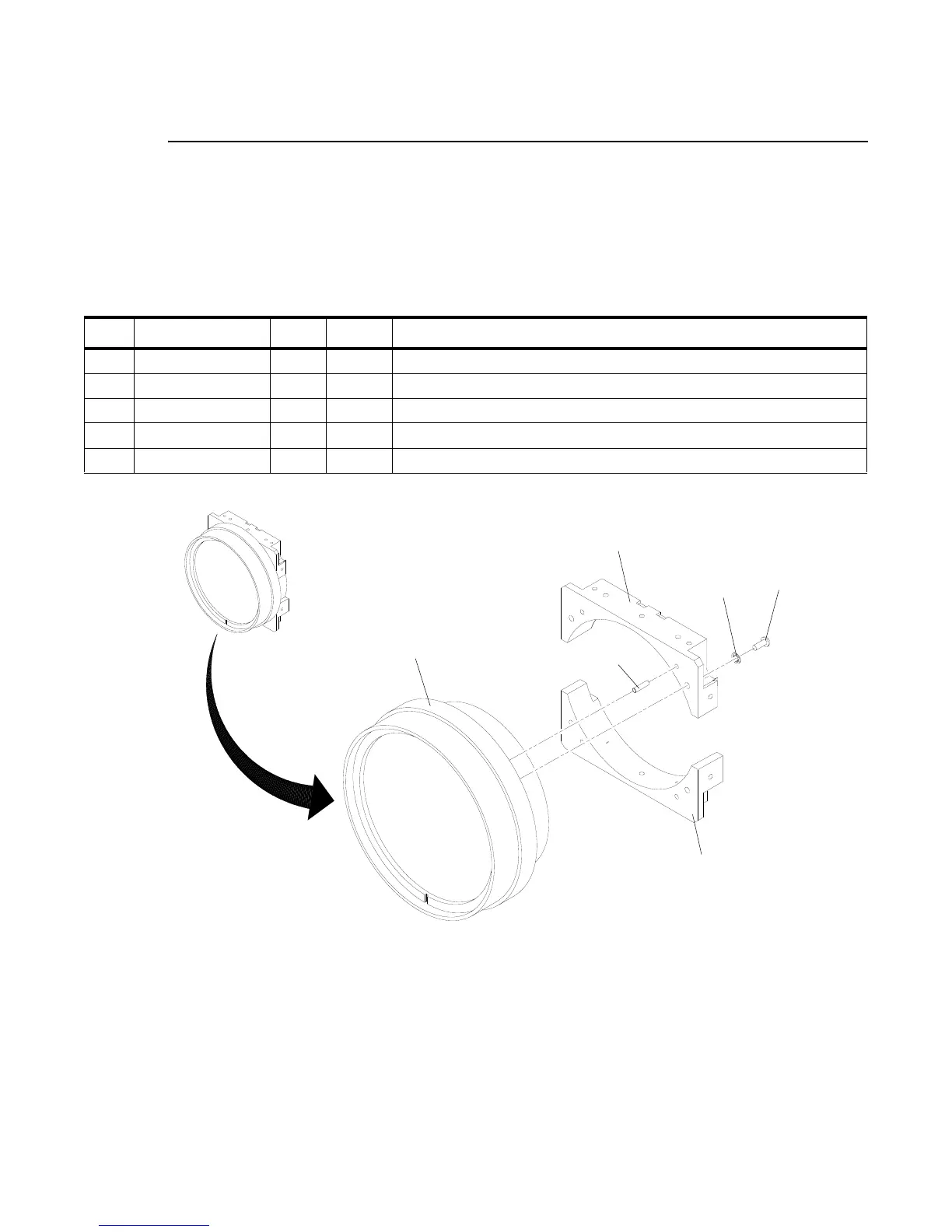

Figure 3-23: G4 Lens Mount Assembly
No. Item Qty. UM. Description
1 12.9678.0198 2 EA RING BLOCK, MACHINED G4
2 22.9678.0174 1 EA LENS ASSY, GROUP 4
3 53.6558.0001 4 EA SCREW, 6-32 X 3/8" PPZ
4 55.3303.0006 4 EA WASHER, #6 LOCK INT.TOOTH SS
5 55.6763.0500 4 EA PIN, DOWEL .5"LG .125"DIA 303SS
1
2
3 (x4)
4 (x4)
5 (x4)
1
