VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
202 02.9678.0010 F
DC Output Cable Assembly
25.9678.0821 Rev E
Refer to Figure 3-101

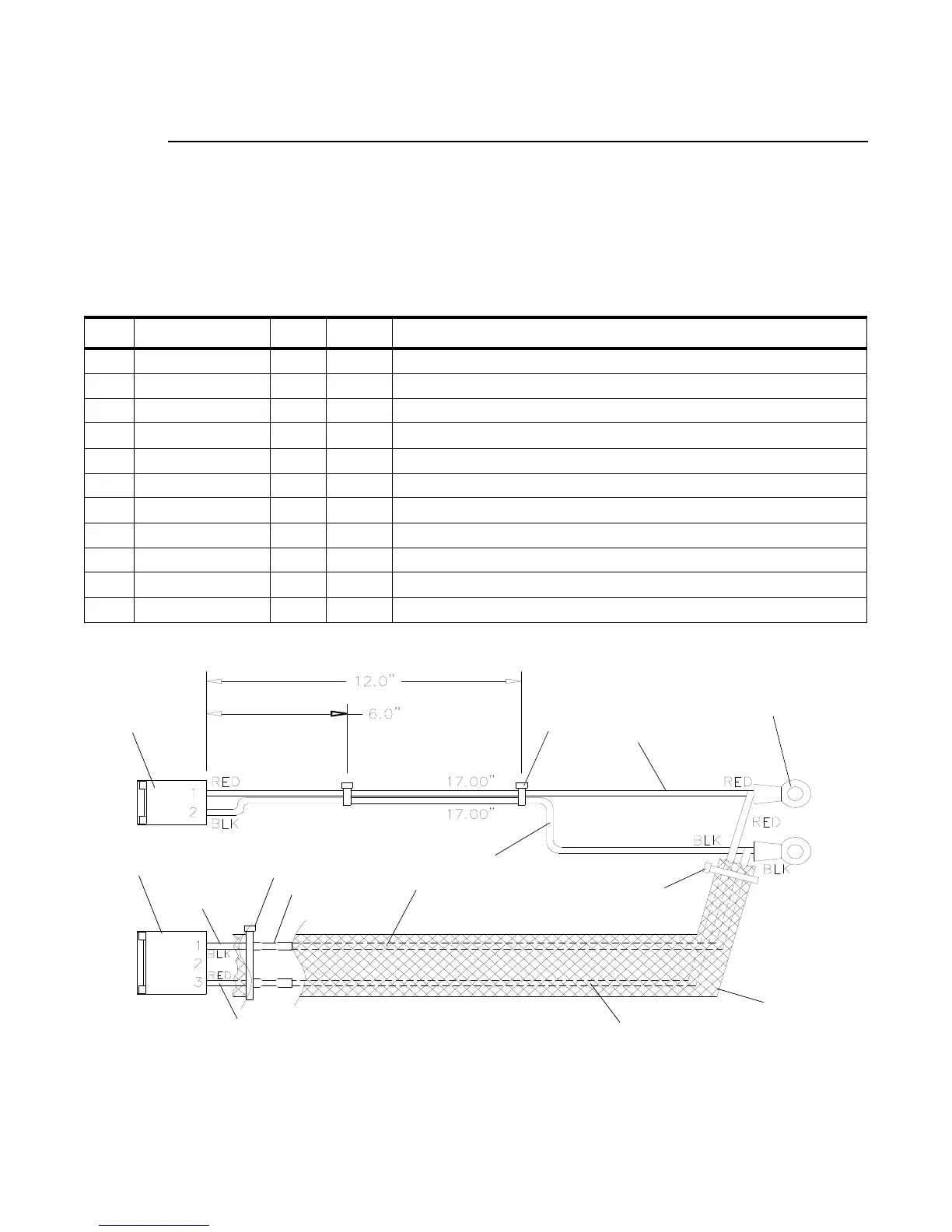

Figure 3-101: DC Output Cable Assembly
No. Item Qty. UM. Description
1 52.6464.0002 1 EA CONN, HOUSING, SL-156 2 POS
2 52.6464.0003 1 EA CONN, HOUSING, SL-156 3 POS
3 52.8231.0004 2 EA TERM, RING #6 BLUE 12-10 AWG INSRT (added 01-20-04)
4 52.8323.0002 4 EA CONTACT, CRIMP, 18-22 AWG SL-156 (changed 05-03-06)
5 52.8274.1614 2 EA CONN BUTT SPLICE 16-14 BLUE .150" OD MAX (added 01-20-04)
6 55.2186.0001 4 EA CABLE TIE, 0.10" WD 4.00" LG SMALL
7 55.6699.0003 2.08 FT SLEEVING, 1/2" NOM DIA POLY EXP BRAID
8 73.3518.0002 1.58 FT WIRE, 18 AWG 300V 105C PVC RED
9 73.3518.0010 1.58 FT WIRE, 18 AWG 300V 105C PVC BLK
10 73.7060.0001 2.08 FT WIRE, 18 AWG HI VOLT RED YOKE LMP (changed 07-26-04)
11 73.7060.0002 2.08 FT WIRE, 18 AWG HI VOLT BLK YOKE LMP (changed 07-26-04)
8
3 (x2)
5 (x2)
2, 4 (x2)
6 (x2)
9 (red)
11 (black)
1, 4 (x2)
9
6
8
8
9
7
6
