Vari Lite VL3000 - Rotating Gobo Wheel Assembly

HEAD ASSEMBLY : ROTATING GOBO WHEEL ASSEMBLY
02.9678.0010 F 87
3
Rotating Gobo Wheel Assembly
21.9678.0210 Rev B
Refer to Figure 3-7

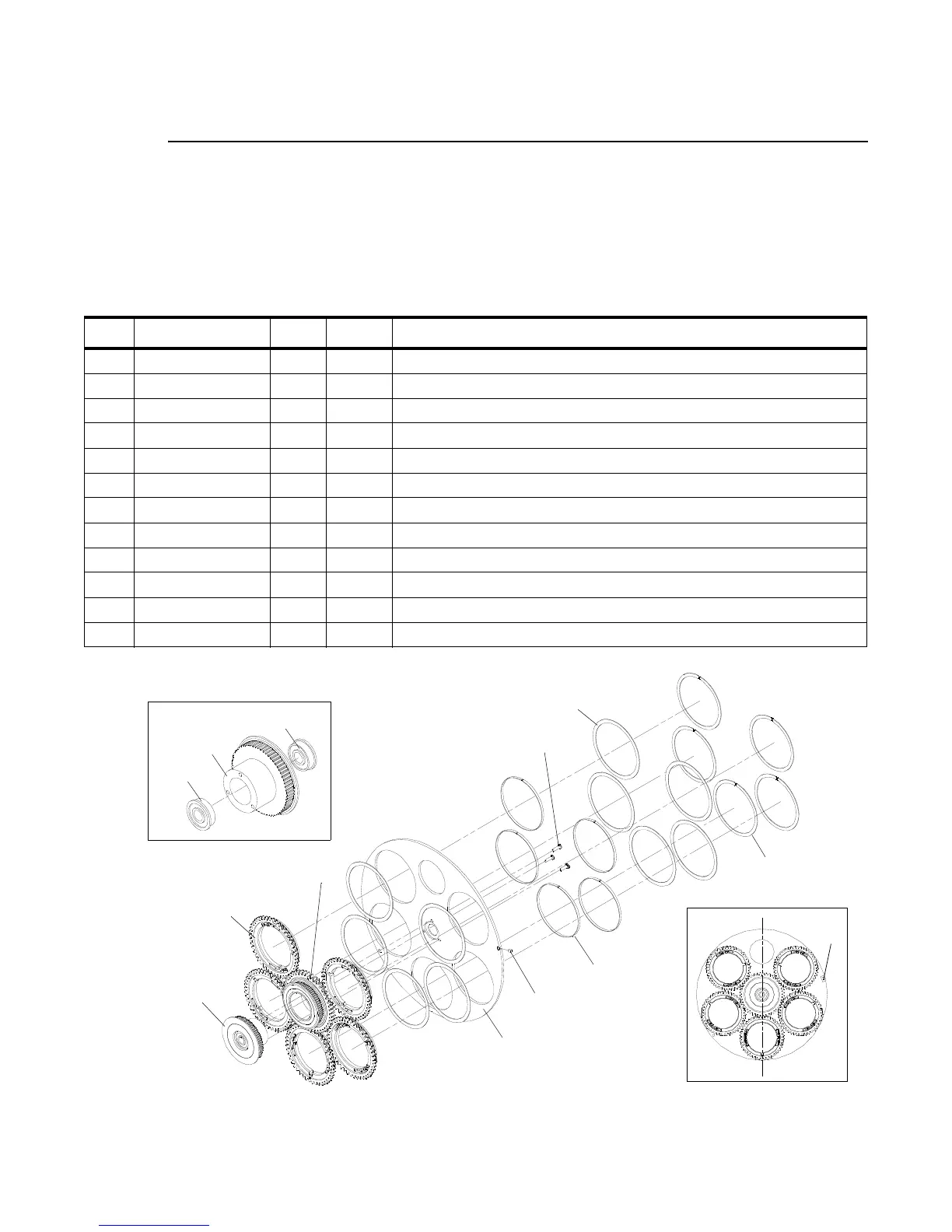

Figure 3-7: Rotating Gobo Wheel Assembly
No. Item Qty. UM. Description
1 10.9663.1211 10 EA SPACER, TEFLON GOBO GEAR
2 10.9663.1240 5 EA BEARING, GOBO WHEEL BORE
3 10.9678.0220 1 EA PLATE, ROTATING GOBO WHEEL
4 10.9678.0224 5 EA RETAINING RING, PLANET
5 22.9678.0230 5 EA ASSY, PLANET GEAR
6 22.9678.0233 1 EA SUN GEAR, MOLDED ELASTOMERIC INTEGRAL BEARING
7 22.9678.0234 1 EA ASSY, PULLEY GOBO WHEEL HUB
7a - 10.9678.0227 1 EA PULLEY, HUB, GOBO WHEEL
7b - 54.1259.0004 2 EA BEARING, RAD. FLANGED .25" ID .625"OD .0005 (changed 6-26-03)
8 53.6650.0001 3 EA SCREW, 2-56 X 5/16"
9 55.2256.0001 1 EA MAGNET, 2:17 SMCO 2MM X 2MM X 3MM
10 10.9678.0250 1 EA MAGNET TAPE
1 (x10)
2 (x5)
3
4 (x5)
5 (x5)
6
7
8 (x3)
9
7a
7b
7b
10
