VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
130 02.9678.0010 F
Magenta Wheel Assembly
22.9678.0476 Rev B
Refer to Figure 3-41

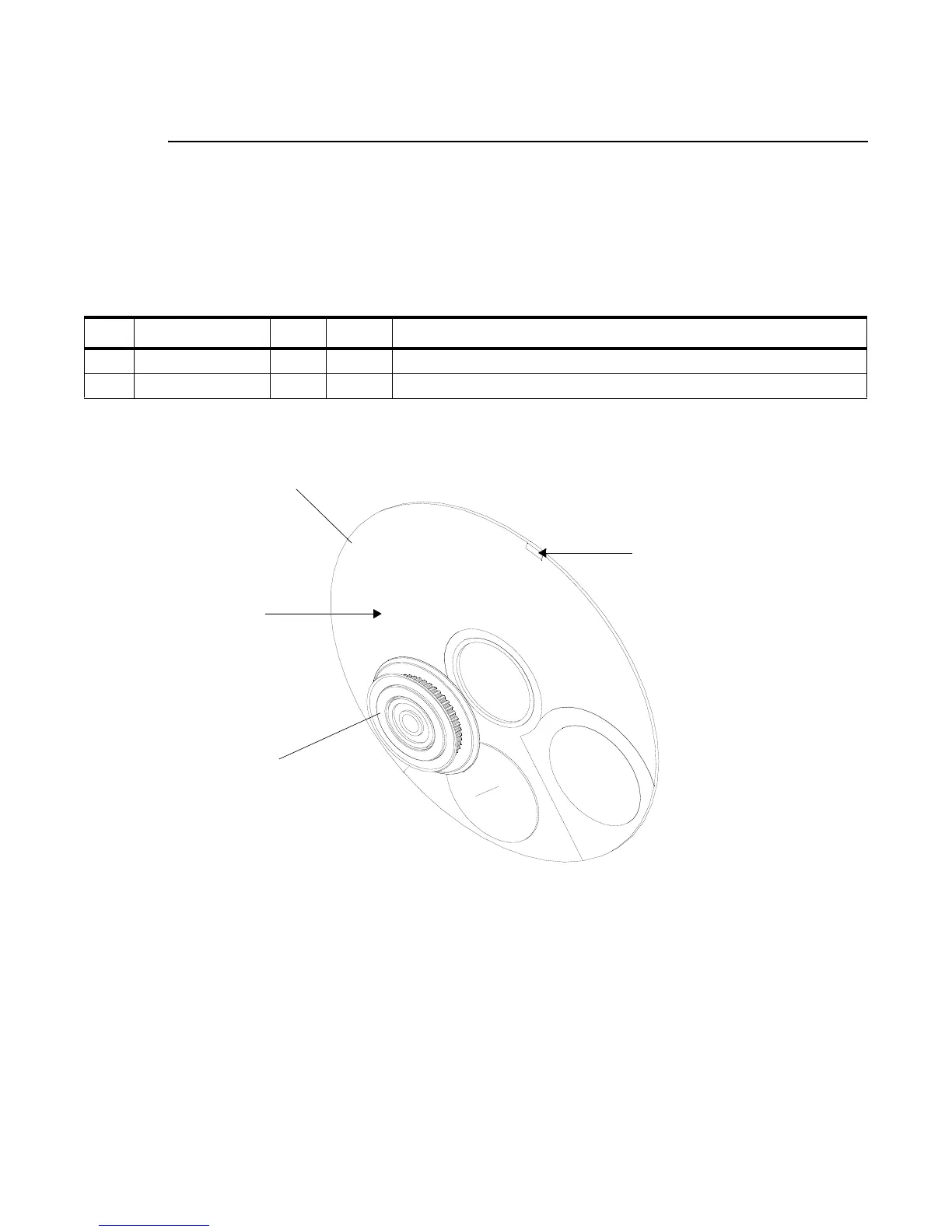

Figure 3-41: Magenta Wheel Assembly
No. Item Qty. UM. Description
1 22.9678.0420 1 EA PULLEY ASSY, WITH BEARING
2 41.9678.0475 1 EA GLASS, MAGENTA COLOR WHEEL
1
2
Painted Timing Mark
Dichroic Coated Side
(Dichroic Coated Side Only)
