Vari Lite VL3000 - Yoke Fan Cable Assembly - VL3000 Q

CABLE ASSEMBLIES : YOKE FAN CABLE ASSEMBLY - VL3000Q
02.9678.0010 F 195
3
Yoke Fan Cable Assembly - VL3000Q
25.9678.0759 Rev A

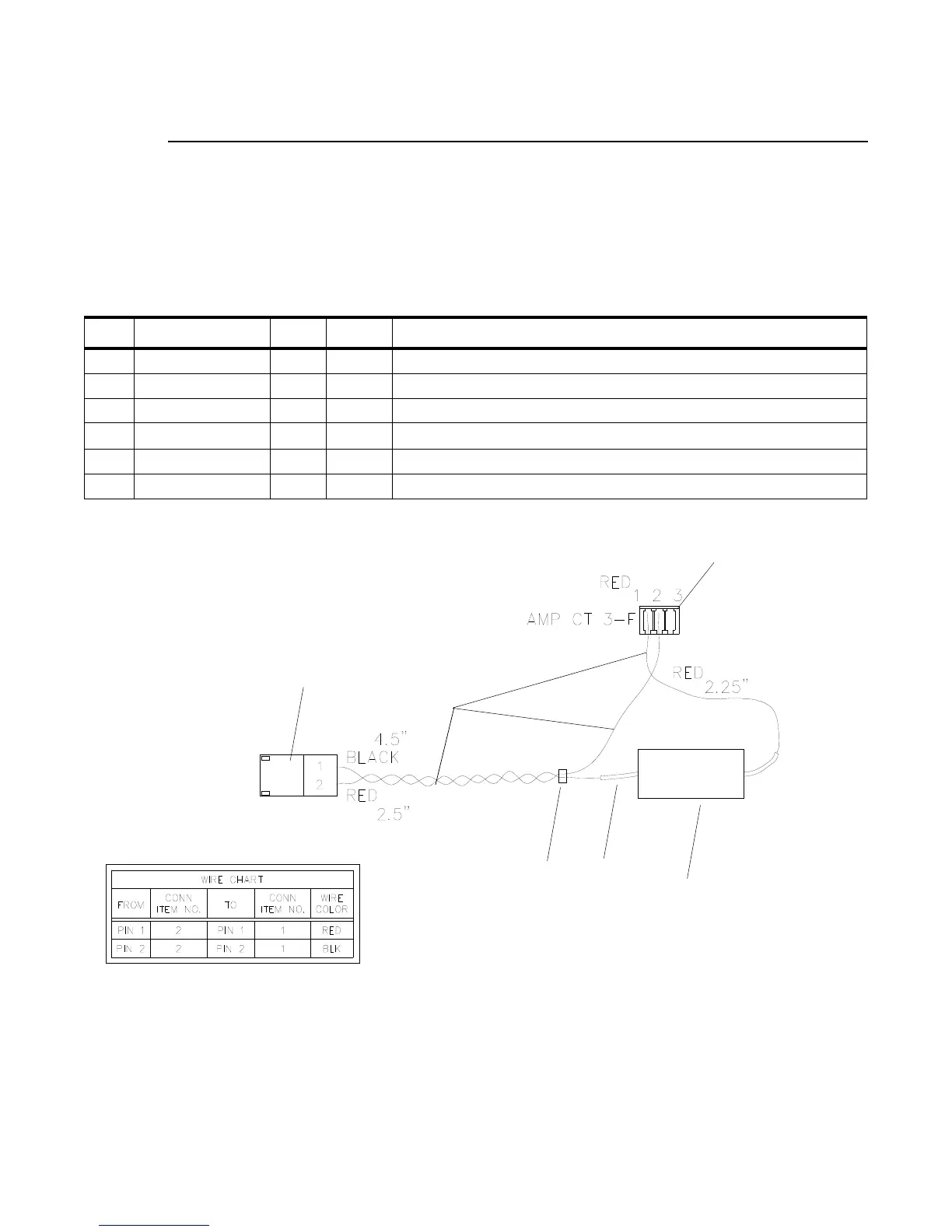

Refer to Figure 3-94
Figure 3-95: Yoke Fan Cable Assembly
No. Item Qty. UM. Description
1 52.6396.3102 1 EA RECEPT, 2 POS MTA100 W/POL TAB BLUE CLSD END
2 52.6423.0003 1 EA HOUSING, 3 POS MT RECEPT, 2MM CT 28-26 AWG
3 55.2186.0001 1 EA CABLE TIE, .10 X 4" SMALL
4 55.2268.0125 1 EA
HEASTRINK, 1/8" CLEAR KYNAR UL 600V 150
O
C
5 60.7440.2002 1 EA RESISTOR, 5W, 5% 200 OHM WIREWOUND
6 73.5126.0002 .5 FT WIRE, 26AWG 2COND 300V 80C <BLK-RED> UL1061, 19STRND
1
2
3
4 (2 pl)
6
5
