Vari Lite VL3000 - Condenser Lens Assembly

VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
138 02.9678.0010 F
Condenser Lens Assembly
21.9678.0940 Rev C (Wash Only)
Refer to Figure 3-49

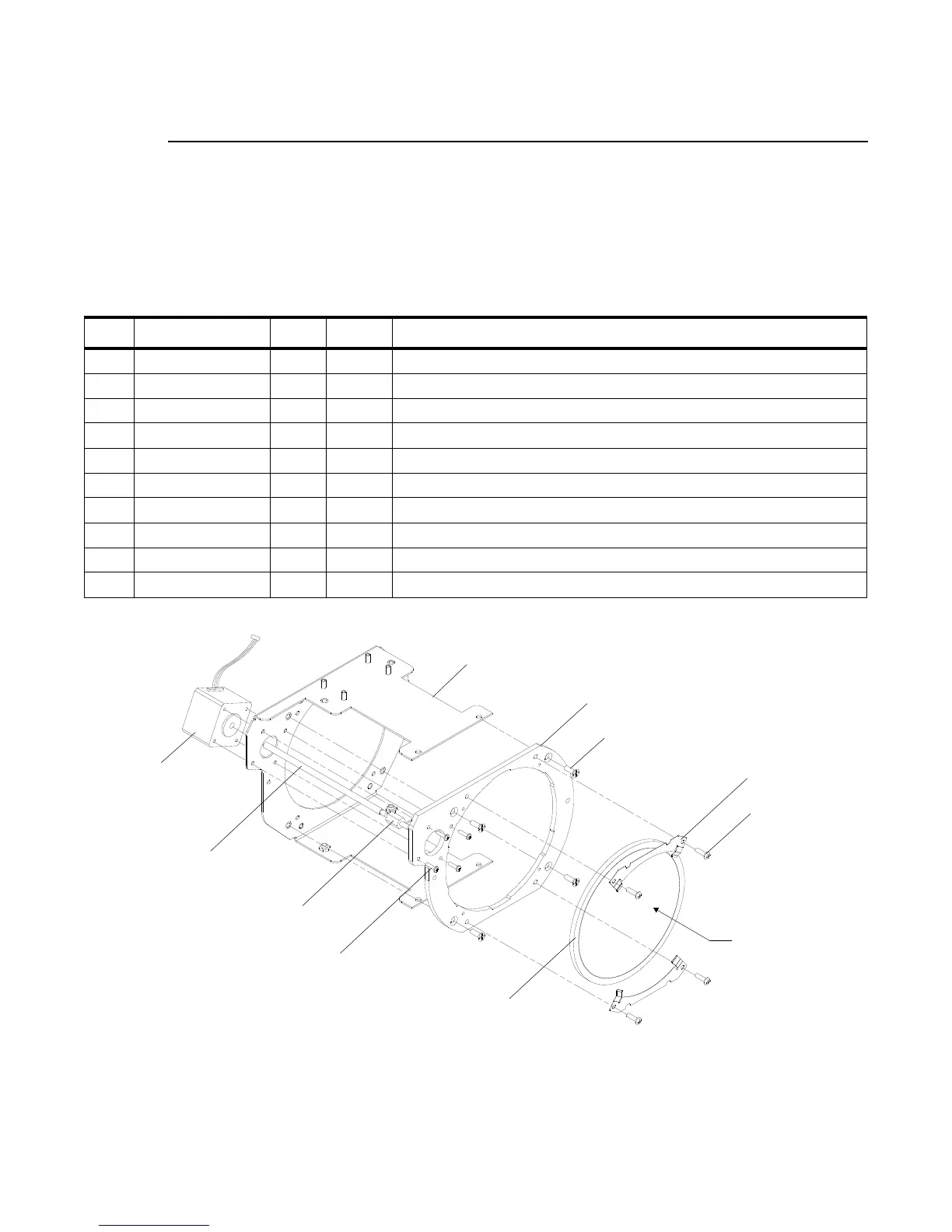

Figure 3-49: Condenser Lens Assembly
No. Item Qty. UM. Description
1 10.9678.0928 2 EA LENS CLAMP, BEAM SPREADER
2 10.9678.0941 1 EA HOUSING, BEAM SPREADER
3 10.9678.0942 1 EA LEAD SCREW, BEAM SPREADER
4 10.9678.0944 1 EA CONDENSER LENS MOUNT
5 23.9678.1120 1 EA LINEAR ACTUATOR ASSEMBLY
6 42.9678.0174 1 EA 127MM CONDENSER LENS
7 53.6552.0001 4 EA SCREW, 8-32 X 1/2" PFZ
8 53.6596.0002 4 EA SCREW, 4-40 X 5/16" PPZ SEMS (changed 3-03-04)
9 53.6613.0008 4 EA SCREW, 6-32 X 1/2" PPZ SEMS (changed 3-03-04)
10 55.6616.0007 1 EA STANDOFF, 3/8" HEX 8-32 0.562" LG MF SS (changed 8-04-03)
Curved side of lens
1 (x2)
2
3
4
5
6
8 (x4)
7 (x4)
9 (x4)
10
