Vari Lite VL3000 - Rod Clamp Assembly

HEAD ASSEMBLY : ROD CLAMP ASSEMBLY
02.9678.0010 F 115
3
Rod Clamp Assembly
22.9678.0149 Rev B
Refer to Figure 3-29

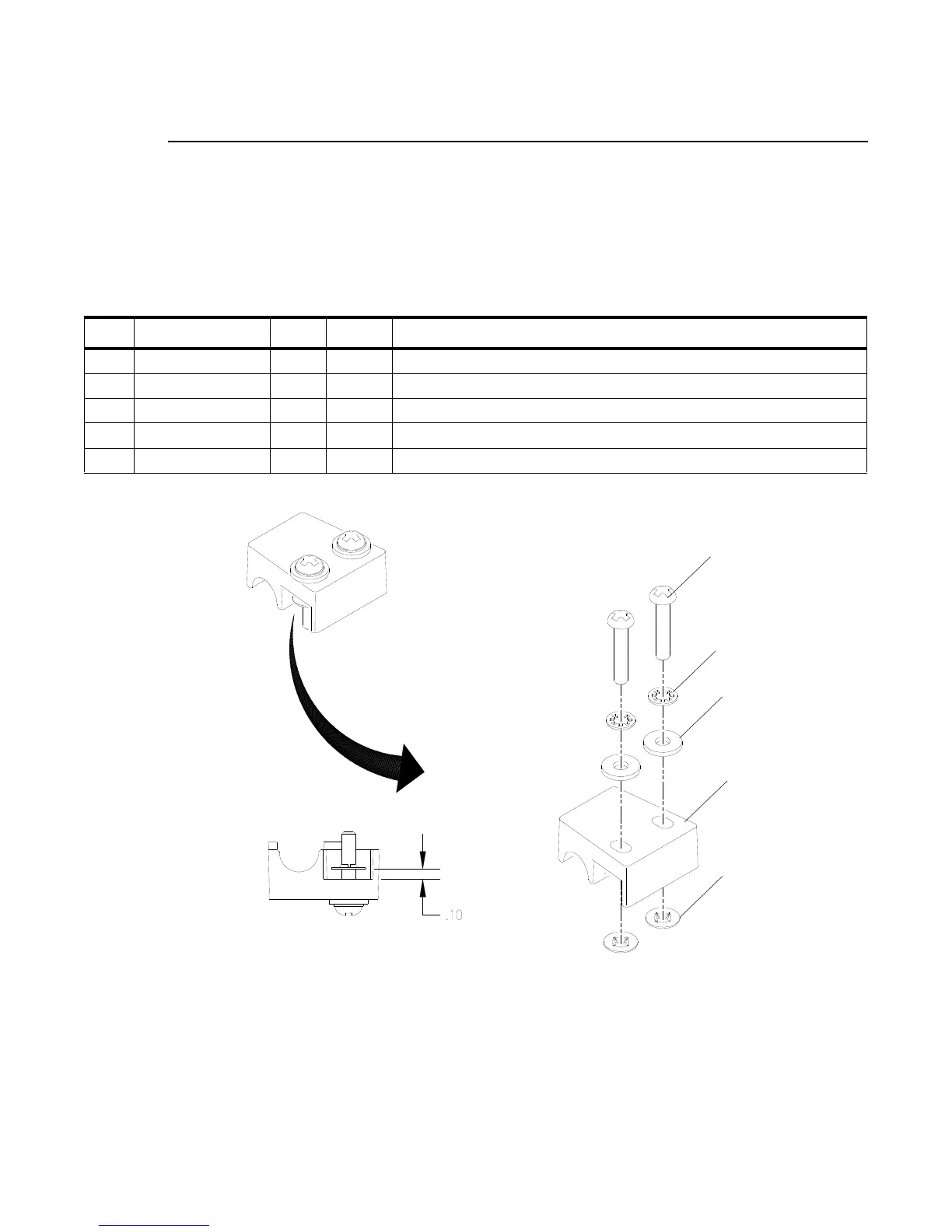

Figure 3-29: Rod Clamp Assembly
No. Item Qty. UM. Description
1 10.9678.0151 1 EA CLAMP, OPTIC ROD CAST
2 53.2008.0006 2 EA SPRING CLIP, 6-32
3 53.6616.0001 2 EA SCREW, 6-32 X 3/4" PPZ
4 55.6528.0001 2 EA WASHER, #6 FLAT ZINC
5 55.6538.0001 2 EA WASHER, #6 LOCK INTERNAL TOOTH
1
3 (x2)
4 (x2)
5 (x2)
2 (x2)
