COMPONENTS : VL3000 WASH LUMINAIRE HEAD AND YOKE COMPONENTS
02.9678.0010 F 7
1
VL3000 Wash Luminaire Head and Yoke Components

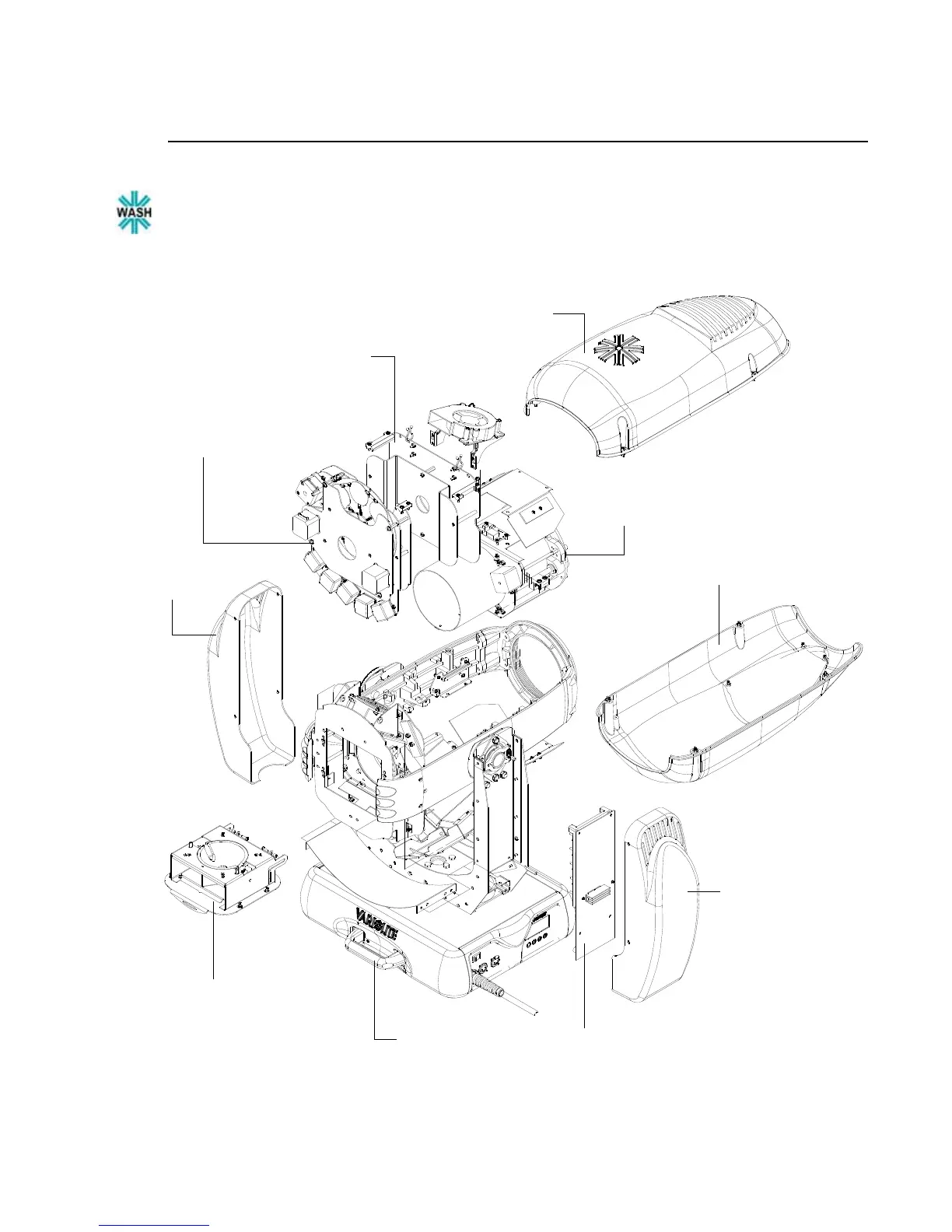

The following illustration shows the major sub-assemblies that are located in the luminaire head and
yoke assemblies.
Houses lens configuration.
Beam Spreader Assembly
Head Cover
Yoke Arm Cover
Yoke Arm
Houses lamp and reflector.
Provides knobs for lamp
Backend Assembly
adjustment.
Main Controller Board (MCB)
Luminaire control circuit board.
Enclosure Assembly
see next page
(attached by tether)
Head Cover
(attached by tether)
Cover
Used in wash version only.
Aperture Assembly
Contains fixed color wheel,
dimmer mechanism, strobe
Color Assembly
mechanism, CYM color mixer
and CTO color correction.
