VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
140 02.9678.0010 F
Beam Spreader Light Baffle Assembly
21.9678.0991 Rev A (Wash Only)
Refer to Figure 3-51

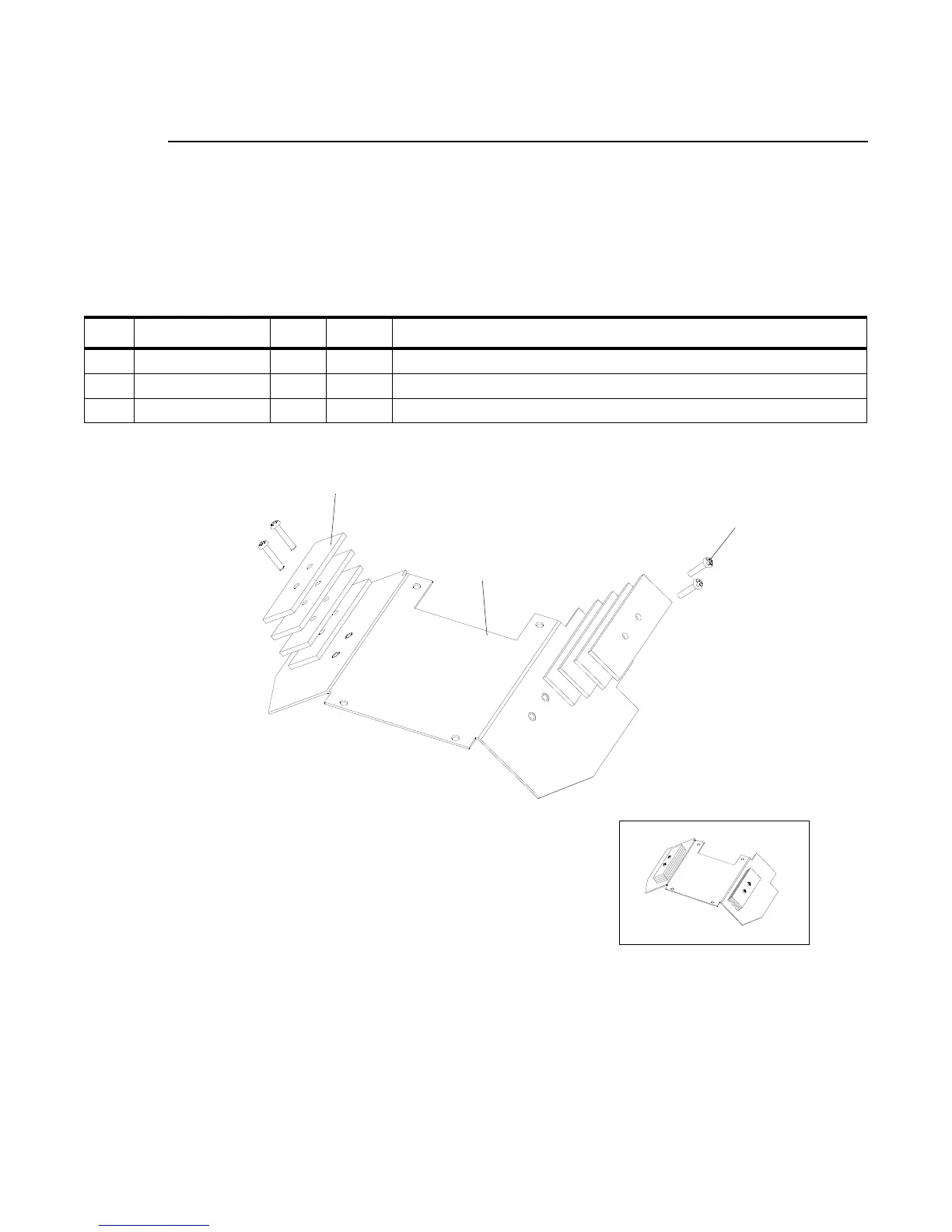

Figure 3-51: Beam Spreader Light Baffle Assembly
No. Item Qty. UM. Description
1 10.9678.0658 8 EA PLATE, COUNTERWEIGHT
2 10.9678.0990 1 EA LIGHT BAFFLE, BEAM SPREADER
3 53.6616.0001 4 EA SCREW, 6-32 X 3/4" PPZ
1 (x8)
2
3 (x4)
