VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
124 02.9678.0010 F
Right Strobe Blade Assembly
22.9678.0467 Rev C
Refer to Figure 3-35

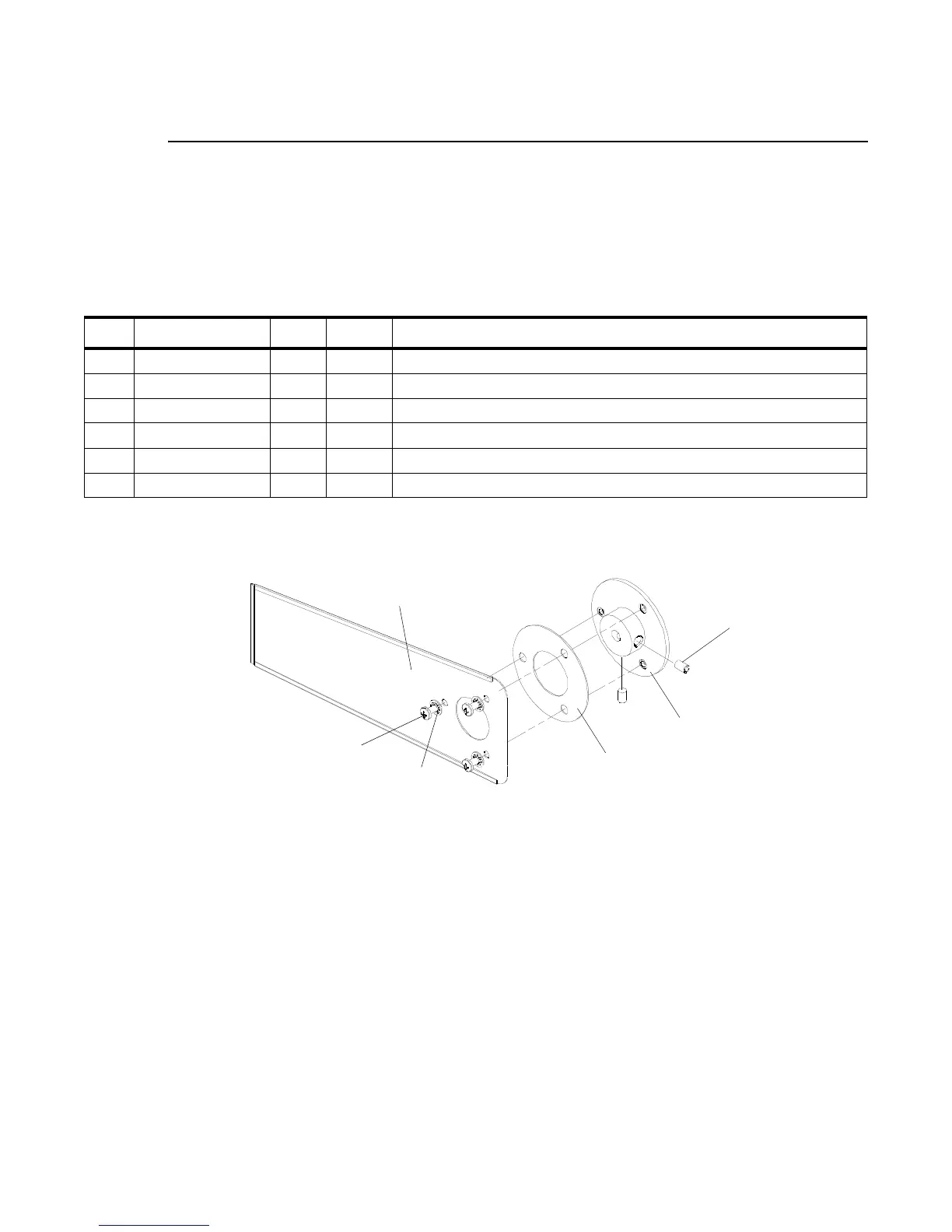

Figure 3-35: Right Strobe Blade Assembly
No. Item Qty. UM. Description
1 10.9678.0464 1 EA STROBE BLADE (changed 07-29-04)
2 10.9678.0432 1 EA HUB, STROBE BLADE
3 10.9678.0466 1 EA STROBE BLADE, DAMPER
4 53.5559.0250 2 EA SCREW, 6-32 X 1/4" SET CONE POINT
5 53.6597.0001 3 EA SCREW, 4-40 X 3/16" PPZ
6 55.3303.0004 3 EA WASHER, #4 LOCK INT. TOOTH SS
1
2
3
4 (x2)
5 (x3)
6 (x3)
