Vari Lite VL3000 - Transfer Fan Assembly

HEAD ASSEMBLY : TRANSFER FAN ASSEMBLY
02.9678.0010 F 99
3
Transfer Fan Assembly
21.9678.0678.01 Rev C (Spot)
21.9678.0678.02 Rev C (Wash)
Refer to Figure 3-16

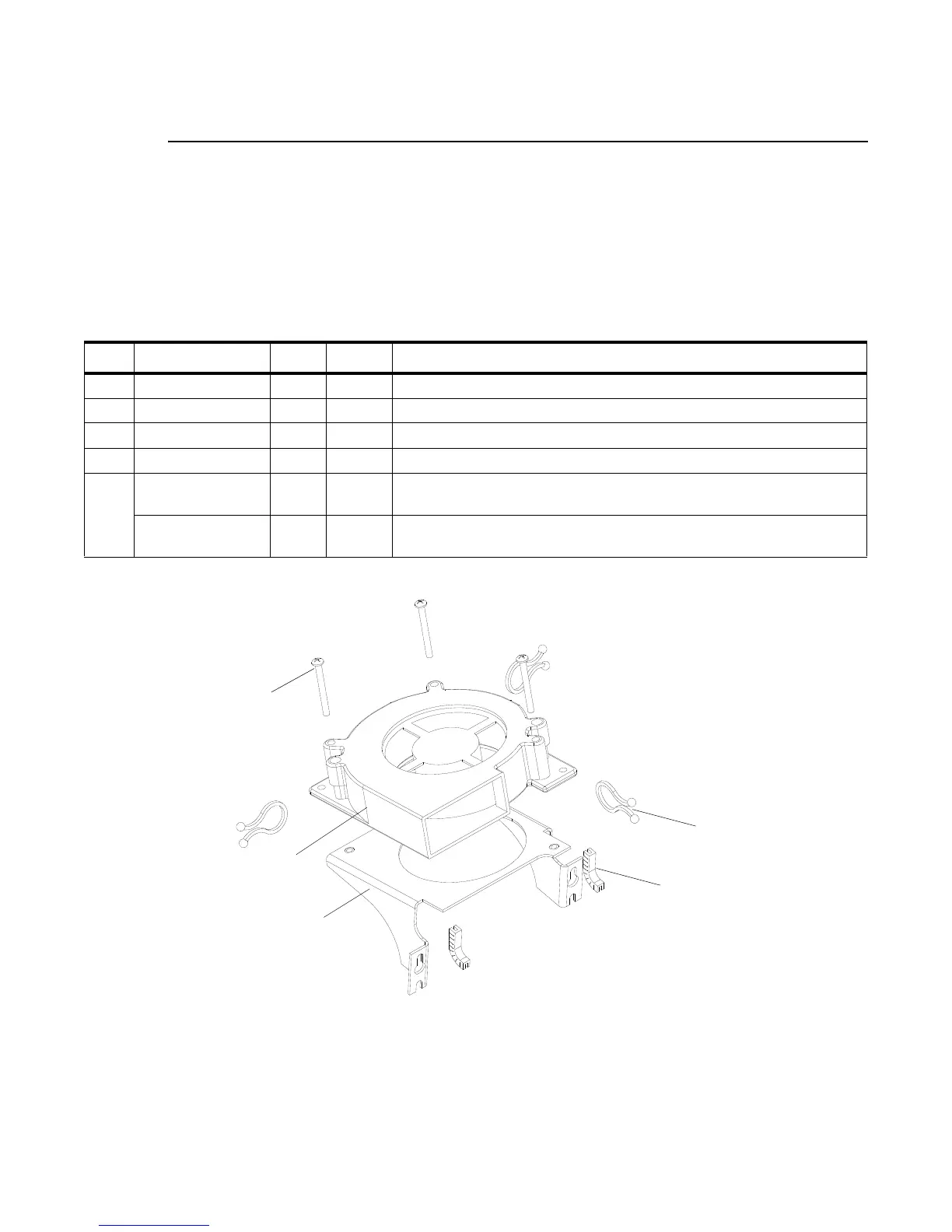

Figure 3-16: Transfer Fan Assembly
No. Item Qty. UM. Description
1 10.9678.0679 1 EA TRANSFER FAN TRAY
2 23.9678.0695 1 EA FAN ASSY, TRANSFER
3 53.5506.1375 3 EA SCREW, 6-32 X 1-3/8"LG PPB
4 55.6543.0001 2.12 FT GROMMET STRIP, SERRATED POLYETHYLENE
5 55.6769.0004 3 EA TWIST-LOK 0.55" ID NOM WHT 85 C MAX FLAME RET (added 11-11-03)
(Spot Only)
55.6769.0004 2 EA TWIST-LOK 0.55" ID NOM WHT 85 C MAX FLAME RET (added 11-11-03)
(Wash Only)
1
2
3 (x3)
4
5 (x3 Spot / x2 Wash)
