Vari Lite VL3000 - Ignitor to Lamp Socket Cable Assembly

VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
188 02.9678.0010 F
Ignitor to Lamp Socket Cable Assembly
25.9678.0789 Rev B
Refer to Figure 3-89.

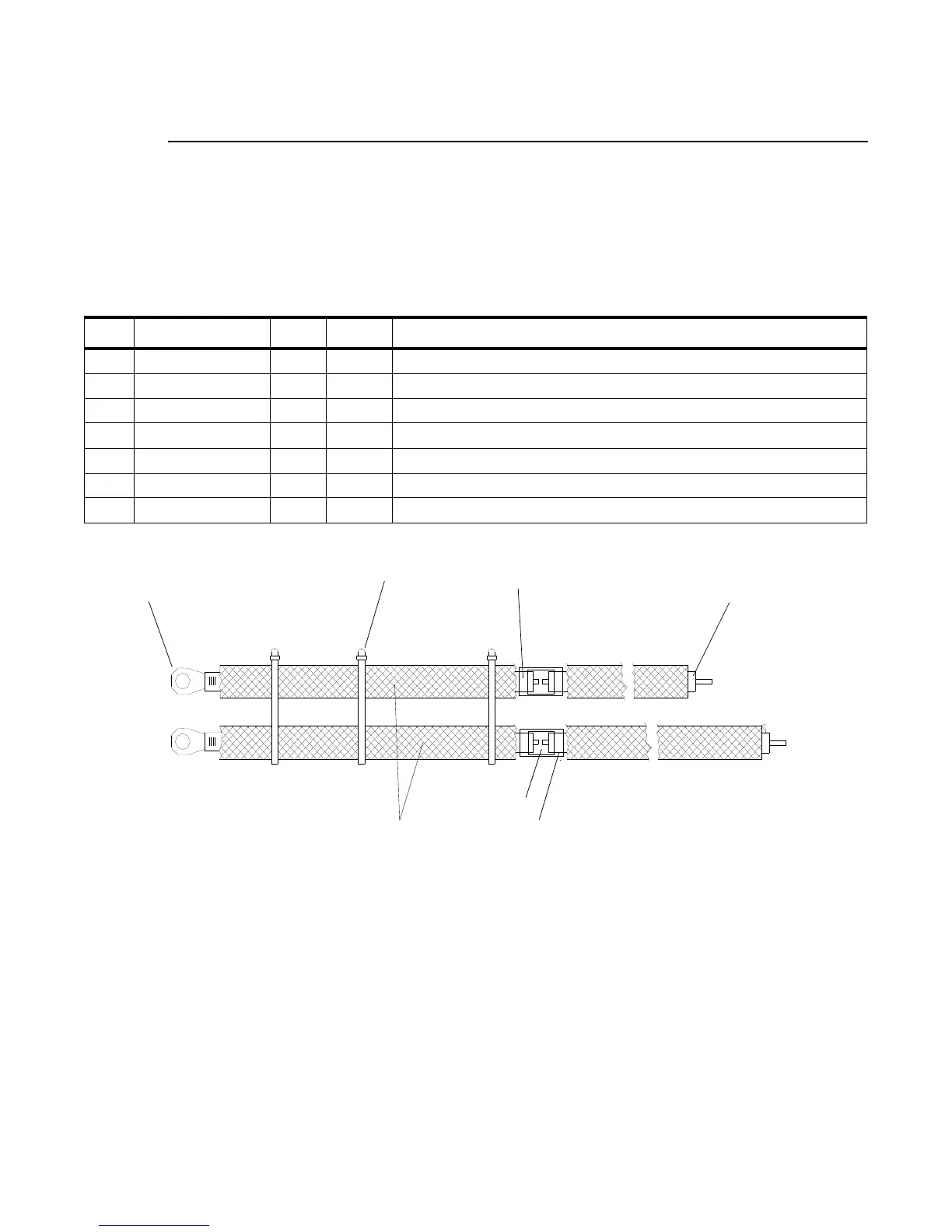

Figure 3-89: Ignitor to Lamp Socket Cable Assembly
No. Item Qty. UM. Description
1 52.8231.0005 2 EA TERM, RING #6 BLUE 16-14 AWG REEL PIDG
2 52.8274.1614 2 EA CONN, BUTT SPLICE, 16-14 PIDG
3 55.2186.0001 3 EA CABLE TIE, .10"WD 4.00"LG SMALL
4 55.2200.0003 .33 FT HEAT SHRINK
5 55.2260.0133 6.83 FT SLEEVING, FIBERGLASS .133" ID
6 73.7100.0001 2.84 FT WIRE, 16AWG 20KVDC 41/32 STRD 200C SILICONE
7 73.7190.0001 3.66 FT WIRE, 250C DEG C
6
2 (x2)
1 (x2)
From Ignitor Output To Arc Lamp Socket
4
3
5
7
