VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
26 02.9678.0010 F
Strobe Assembly Replacement
VL Part No: 22.9678.0403
Repair/Replacement Procedure
Step 1. Disconnect luminaire AC input cable from power source.
Step 2. Remove top head cover by loosening four 1/4 turn captive stud connectors.
Step 3. Remove Color/Dimmer/Strobe Assembly. See “Color/Dimmer/Strobe Assembly” on
page 25.
Step 4. Disconnect wiring harness from interconnect PCB.
Step 5. Remove interconnect PCB by pushing top of PCB off studs.
Step 6. Loosen four captive screws (two per clamp). (Note: Do NOT remove long phillips head
screw, it serves as a handle.)
Step 7. Pull assembly straight up and out of luminaire.
Step 8. Disconnect wiring from strobe motors.
Step 9. Cut wire tie holding wiring harness to strobe assembly.
Step 10. Remove four 6-32 KEPS nuts and lift strobe assembly straight up.
Step 11. Replace assembly by performing steps 2 through 10 in reverse order.

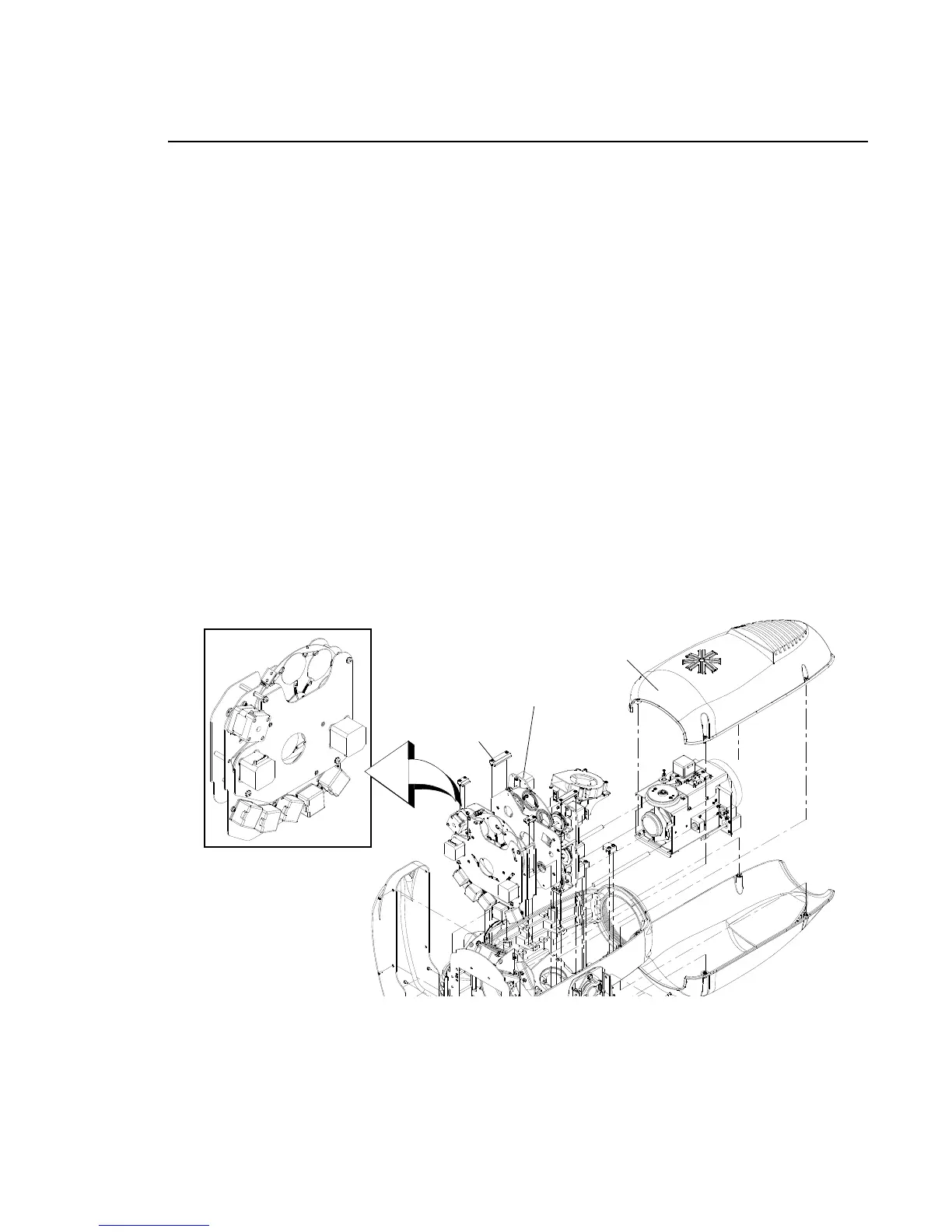

Figure 2-8: VL3000 Color/Dimmer/Strobe Assembly Replacement
Color/Dimmer/Strobe Assembly
Top Head Cover
Clamp
To Next Page
