Vari Lite VL3000 - Relay to Ignitor Cable Assembly

CABLE ASSEMBLIES : RELAY TO IGNITOR CABLE ASSEMBLY
02.9678.0010 F 179
3
Relay to Ignitor Cable Assembly
25.9661.1526 Rev C
Refer to Figure 3-80.

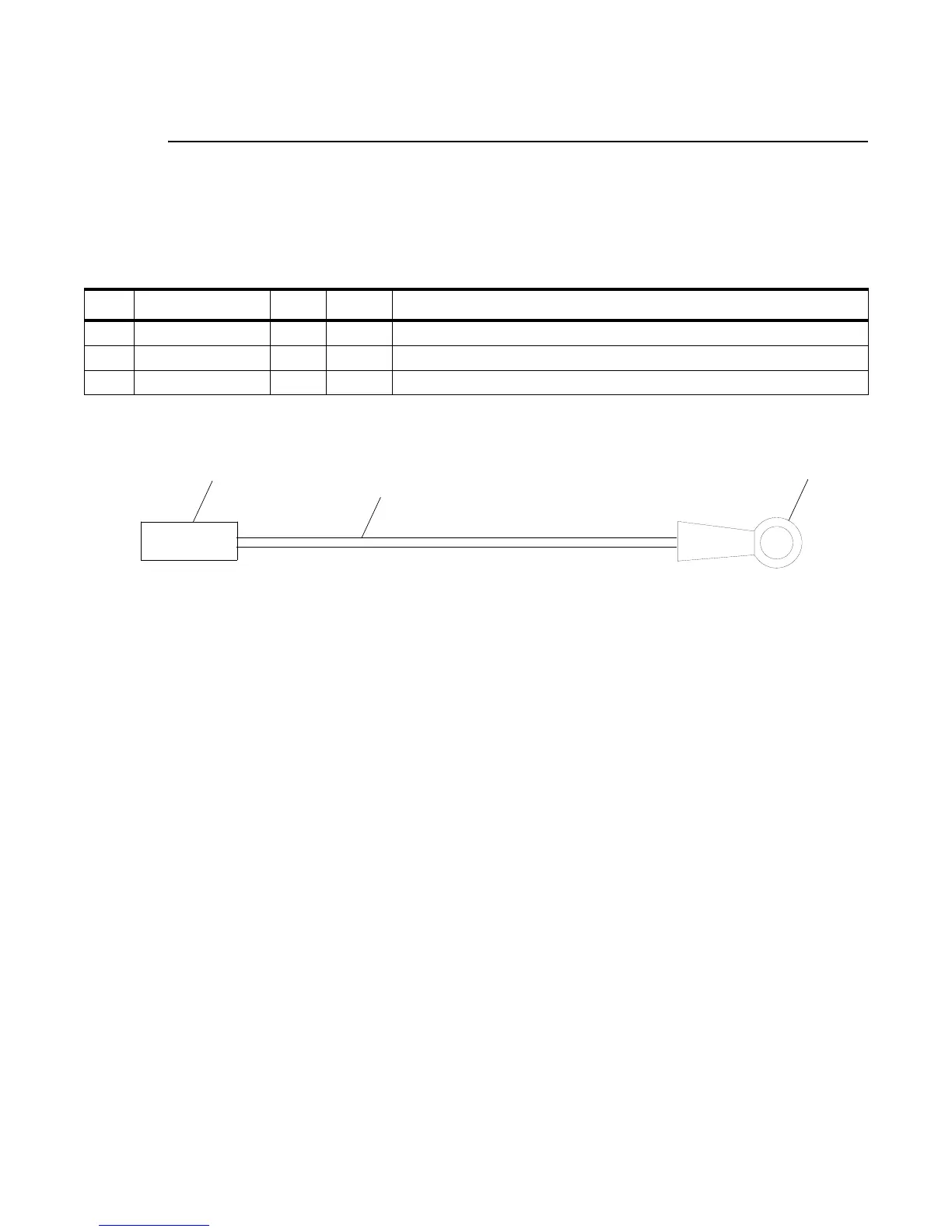

Figure 3-80: Ignitor to Relay Cable Assembly
No. Item Qty. UM. Description
1 52.8231.0005 1 EA TERM, RING #6 BLUE 16-14 AWG REEL PIDG (changed 03-23-06)
2 52.8312.0001 1 EA RECP, FASTON 1/4" 18-14 AWG INSULATED VO
3 73.7101.0009 0.42
FT
WIRE, 14 AWG 15KV 150C SILICONE 41/30 STRANDING
2
3
1
