VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
114 02.9678.0010 F
Interconnect Light Shield Assembly
22.9678.1115 Rev D
Refer to Figure 3-28

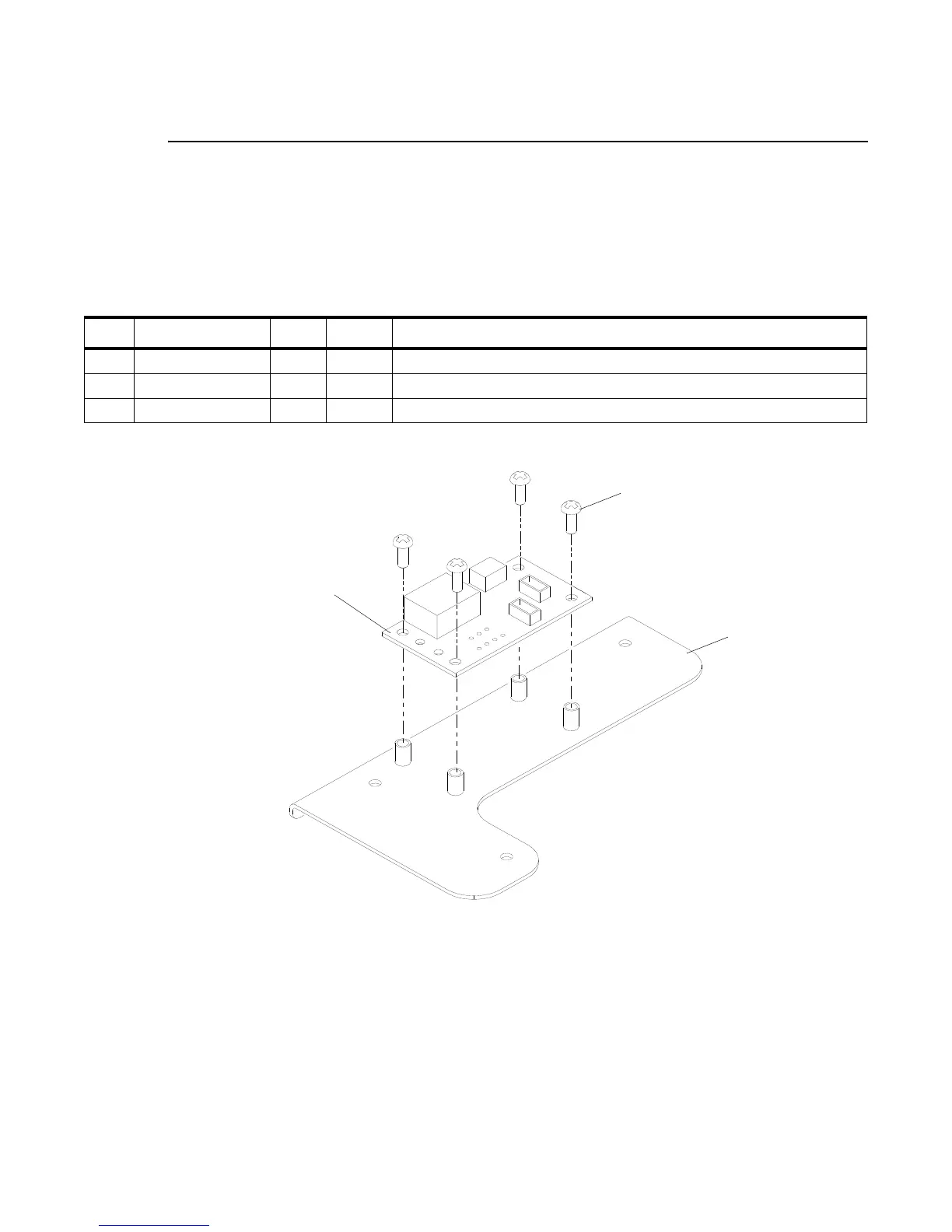

Figure 3-28: Interconnect Light Shield Assembly
No. Item Qty. UM. Description
1 10.9678.1114 1 EA SHIELD, INTERCONNECT MOUNT/LIGHT
2 24.9678.3116 1 EA PCB ASSY, ZOOM INTERCONNECT (changed 03-07-06)
3 53.6558.0009 4 EA SCREW, 6-32 X 3/8" PPZ SEMS
1
2
3 (x4)
