VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
108 02.9678.0010 F
Group 3 Lens Assembly
22.9678.0183 Rev 0
Refer to Figure 3-22

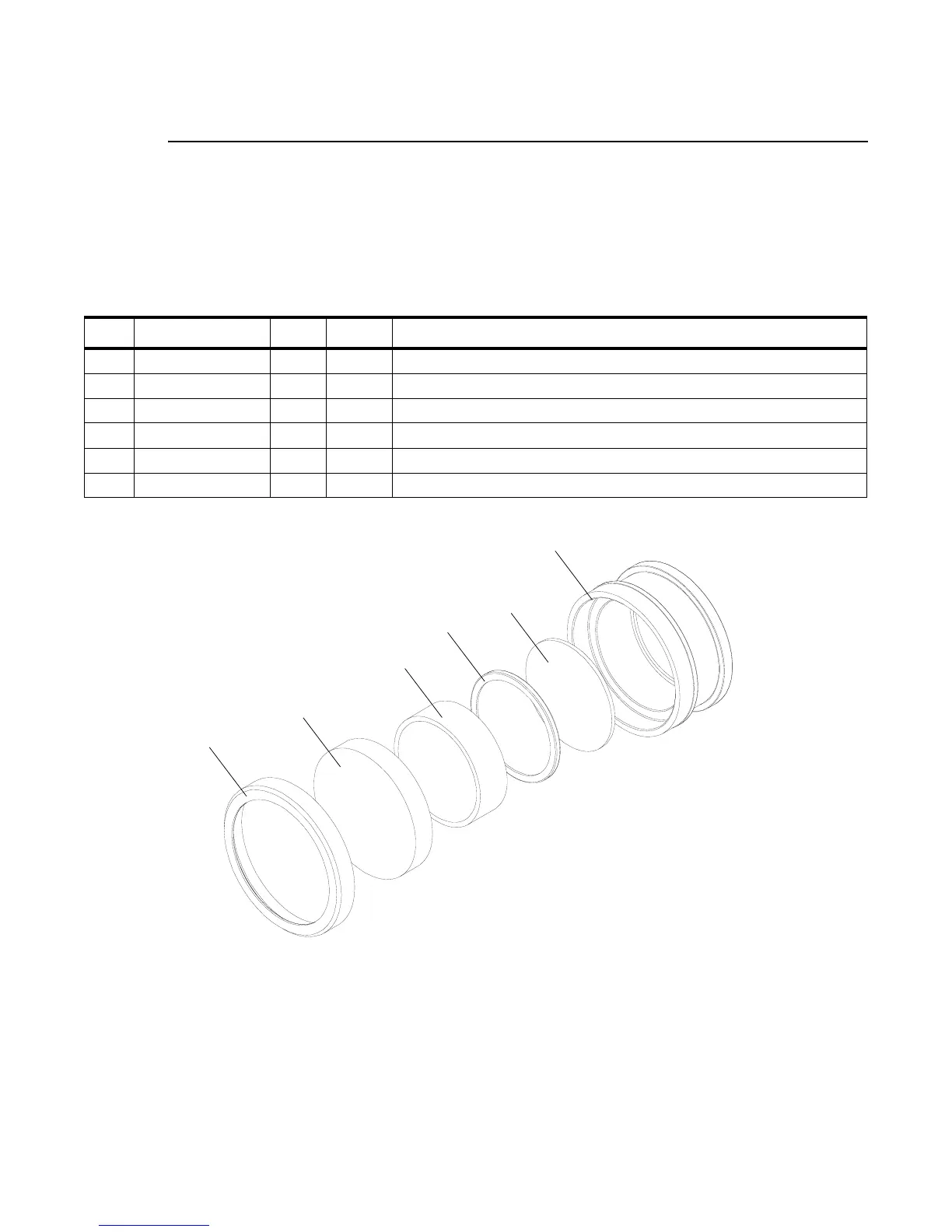

Figure 3-22: Group 3 Lens Assembly
No. Item Qty. UM. Description
1 10.9678.0193 1 EA LENS RETAINER, GROUP 3
2 10.9678.0192 1 EA SPACER, LENS 8-9/G3
3 10.9678.0191 1 EA LENS BARREL, GROUP 3
4 42.9678.0140 1 EA LENS, #10
5 42.9678.0139 1 EA LENS, #9
6 42.9678.0138 1 EA LENS, #8
1
2
3
4
5
6
