HEAD ASSEMBLY : UV FILTER BULKHEAD ASSEMBLY
02.9678.0010 F 83
3
UV Filter Bulkhead Assembly
22.9678.0639 Rev C
22.9678.0617 Rev A (VL3000 Quiet)
Refer to Figure 3-5

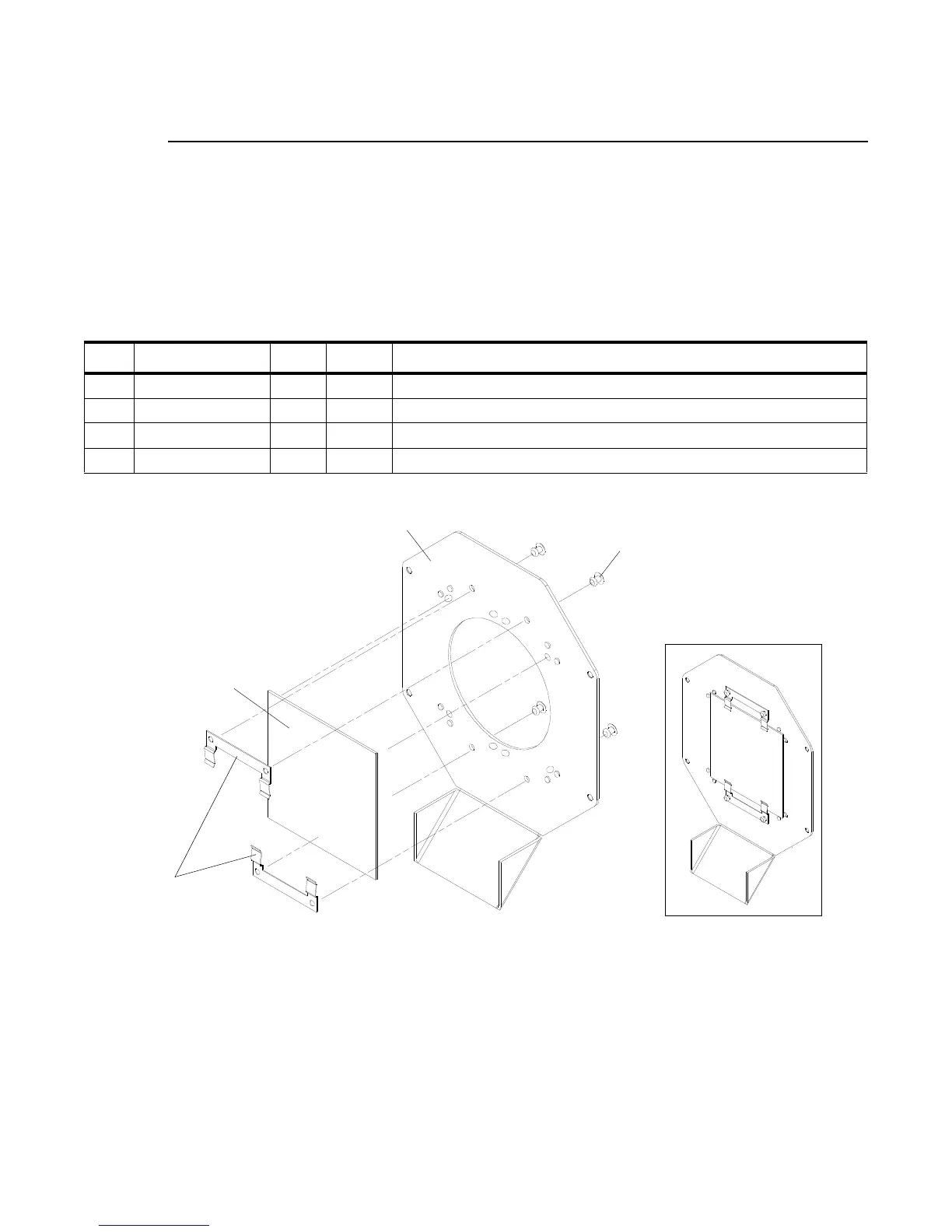

Figure 3-5: UV Filter Bulkhead Assembly
No. Item Qty. UM. Description
1 10.9678.0634 1 EA UV FILTER BULKHEAD
2 10.9678.0648 2 EA CLIP, UV GLASS
3 41.9678.0608 1 EA UV/IR FILTER, 3.00" X 3.00" (added 01-08-04)
4 53.6530.0002 4 EA RIVET, 1/8 OD POP,.063-.125 GRIP, ALUM
1
2
3
4 (x4)
Install glass with marks
indicating IR coating side of
filter facing up and located
outside of circular cutout in
bulkhead (Item 1).
